PS1625QXF

PS1625QX - 2x16 Audio Pass-Through, 1RU, DB25

Continue Shopping or Checkout

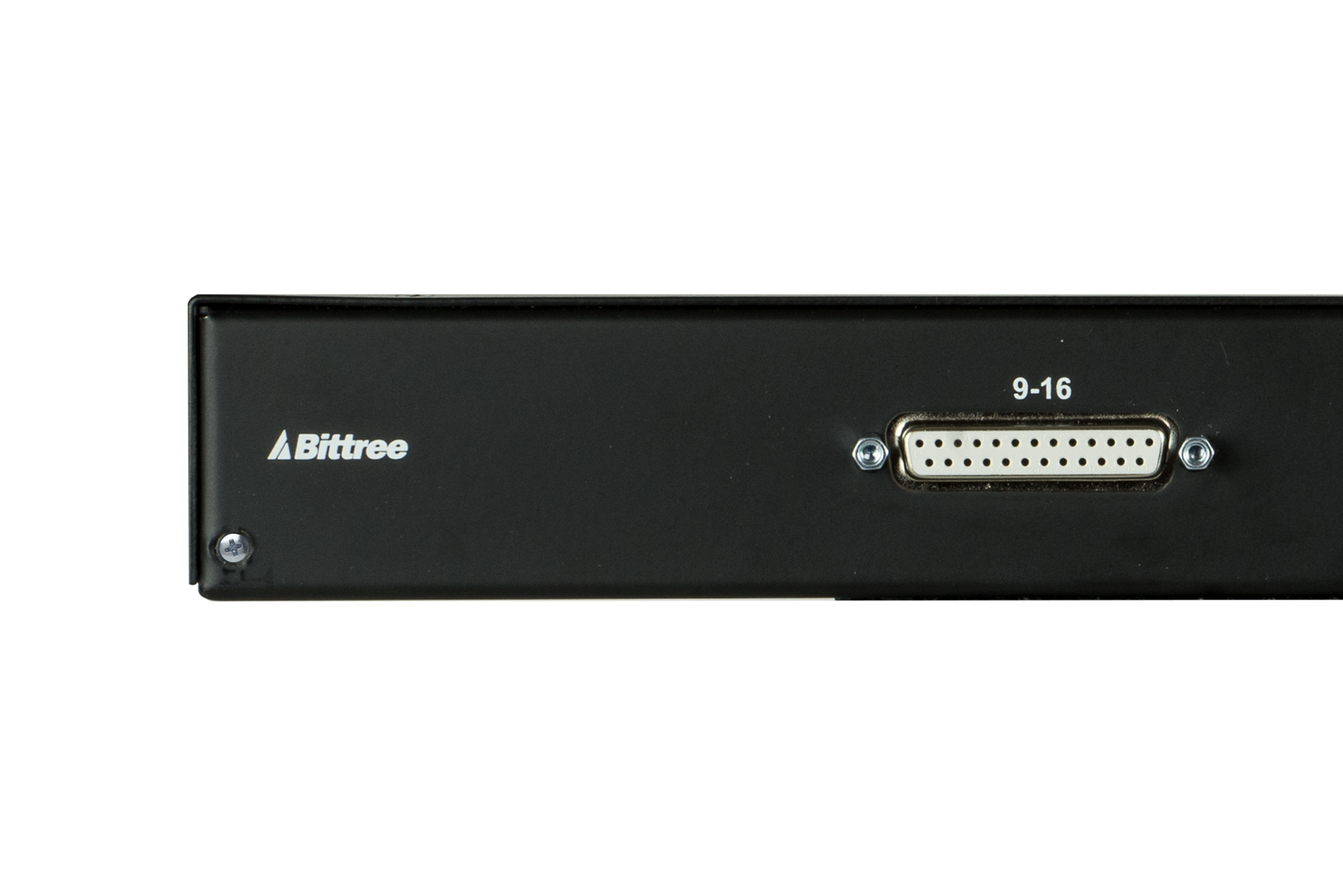

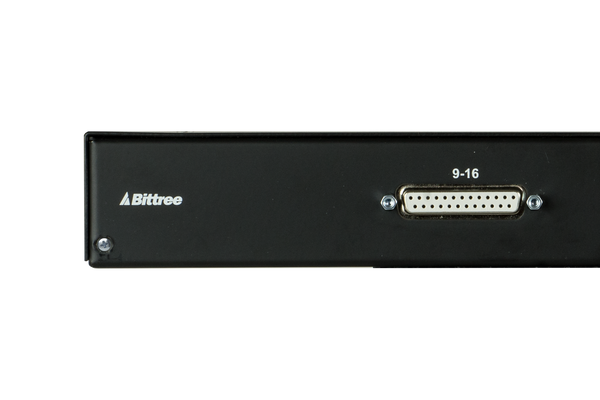

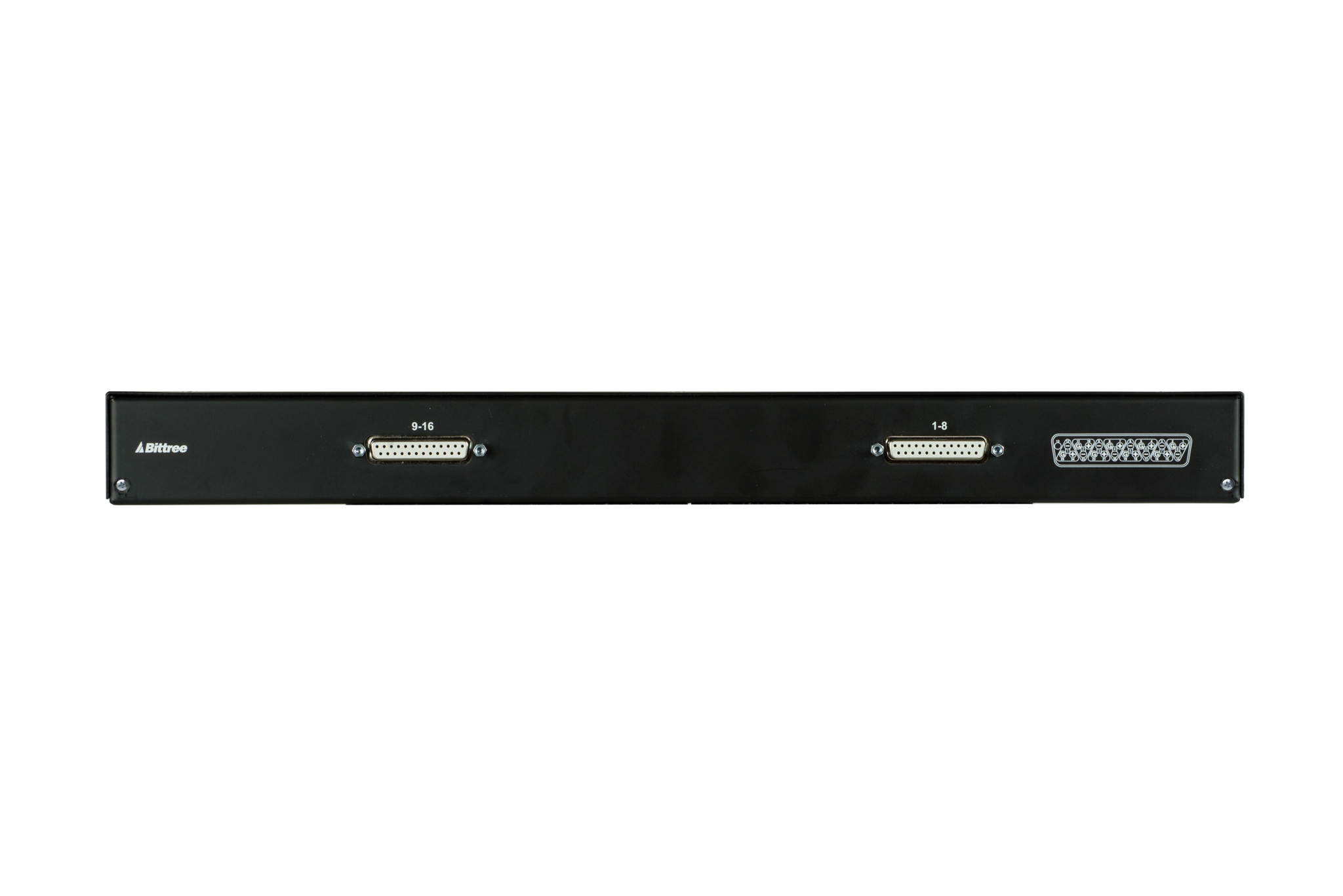

  • Bittree® ProStudio Audio Pass-Through, 1x16, 1 RU, DB25 Rear Interface

    Product Features:
    • Bittree® Audio pass-through in 1 RU with 1x16 connector configuration
    • Panels come pre-populated with your choice of:

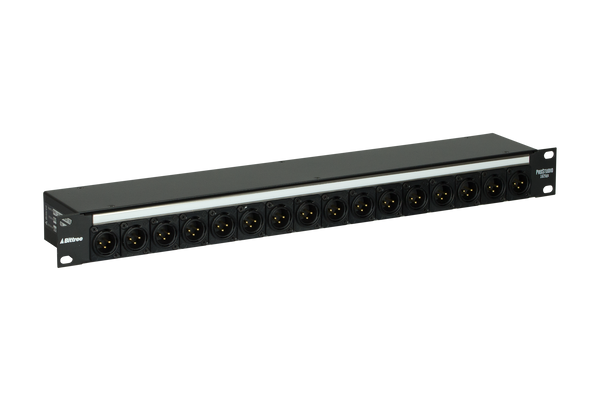

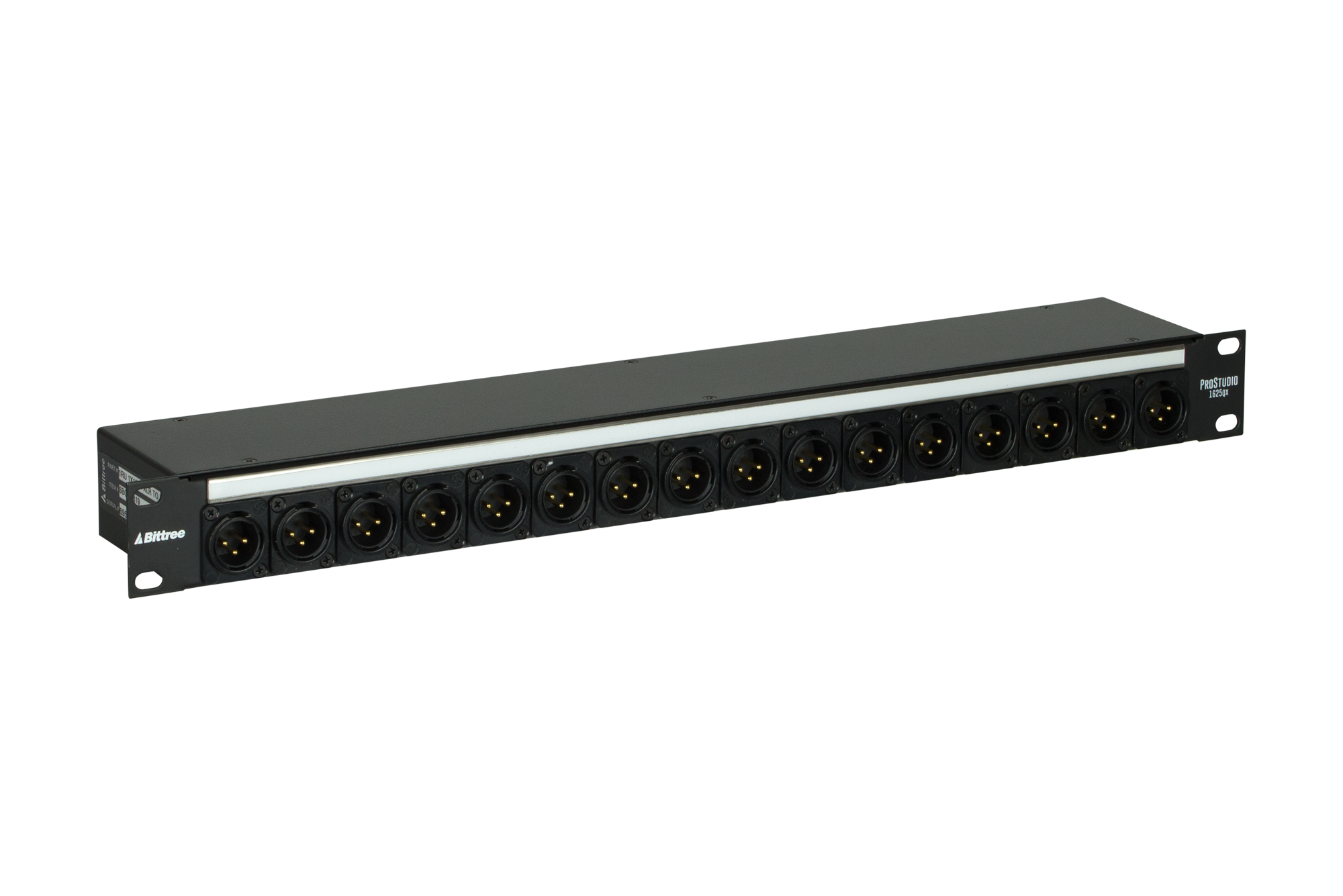

      - 16 male XLR connector modules

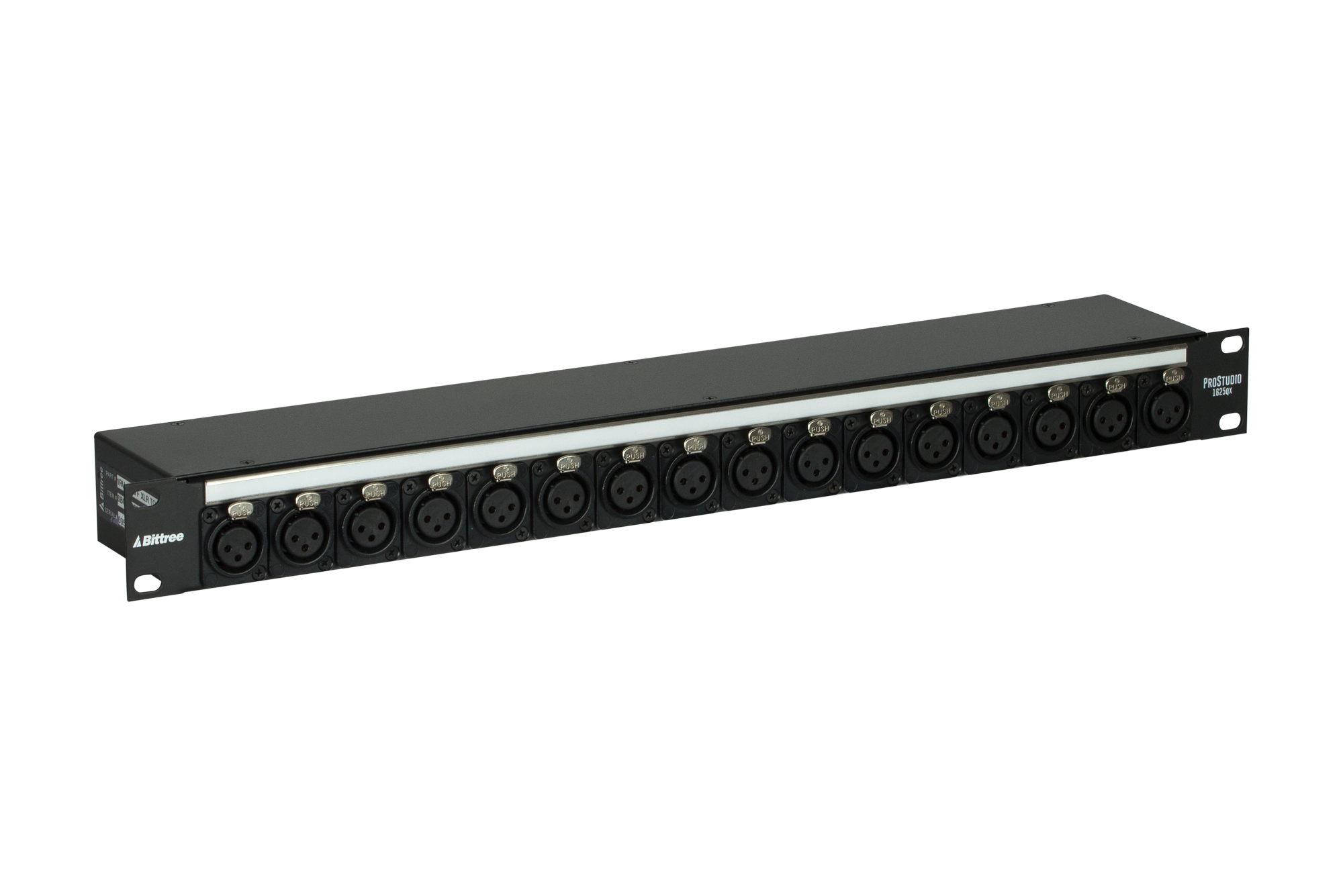

      - 16 female XLR connector modules
      - 8 male and 8 female XLR connector modules

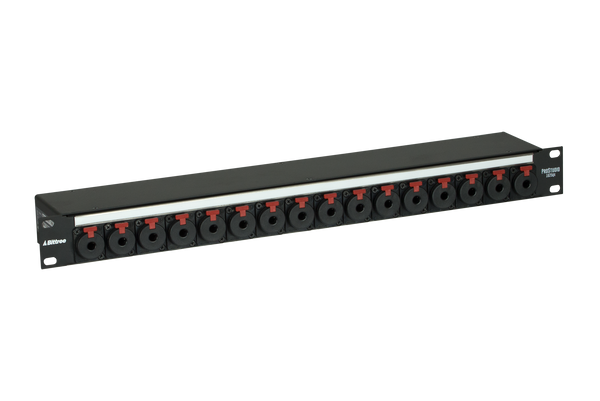

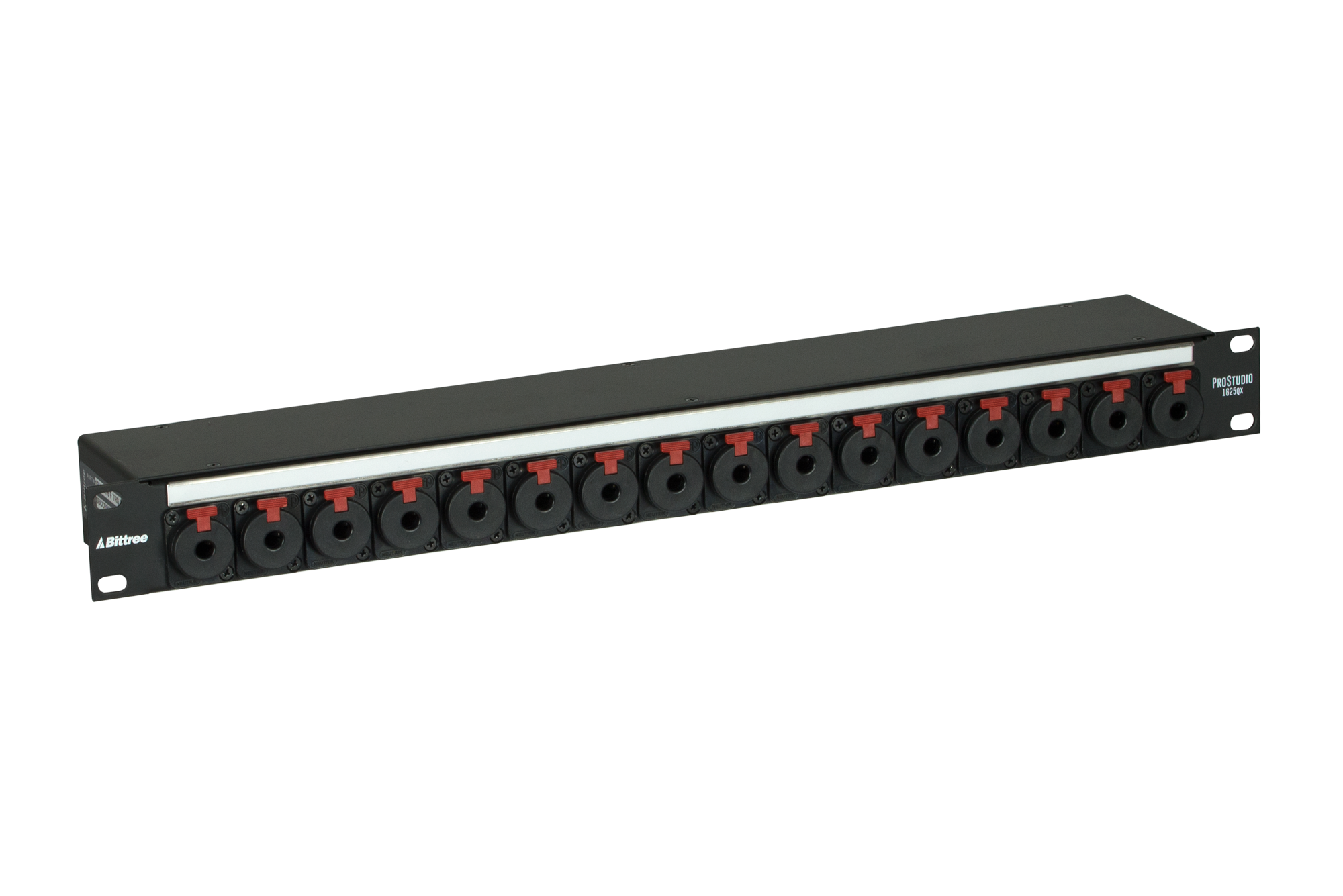

      - 16 female 1/4" TRS musician-type jacks
        (not compatible with b-gauge 1/4" long-frame patch cables)
      - custom connector configuration
        (contact us)
    • Digital AES wire used for internal wiring
    • Circuit paths are isolated from the chassis
    • 1 x DS380-10 designation strip

    Panel Features:
    • Formed aluminum front panel with a durable black powder-coat finish
    • Two piece fully enclosed "tub" style chassis, 3" (7.62 cm) deep
    • Top and sides can be removed easily for internal customization

    Compliance:
    • RoHS Compliance – See our RoHS compliance statement to learn more




  • Product Files:
    Designation Strip Template DOCX
    Technical Drawings:
    PS1625QXF DWG PDF
    PS1625QXM DWG PDF
    PS1625QXFM DWG PDF
    PS1625QXQ DWG PDF
    PS1625QXX DWG PDF
