SMPTE Camera Hybrid Patchbay

Continue Shopping or Checkout

  • Product Features:

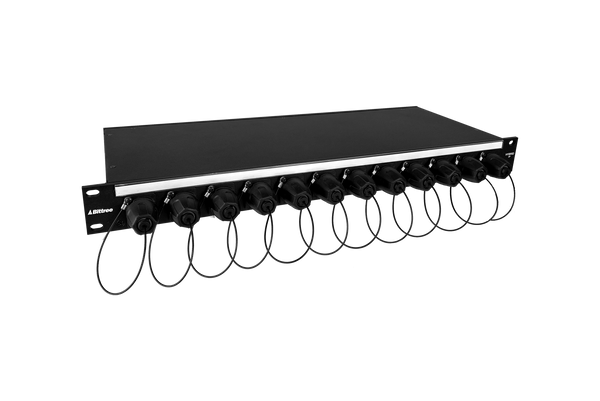

  • Bittree® SMPTE Camera Hybrid Patchbay

    SMPTE Camera Hybrid Patchbay Properties:
    • 12-position camera support in 1RU
    • Designed for OB production trucks, multi-studio, and stadium environments
    • Four large contacts to accommodate 2-16 AWG power conductors and 2-24 AWG AUX (data) conductors
    • 7 inch chasis depth
    • E3 connector rear interface
    • 2 Each Rear ST, SC, or LC Fiber and E3F Copper Connections Per Channel
    • Mating E3M's and Contacts
    • Front Patch Connections Mate With Bittree Spc Hybrid Smpte 311 Type Patchcords (sold separately)
    • Two fibers in the patch mating connectors are utilizing expanded beam technology requiring no routine maintenance
    • Patch mating connecters are IP67 rated for displacement of foreign material
    • The copper contacts are insulated from each other for complete isolation while mating
    • 6 inch rear tie bar included

    • Custom configurations available. Please contact the factory to discuss options
    • Front Panel Circuit Identification:
    - Silk screened numbering only

    • RoHS Compliance – See our RoHS compliance statement to learn more


  • Product Files:
    Circuit Schematics Coming Soon
    Designation Strip Template Coming Soon
    Technical Drawings:
    SPB12ST Coming Soon Coming Soon
