SBCCRB09
Male and Female XLR to E3 Bulkhead Patch Panel
$ 475.00
-
Bittree® Bulkhead Patch Panel, XLR to E3, 1x16, 1 RU
Product Features:

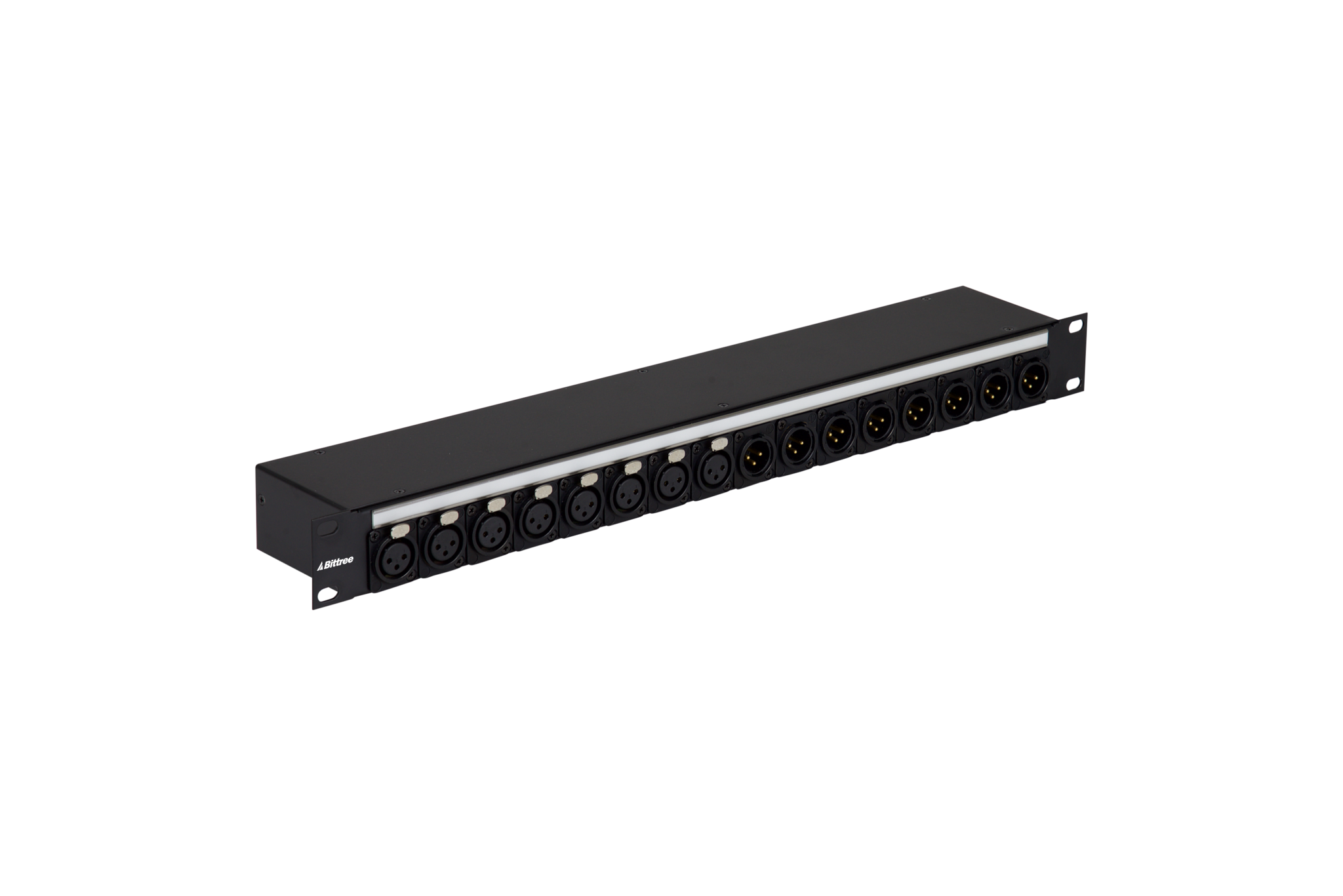

• Bittree® XLR to E3 bulkhead patch panel in 1 RU with 1x16 connector configuration

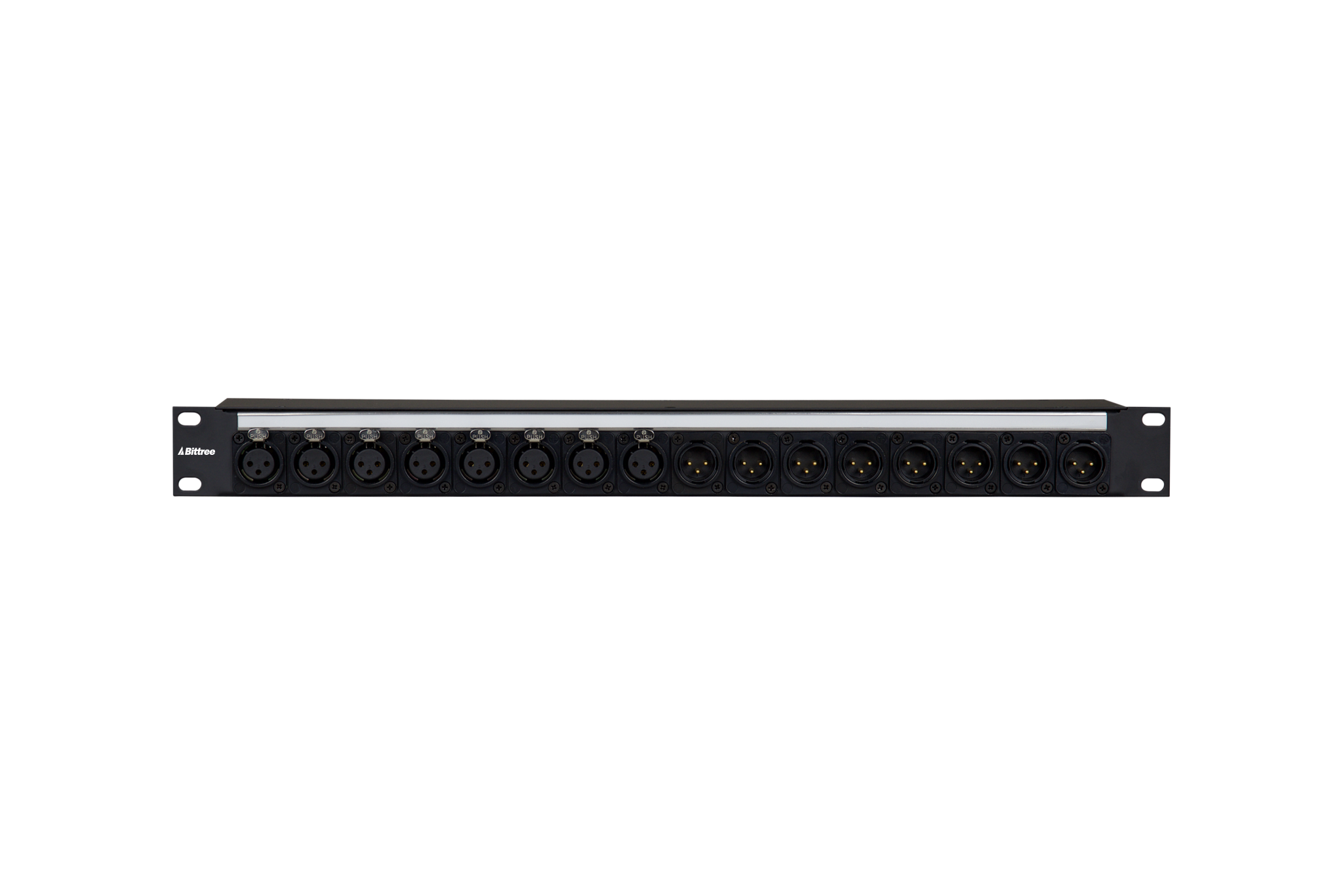

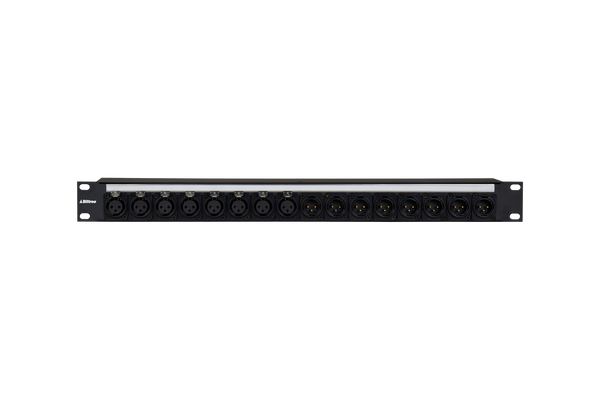

• Panels come pre-populated with 8 female and 8 male XLR to E3 connector modules
• Digital AES wire used for internal wiring
• Circuit paths are isolated from the chassis

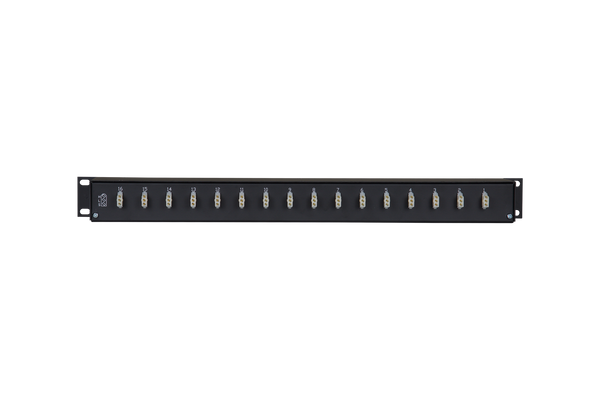

• 1-16 right-to-left numbering on rear panel for easy circuit identification
• 1 x DS380-10 designation strip
• Mating hardware included:

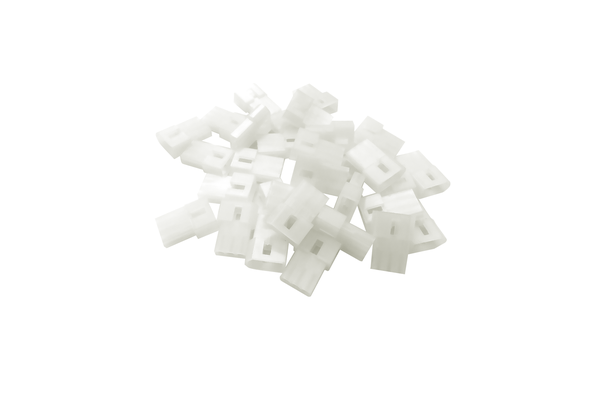

- 16 x E3M connector housings (3-pin male)

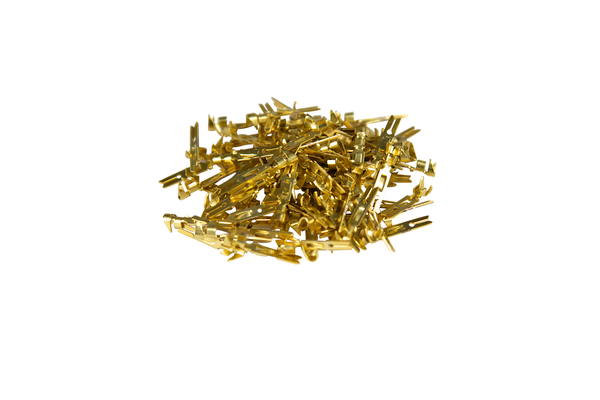

- 48 x EPIN crimp contacts (gold-plated)

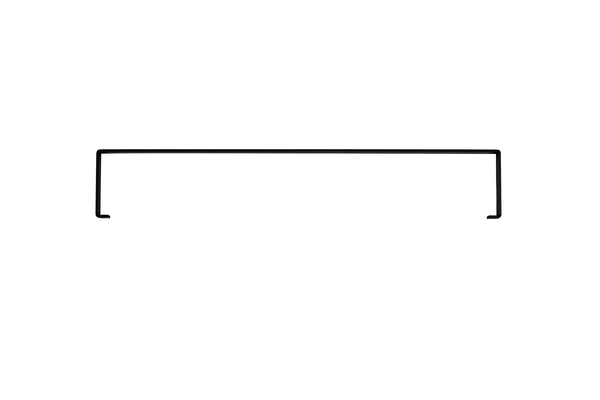

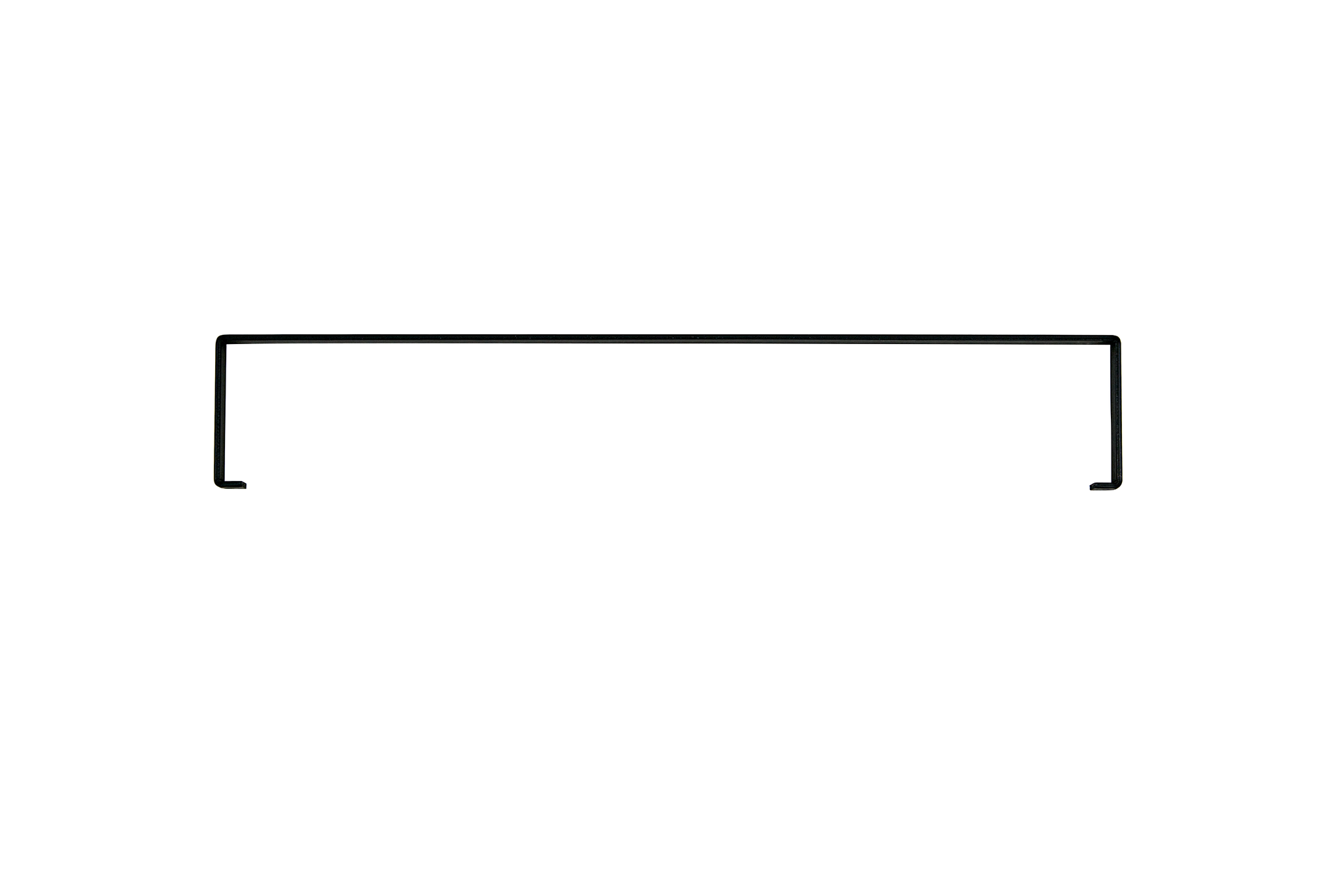

• 3" (7.62 cm) deep removable rear lacing bar included
- Alternative 6" (15.24 cm) deep lacing bar available; please make a request at checkout
Panel Features:
• Formed aluminum front panel with a durable black powder-coat finish
• Two piece fully enclosed "tub" style chassis, 3" (7.62 cm) deep
• Top and sides can be removed easily for internal customization
Compliance:
-
| Product Files: |
| Designation Strip Template |
DOCX |
| Technical Drawings: |
| SBCCRB09 |
DWG |
PDF |
