Standard WECO, Component 5-Wire (RGBHV), 2x5, 2 RU

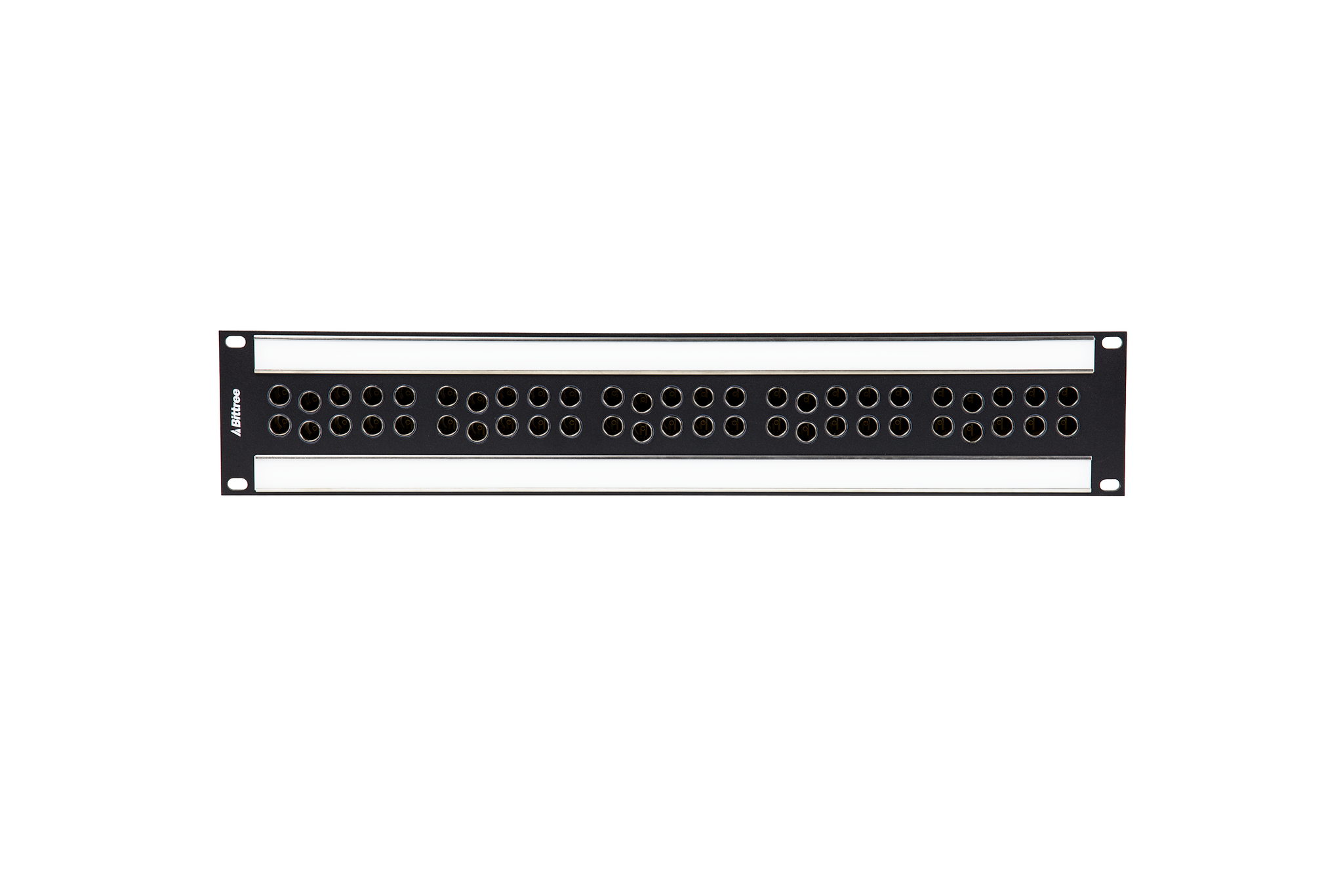

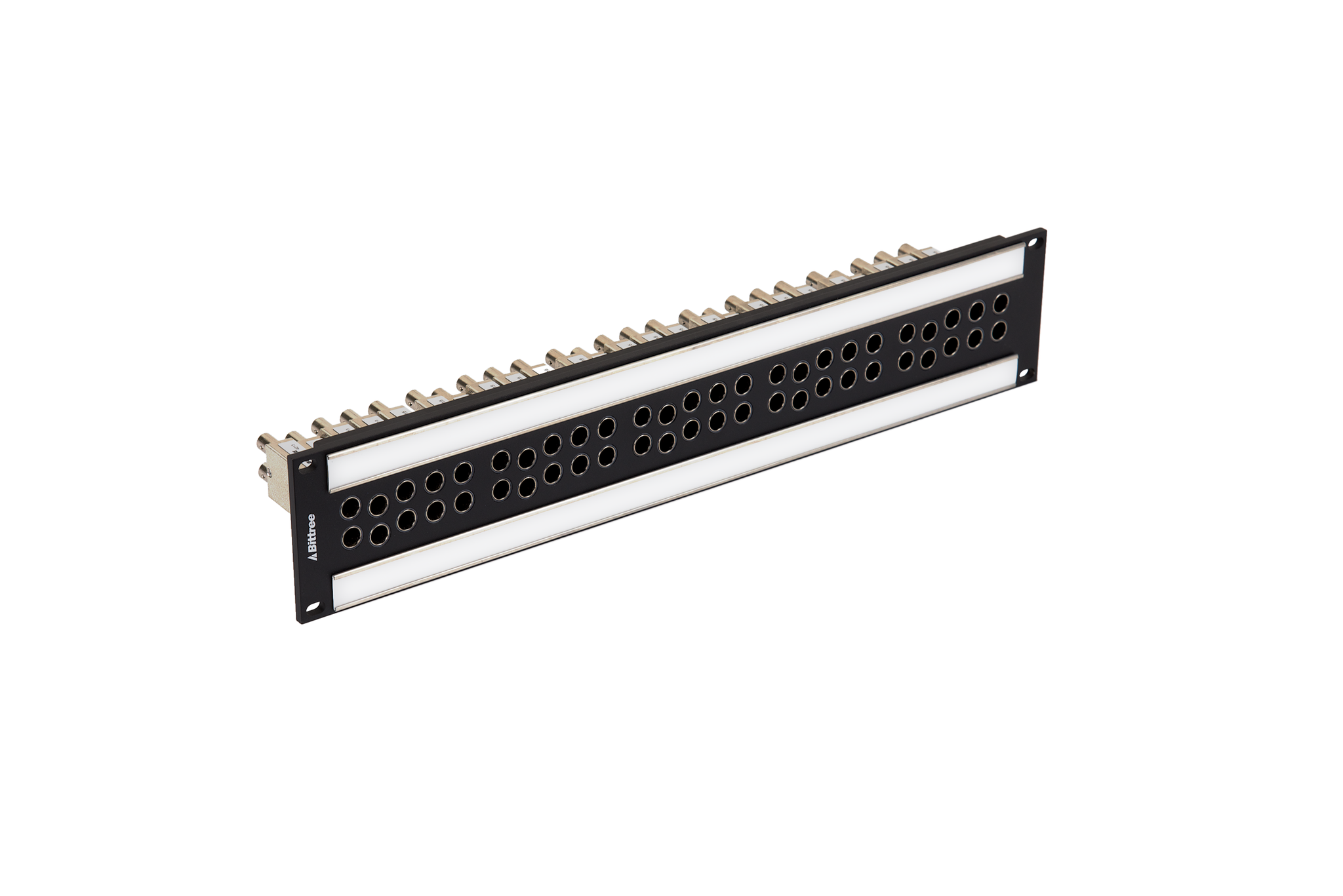

  • Bittree® Standard WECO Video Patchbay in 2 RU Height with 2x5 RGBHV Circuit Configuration

    Standard WECO Video Jack Properties:
    • High-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s and 3D applications
    • SMPTE 259M, 292M and 424M compliant
    • True 75 ohm impedance with low return loss

    Panel Features:

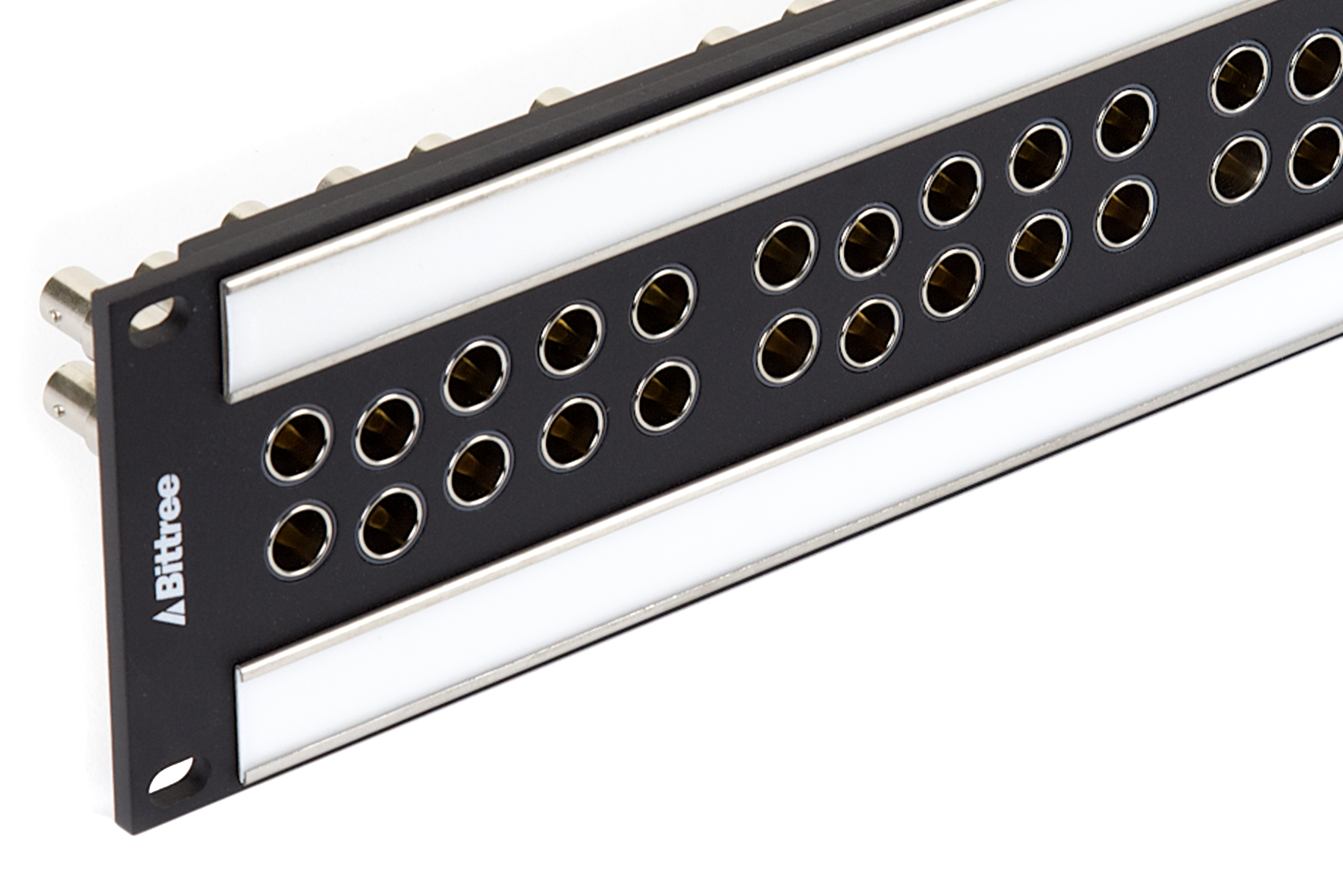

    • 3/16" (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
    • Offset chevron design ensures correct patch cable insertion

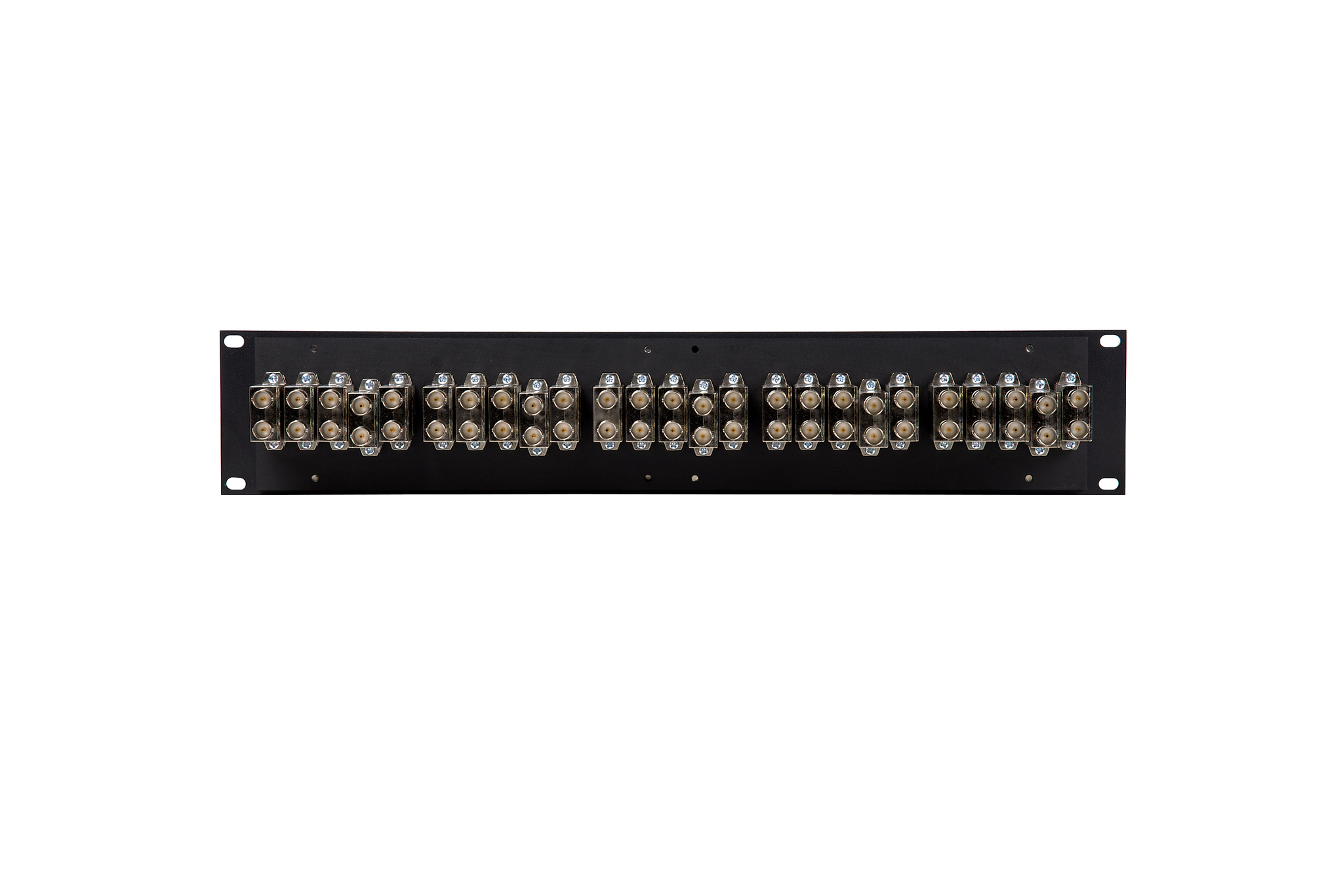

    • Rear-mounted jack modules
    • Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
    • 1 x DS800-15 Designation Strips:
    - Stainless-steel slider with white styrene and non-glare Lexan inserts

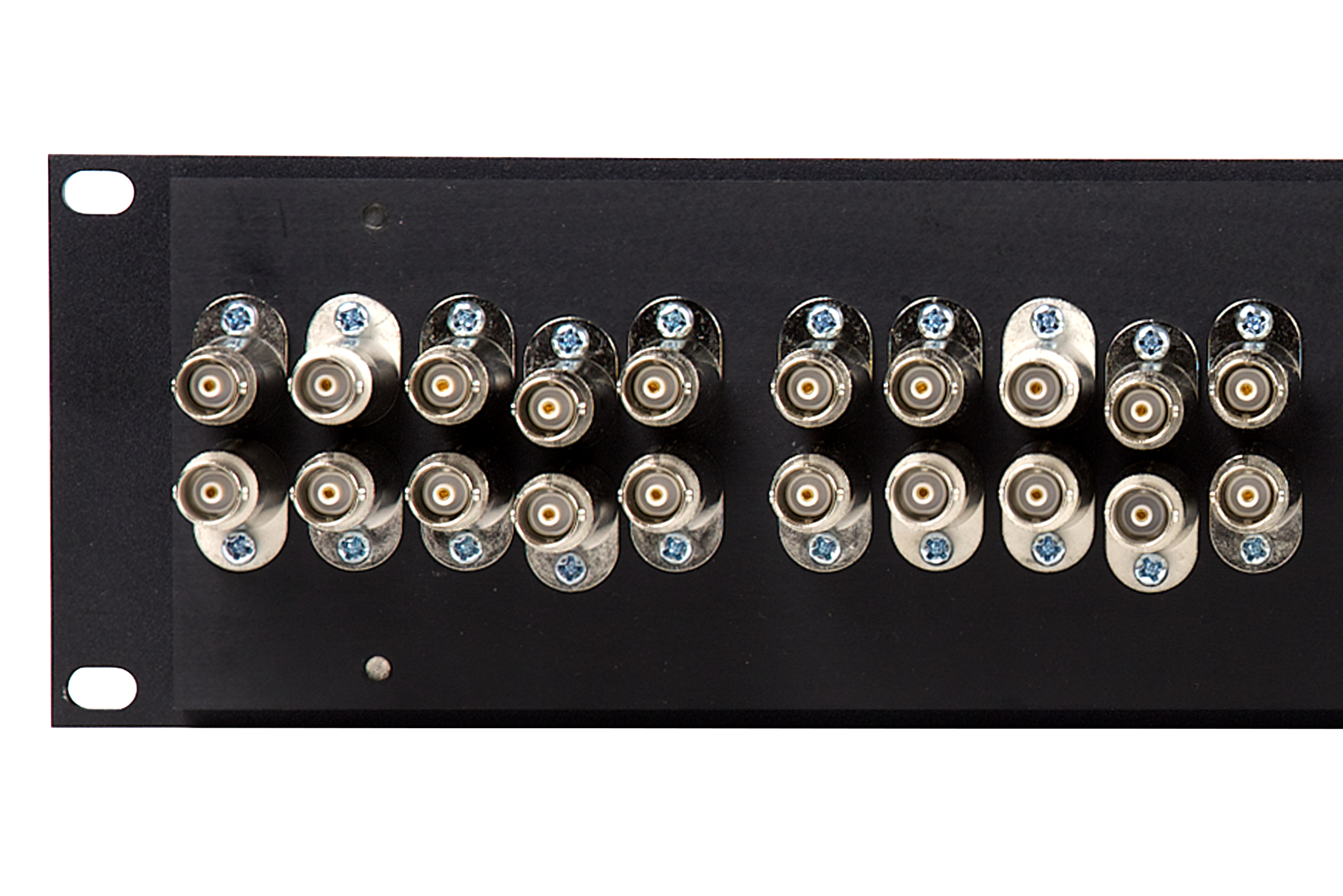

    • BNC Rear Interface

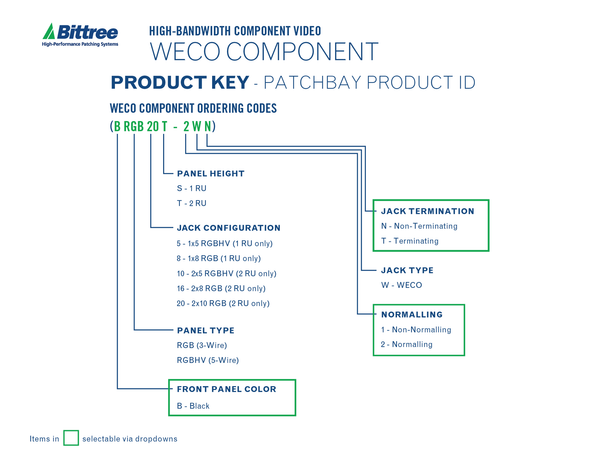

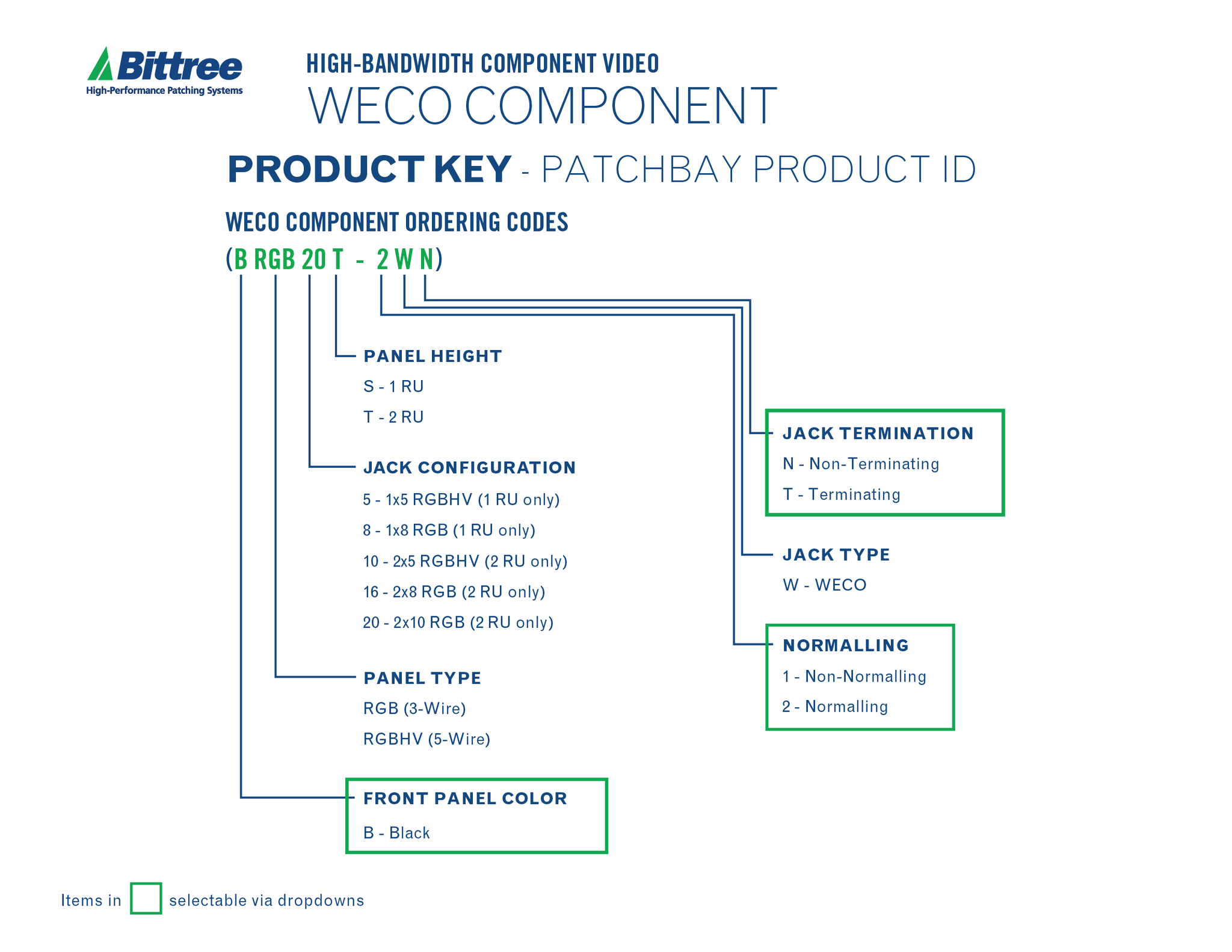

    • Standard WECO video jacks may be ordered in four different configurations:
    - Dual body, self-normalling with 75 ohm termination (2WTHD)
    - Dual body, self-normalling, non-terminating (2WNHD)
    - Dual body, non-normalling (straight-through) with 75 ohm termination (1WTHD)
    - Single body, non-normalling (straight-through), non-terminating (1WNHD)

    • RoHS Compliance – See our RoHS compliance statement to learn more



Category: Legacy

Type: Legacy
