Mini-WECO (Midsize), Component 5-Wire (RGBHV), 2x6, 2 RU

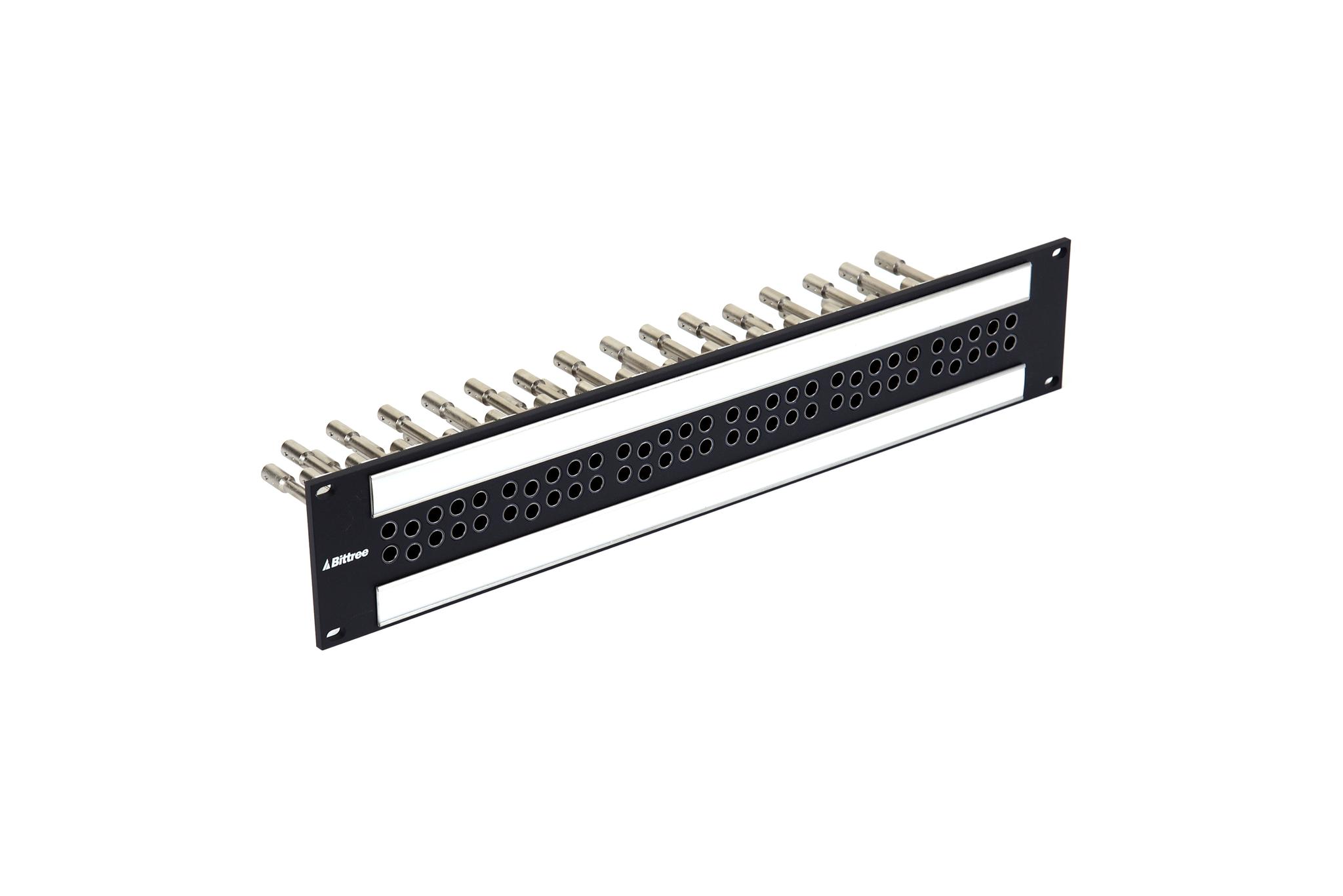

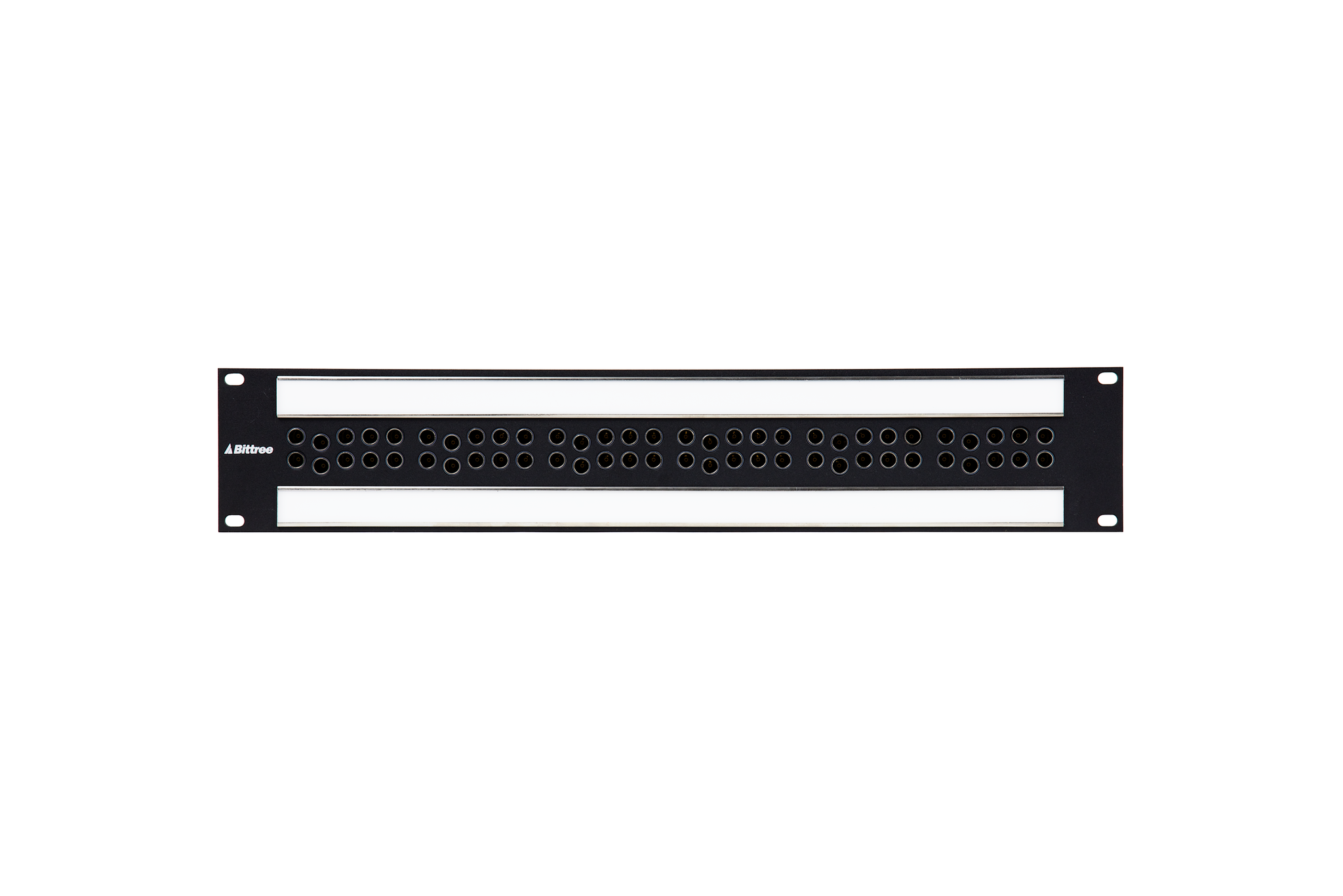

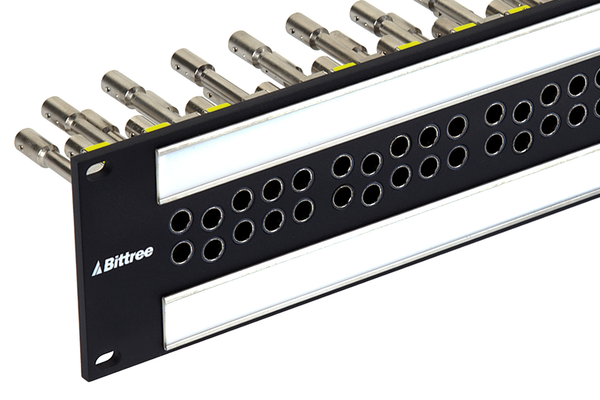

  • Bittree® Mini-WECO (Midsize) Video Patchbay in 2 RU Height with 2x6 RGBHV Circuit Configuration

    Mini-WECO Video Jack Properties:
    • High-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s and 3D applications
    • SMPTE 259M, 292M and 424M compliant
    • True 75 ohm impedance with low return loss

    Panel Features:
    • 3/16" (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish

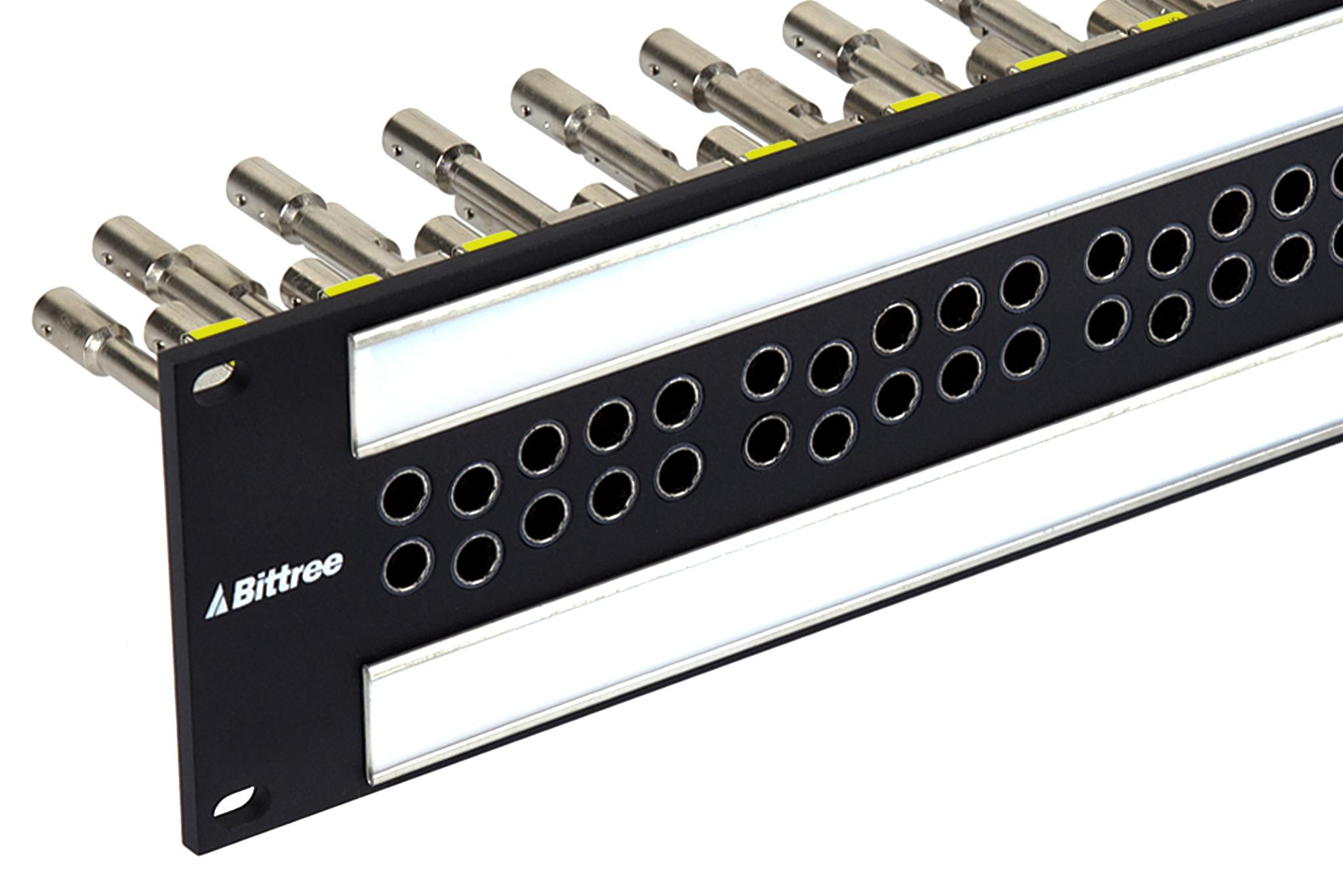

    • Offset chevron design ensures correct patch cable insertion
    • Rear-mounted jack modules
    • Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
    • 2 x DS870-10 Designation Strips:
    - Stainless-steel slider with white styrene and non-glare Lexan inserts

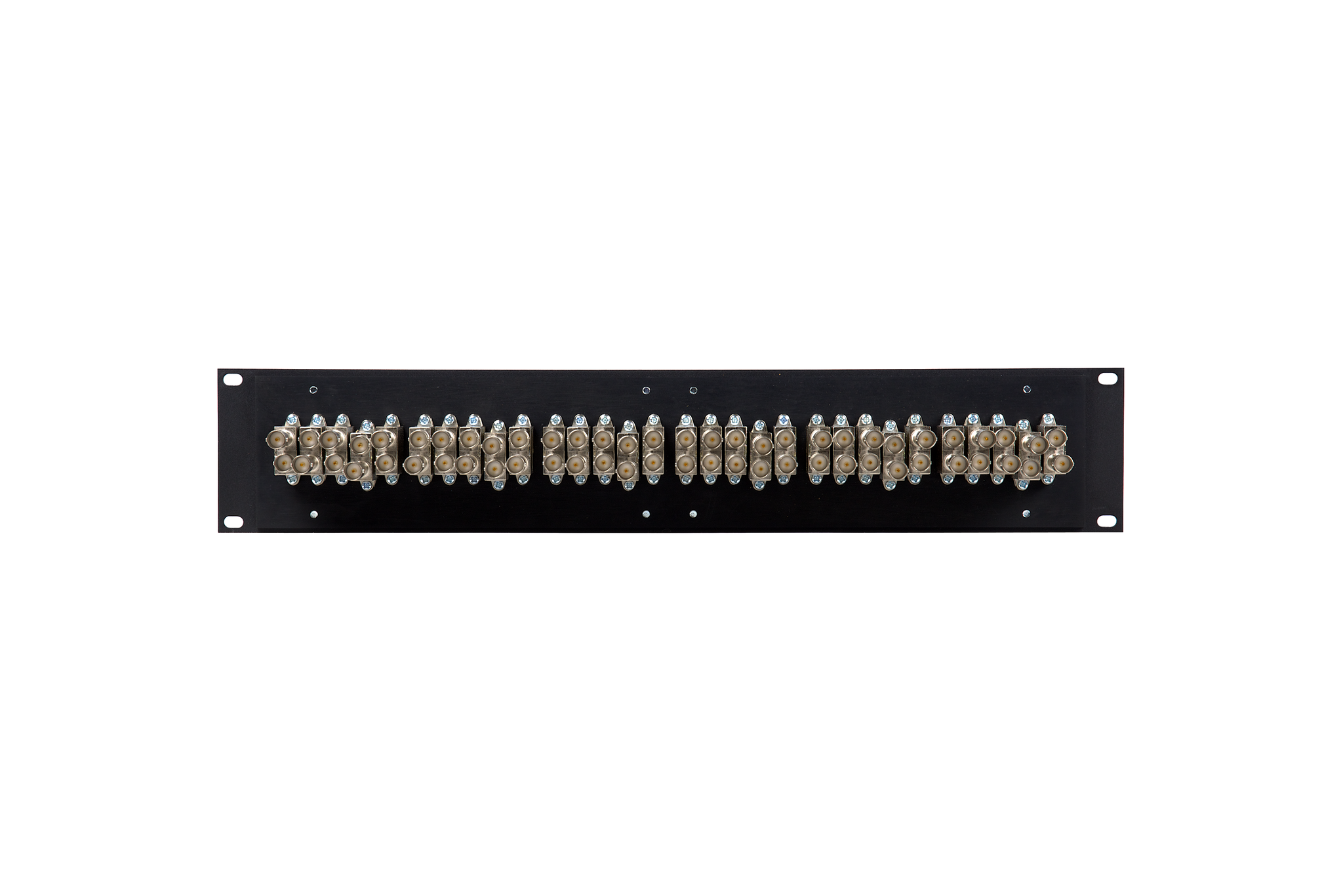

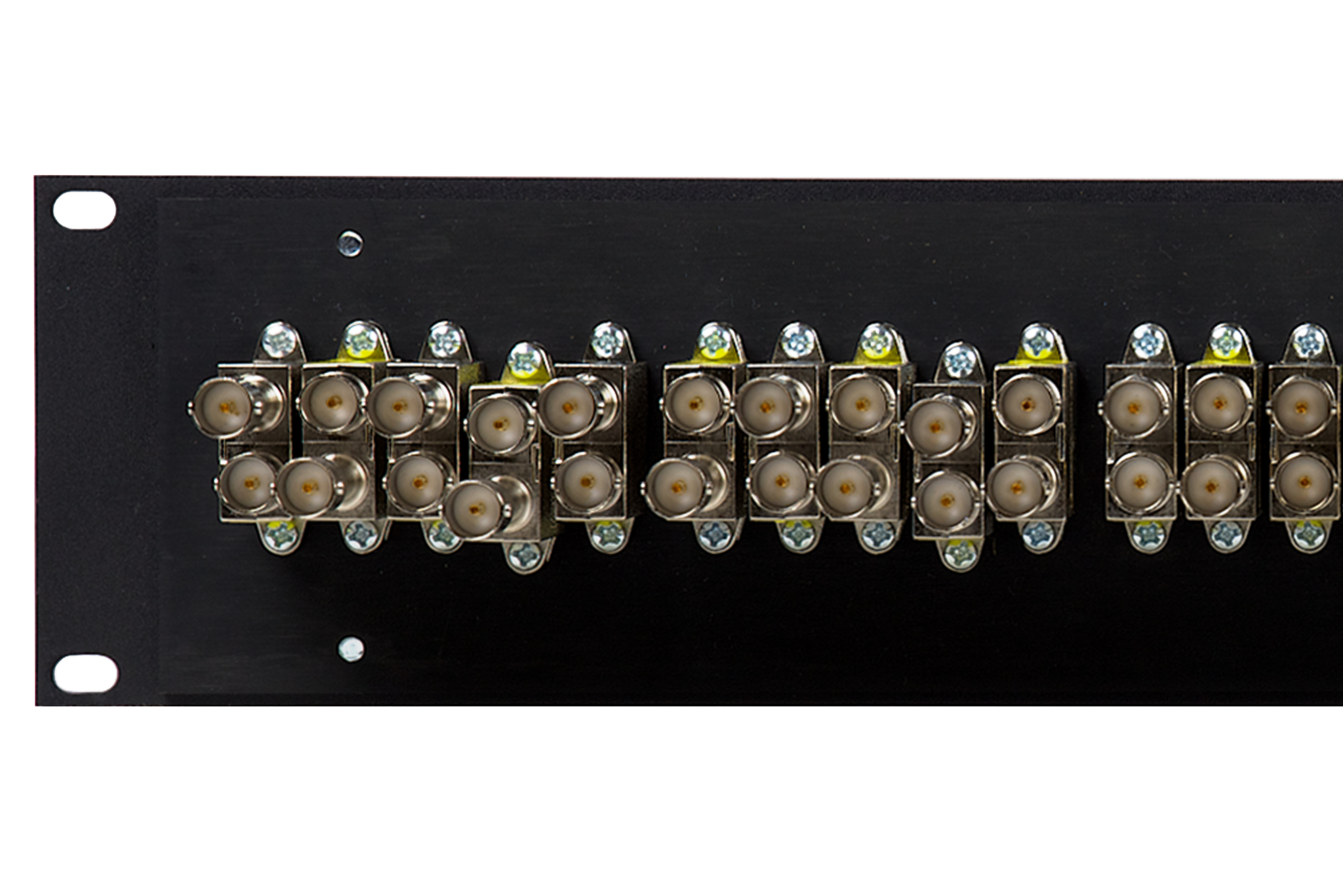

    • BNC Rear Interface

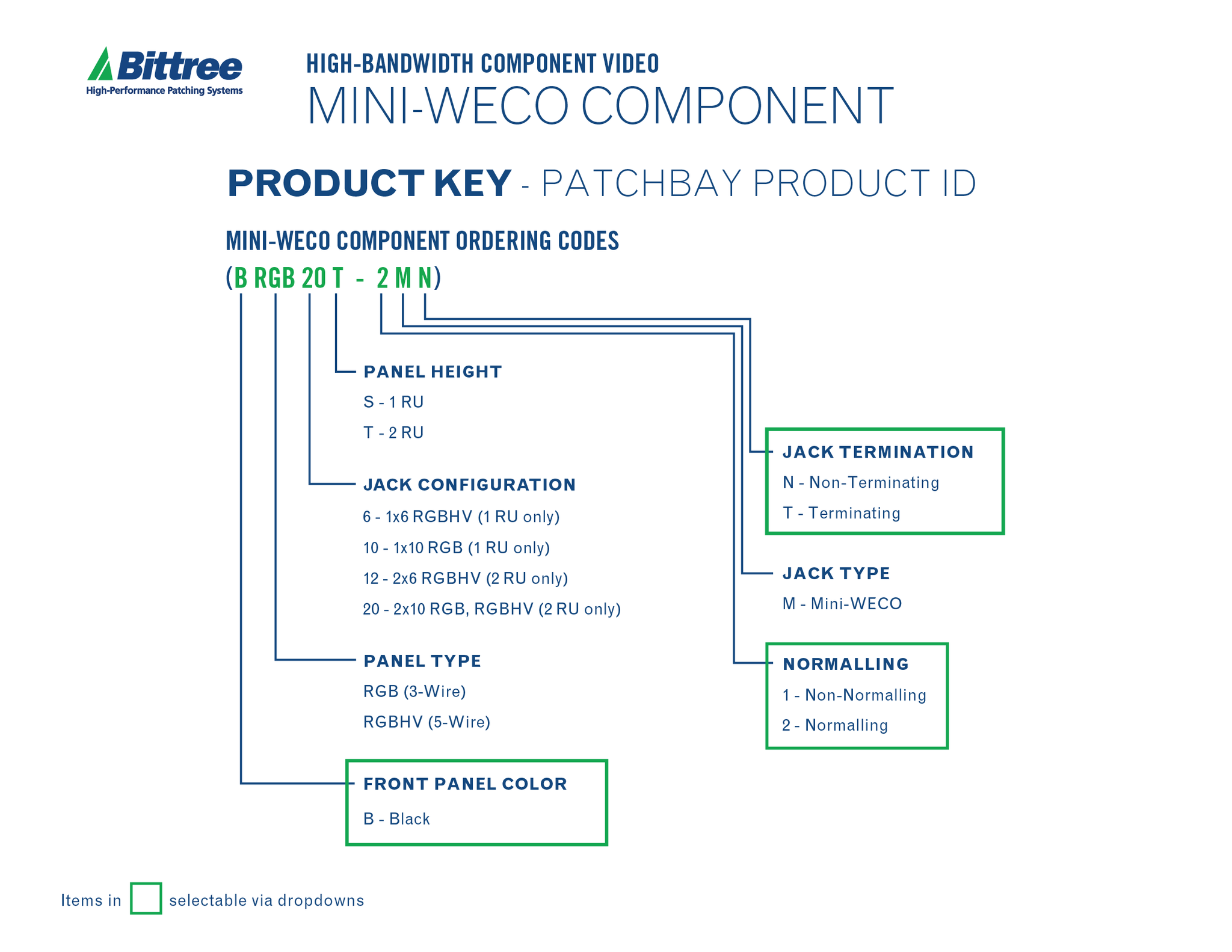

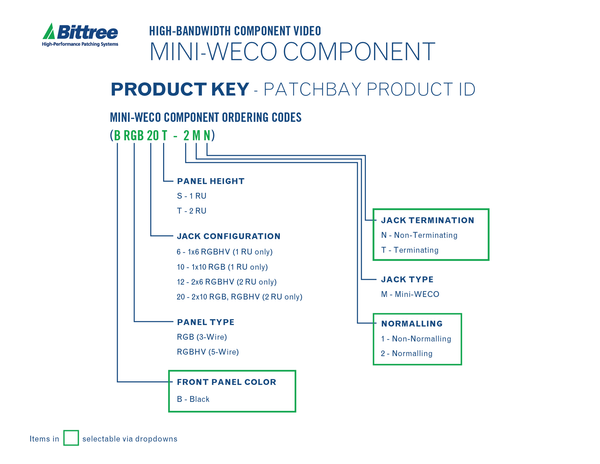

    • Mini-WECO video jacks may be ordered in four different configurations:
    - Dual body, self-normalling with 75 ohm termination (2MWTHD)
    - Dual body, self-normalling, non-terminating (2MWNHD)
    - Dual body, non-normalling (straight-through) with 75 ohm termination (1MWTHD)
    - Dual body, non-normalling (straight-through), non-terminating (1MWNHD)

    • RoHS Compliance – See our RoHS compliance statement to learn more
