  • Bittree® Standard WECO Video Patchbay in 1 RU Height with 2x24 Jack Configuration

    Standard WECO Video Jack Properties:
    • High-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s and 3D applications
    • SMPTE 259M, 292M and 424M compliant
    • True 75 ohm impedance with low return loss

    Panel Features:
    • 3/16" (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
    • Rear-mounted jack modules
    • Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
    • 2 x DS250-10 Designation Strips:
    - Extruded aluminum bars with clear plastic snap-over caps

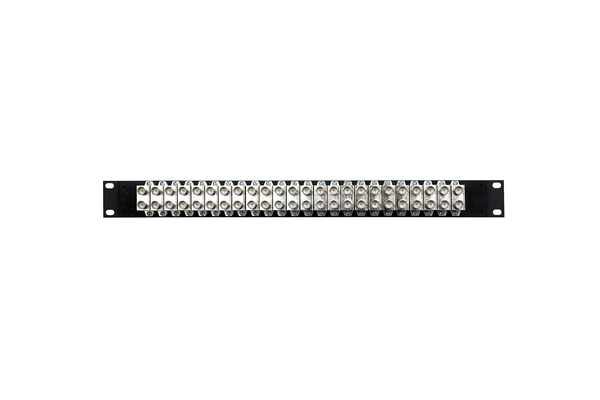

    • BNC Rear Interface

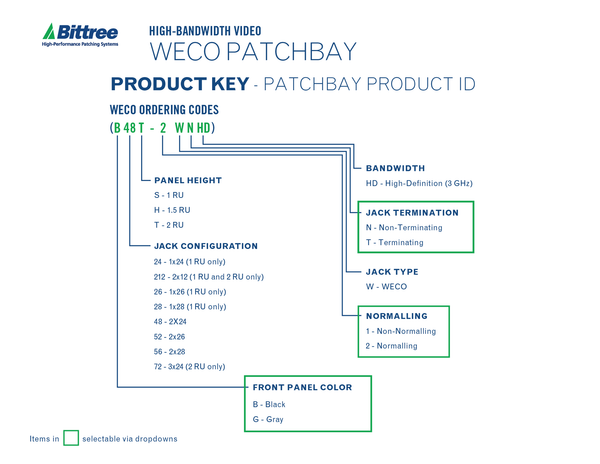

    • Standard WECO video jacks may be ordered in four different configurations:
    - Dual body, self-normalling with 75 ohm termination (2WTHD)
    - Dual body, self-normalling, non-terminating (2WNHD)

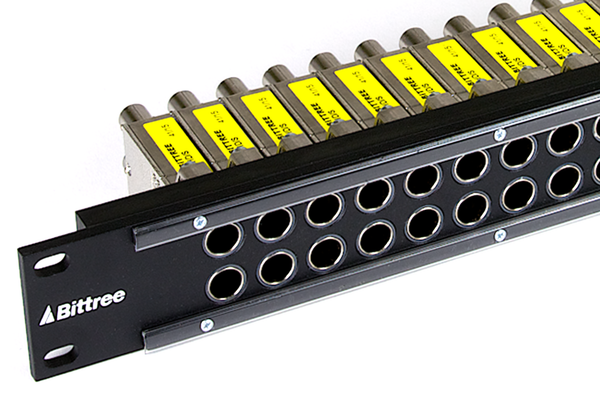

    - Dual body, non-normalling (straight-through) with 75 ohm termination (1WTHD)

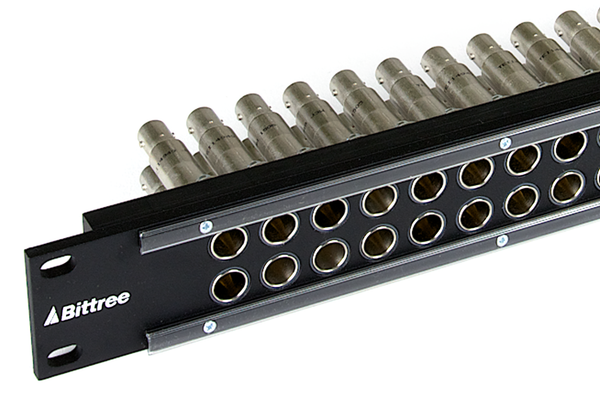

    - Single body, non-normalling (straight-through), non-terminating (1WNHD)

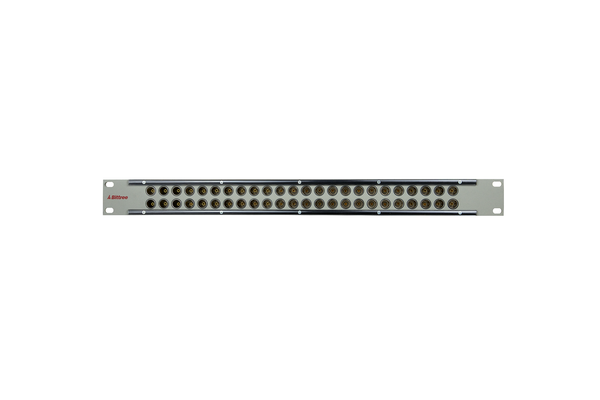

    • Front Panel Color – Black or Gray scratch resistant powder-coat finish

    • RoHS Compliance – See our RoHS compliance statement to learn more



  • Product Files:
    Circuit Schematics Coming Soon
    Designation Strip Template Coming Soon
    Technical Drawings:
    B48S-2WTHD Coming Soon Coming Soon
    B48S-2WNHD Coming Soon Coming Soon
    B48S-1WTHD Coming Soon Coming Soon
    B48S-1WNHD Coming Soon Coming Soon
    G48S-2WTHD Coming Soon Coming Soon
    G48S-2WNHD Coming Soon Coming Soon
    G48S-1WTHD Coming Soon Coming Soon
    G48S-1WNHD Coming Soon Coming Soon
