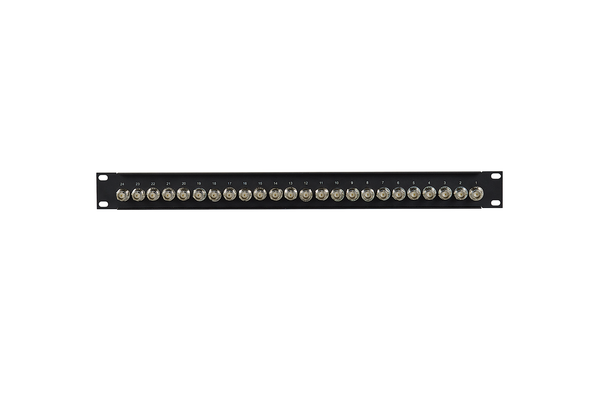

BNC Coaxial Bulkhead Patch Panel, 1x24, 1 RU

  • Bittree® BNC Coaxial Bulkhead Panel in 1 RU Height with 1x24 Jack Configuration

    BNC Jack Properties:
    • 4 GHz high-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s and 3D applications
    • SMPTE 259M, 292M and 424M compliant
    • 75 ohm impedance with low return loss
    • Voltage rating: 500V
    • Operating temperature: -65 to +165°C

    Panel Features:
    • 1/16” (0.062 in. / 1.57 mm) folded aluminum with a durable black powder-coat finish
    • BNC connectors on both the front and back of the panel
    • Silk screened circuit numbering on both the front and back with optional designation strip available for the front

    • Front Panel Circuit Identification:
    - Silk screened numbering only, or
    - 1 x DS580-20 Designation Strip (stainless-steel slider with white styrene and non-glare Lexan inserts)

    • RoHS Compliance – See our RoHS compliance statement to learn more
