Integrated (IPS) Audio and Video Patchbay, Standard WECO and 1/4 Inch (Long-Frame), 2 RU, BIPS-165

Continue Shopping or Checkout

  • Bittree® Integrated (IPS) Audio/Video Patchbay in 2 R

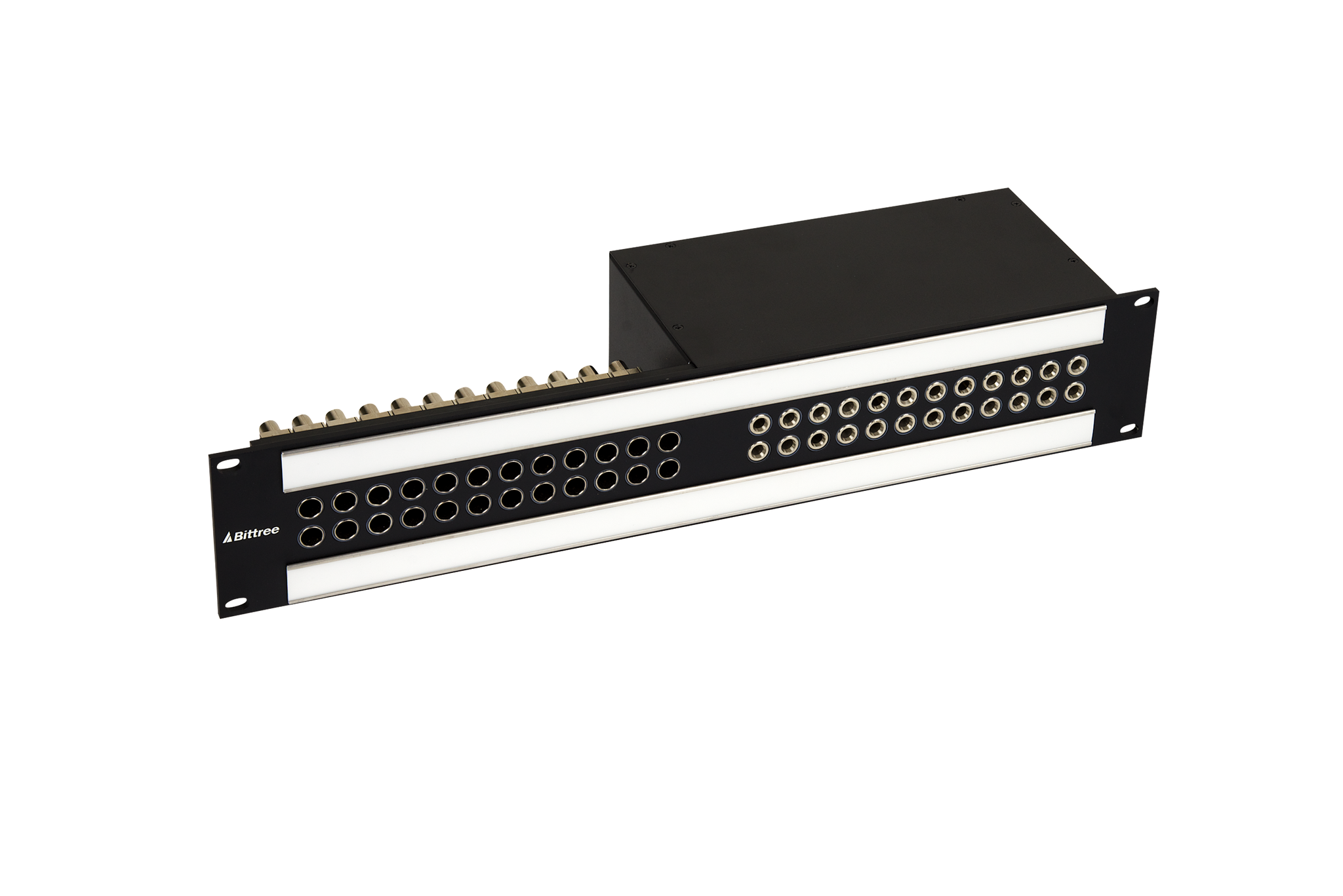

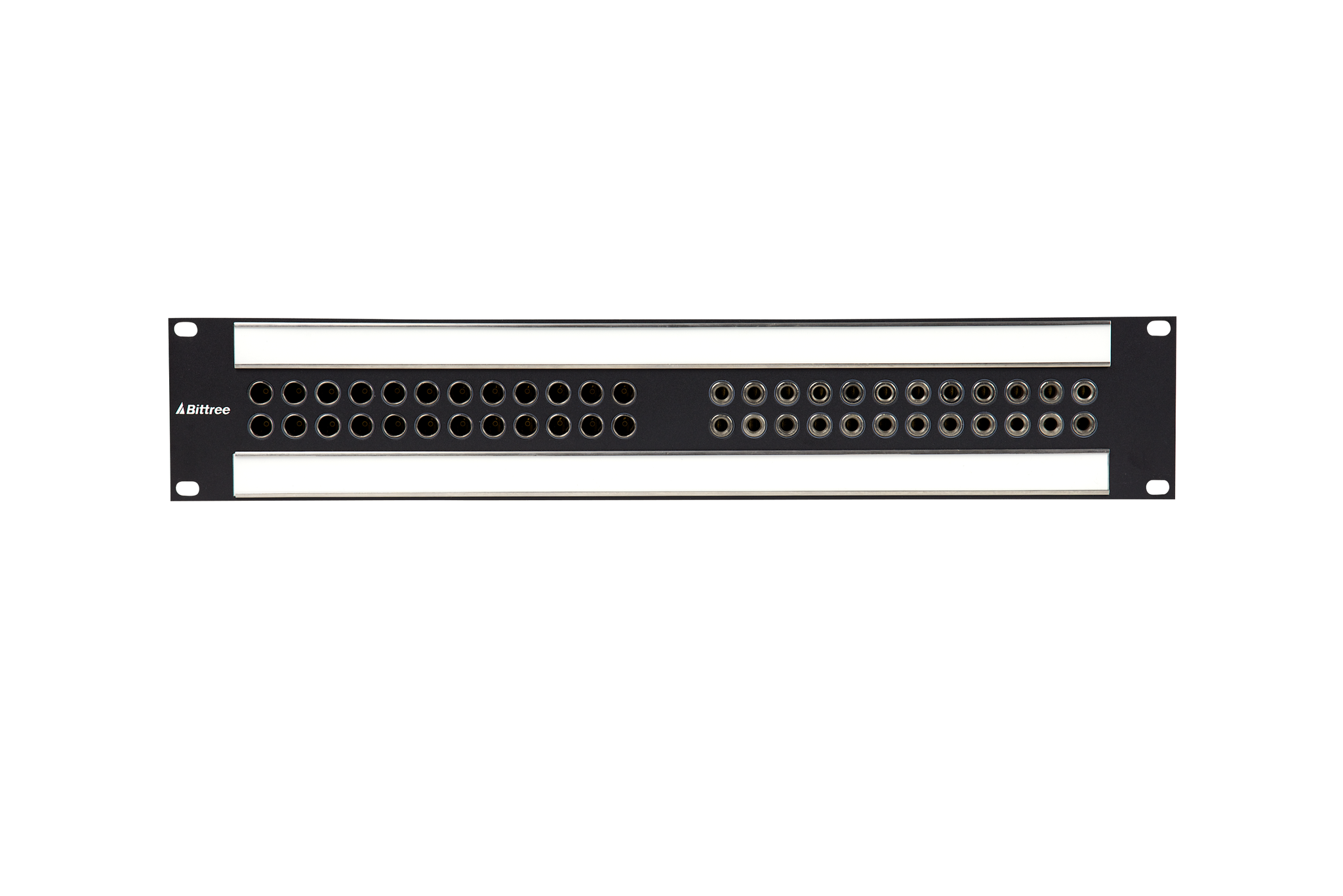

    • Front panel jack arrangement: 2x12 Standard WECO Video, 2x12 1/4 Inch Long-Frame Audio

    Video Specifications:
    • Standard WECO high-bandwidth (3Ghz) video jacks
    • Dual body, self-normalling with 75 ohm termination
    • SMPTE 259M, 292M and 424M compliant

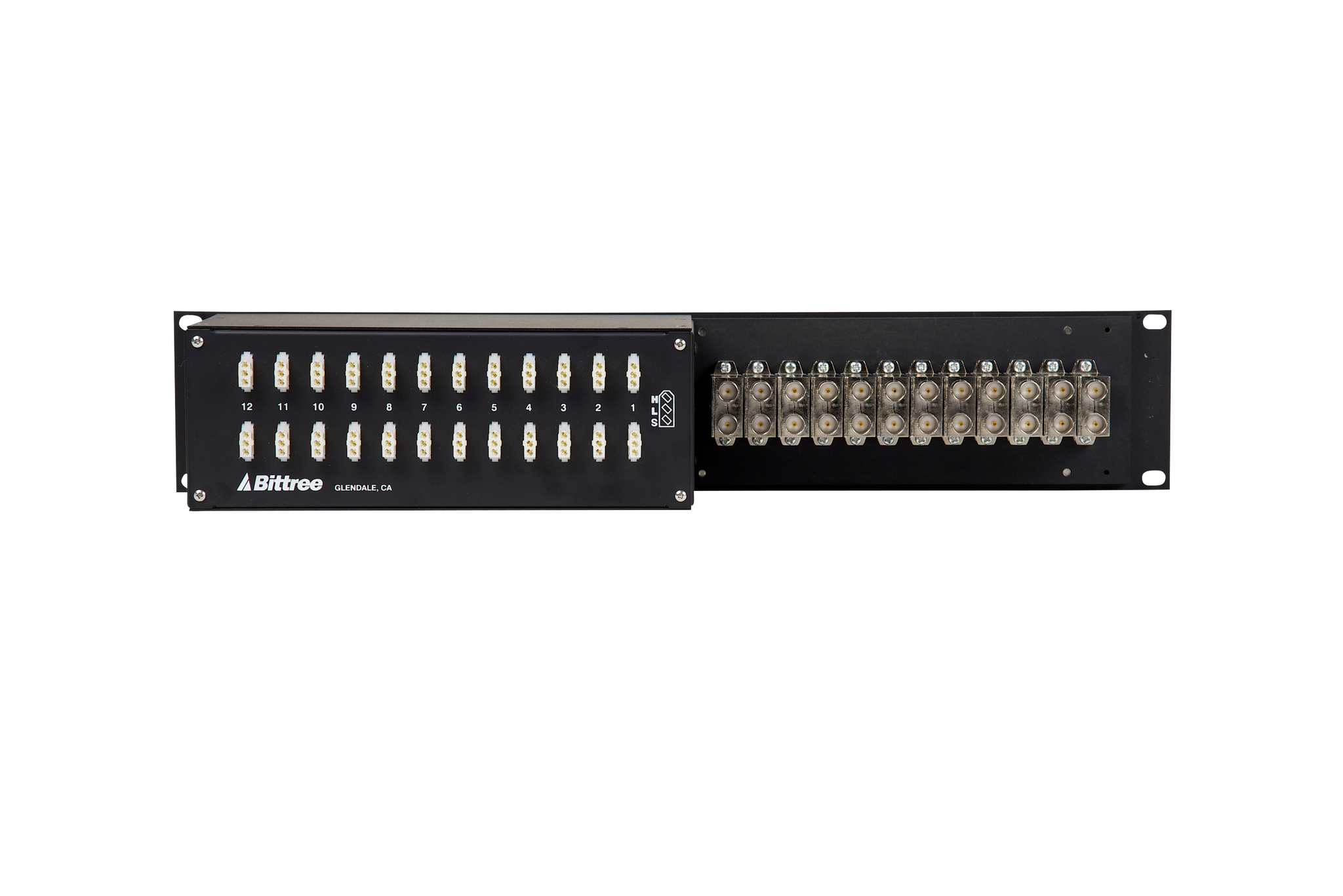

    • BNC rear interface

    Audio Specifications:
    • Full normal with isolated grounds, mono (even) jack spacing
    • E3 rear interface with mating hardware included:

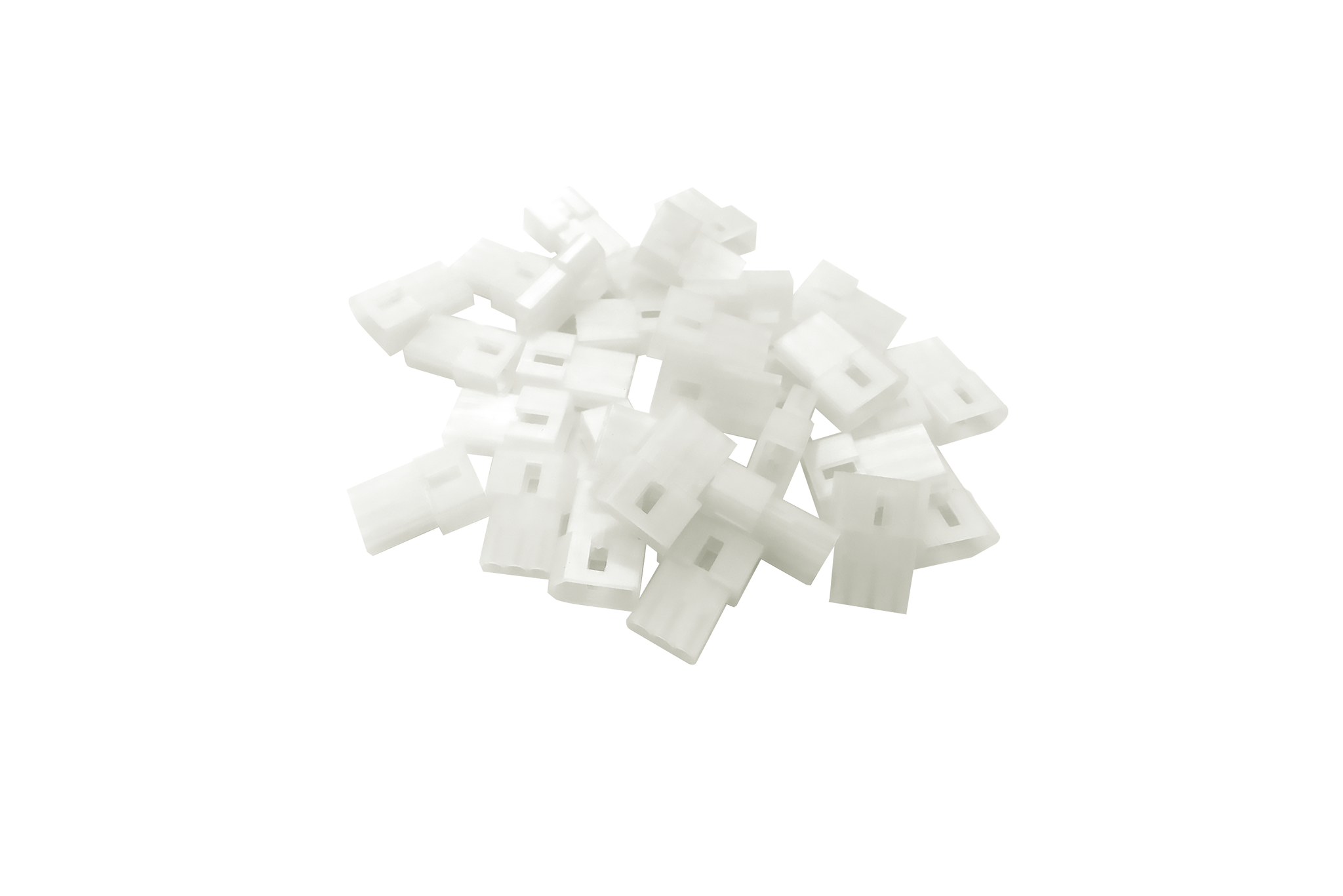

    - 24 x E3M connector housings (3-pin male)

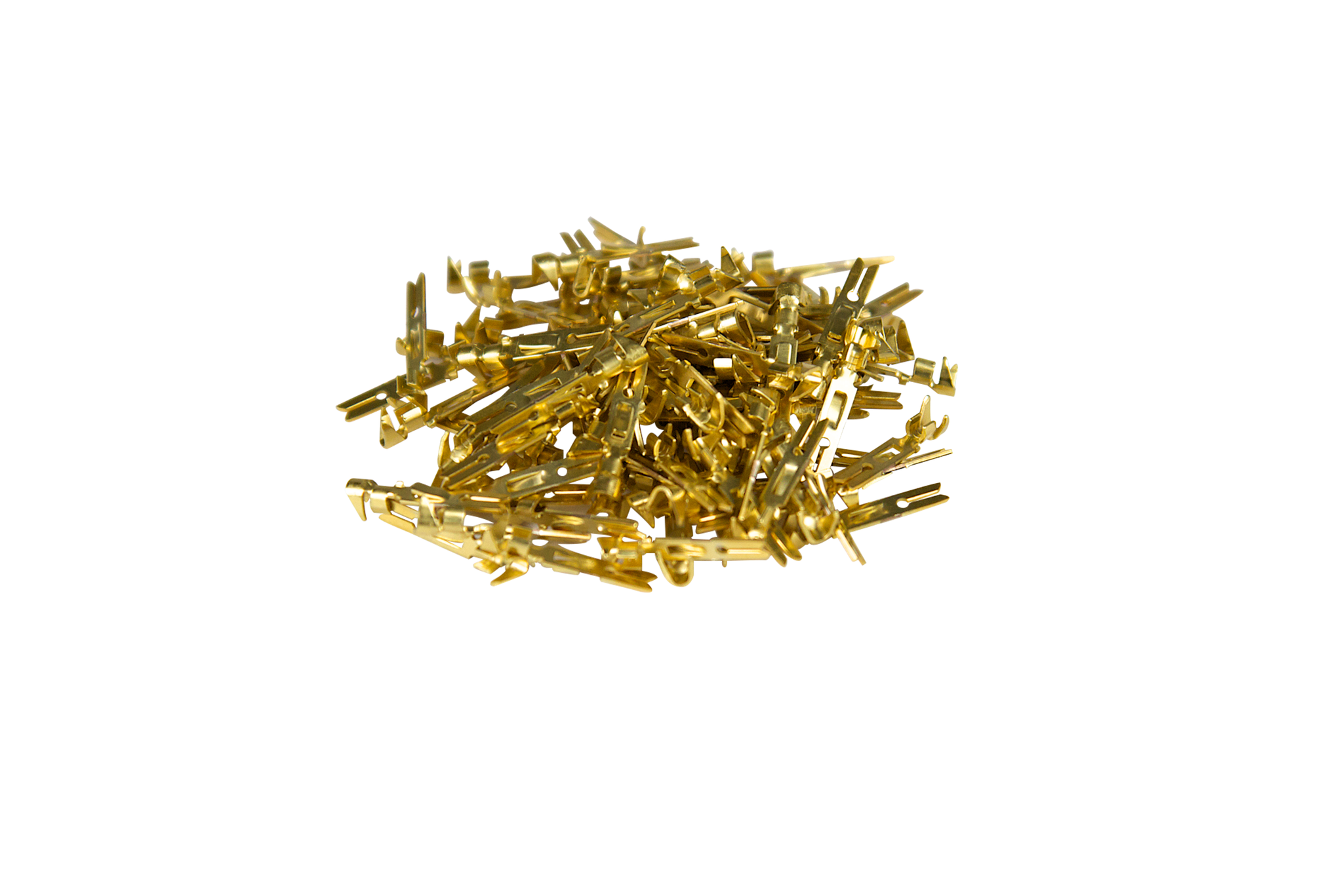

    - 72 x EPIN crimp contacts (gold-plated)

    1/4 Inch Long-Frame Jack Properties (Audio):
    • Rated to 30,000 minimum insertion cycles
    • Copper-nickel-silver alloy leaf springs with gold-alloy cross bar switching contacts and nickel-plated sleeve bushings
    • Precision-stamped reinforced steel jack frame

    Panel Features:
    • 3/16” (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
    • Rear-mounted jack modules
    • Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
    • 5" (12.7 cm) deep fully enclosed half-chassis
    • 2 x DS800-15 designation strips:
    - Stainless-steel sliders with white styrene and non-glare Lexan inserts

    Compliance
    • RoHS Compliance – See our RoHS compliance statement to learn more
