SKU# CAP0127

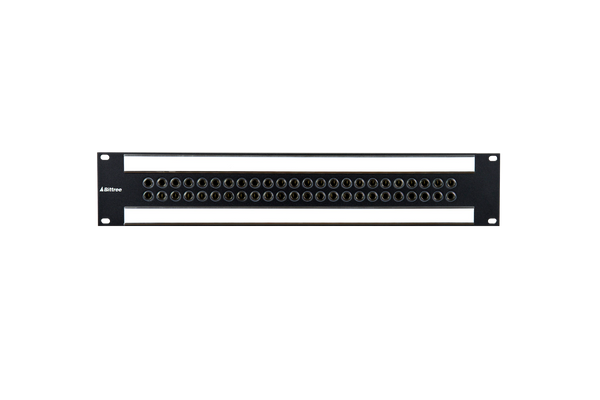

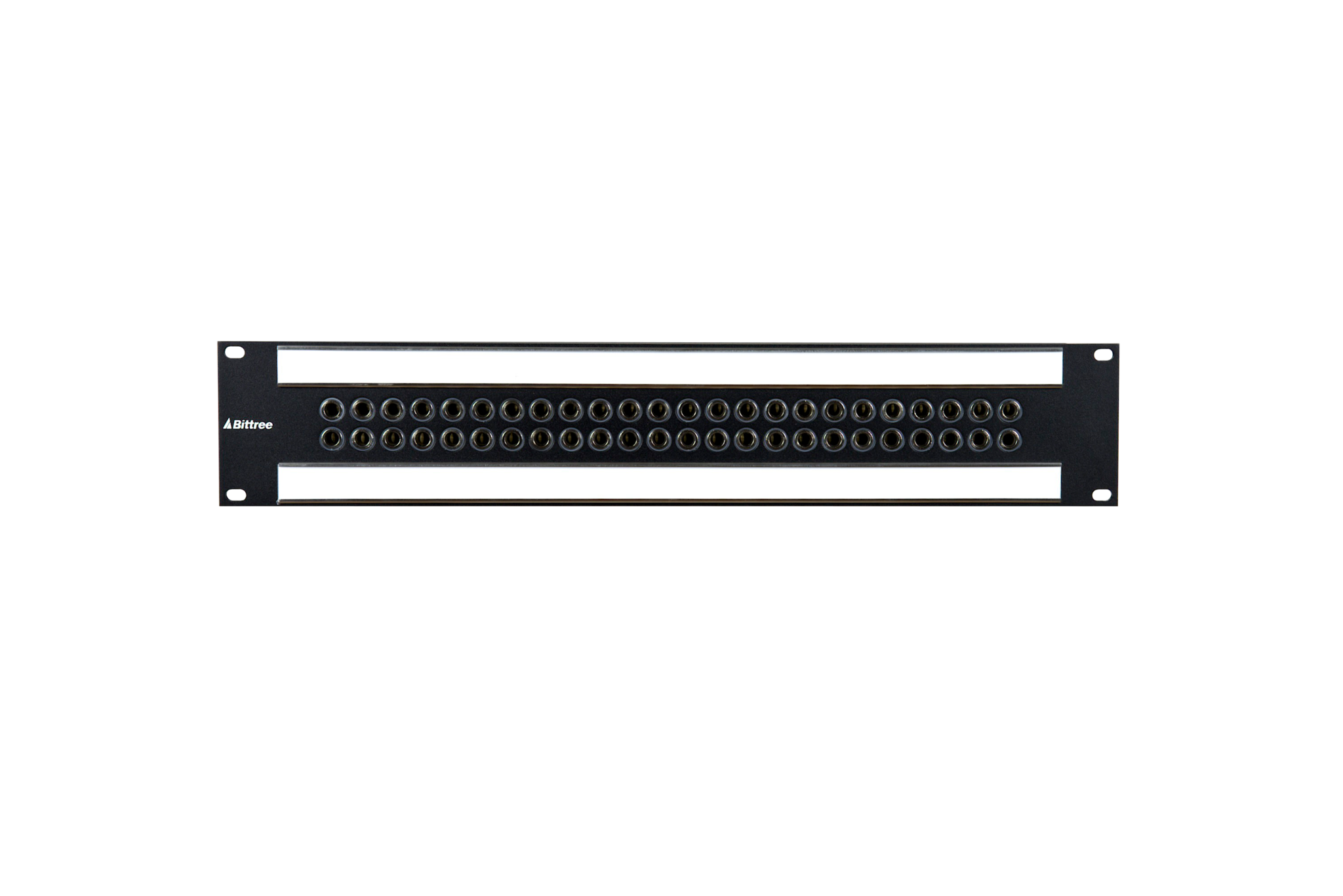

Speaker Level 1/4 Inch Long-Frame Audio Patchbay, 2 RU, Barrier Strip Rear Interface

Continue Shopping or Checkout

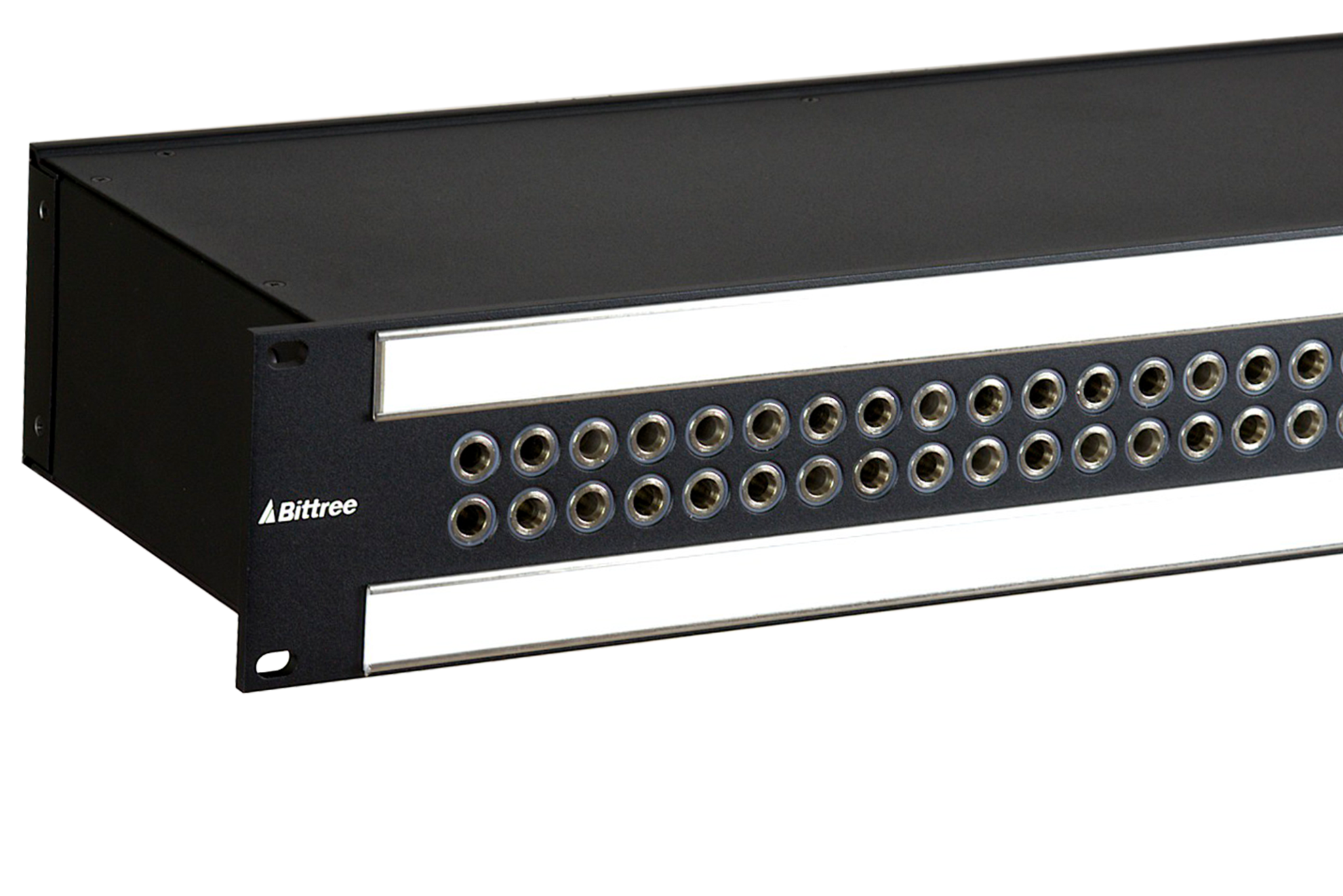

  • Bittree® Non-Programmable Speaker Level ¼ Inch Long-Frame Patchbay in 2 RU

    Product Features:
    • Spacious 2x24 jack configuration with mono (even) jack spacing
    • Designed for high and low impedance speaker systems
    • Nominal 0.030 ohms per speaker terminal point

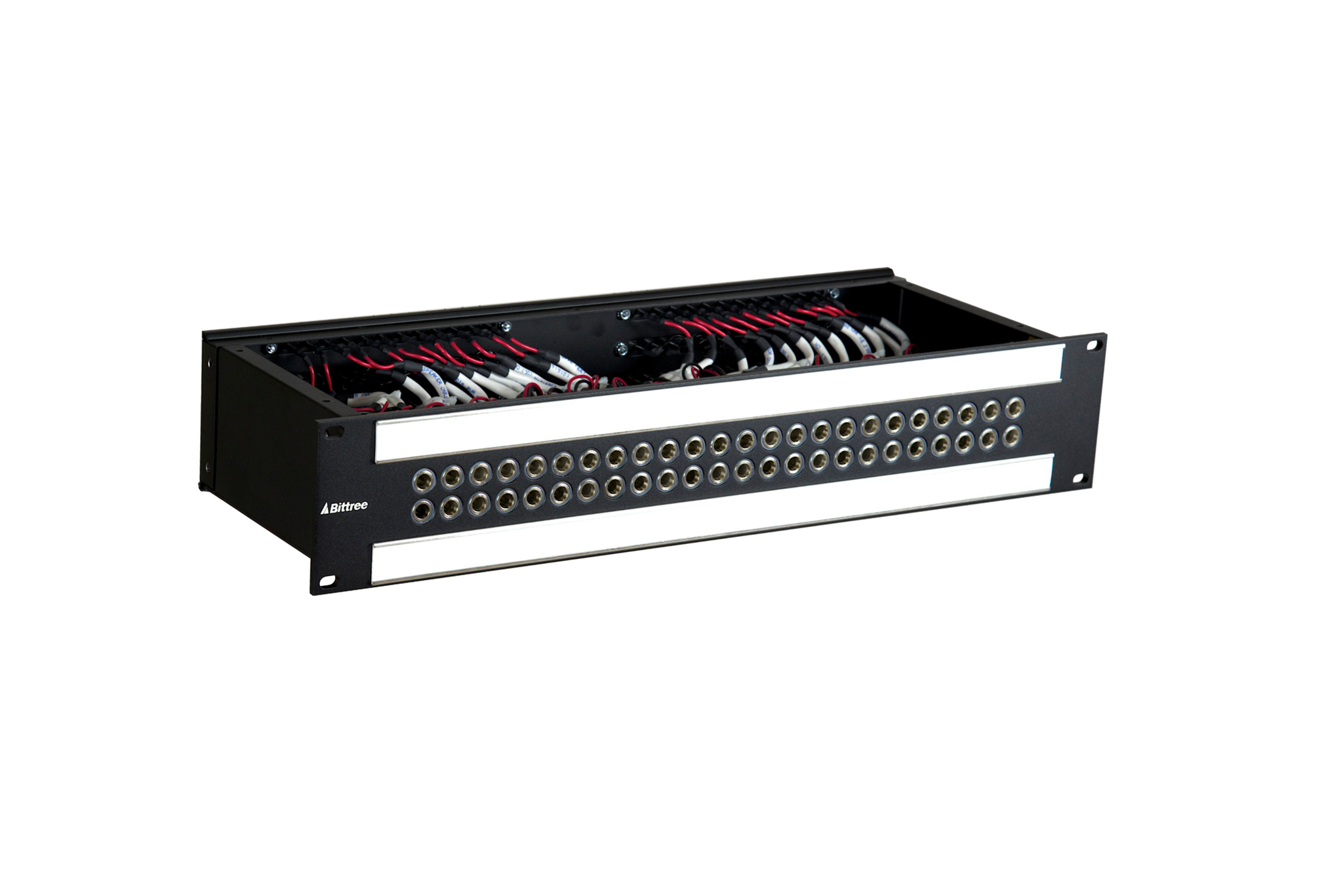

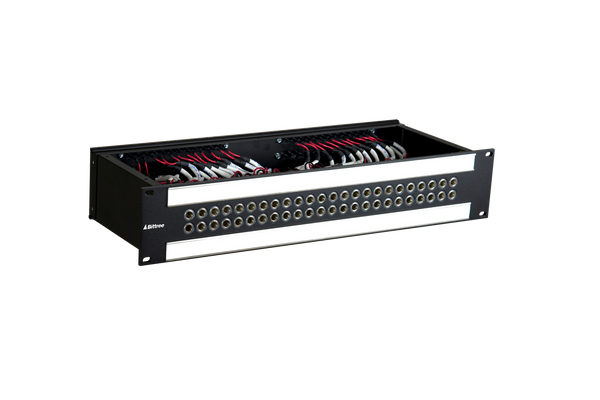

    • 16 AWG two-conductor cable used for internal wiring

    ¼ Inch Long-Frame Jack Properties:
    • Precision-stamped reinforced steel jack frame
    • Copper-nickel-silver alloy leaf springs with gold-alloy cross bar switching contacts and nickel-plated sleeve bushings
    • Rated to 30,000 minimum insertion cycles

    Panel Features:
    • 3/16” (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
    • Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel

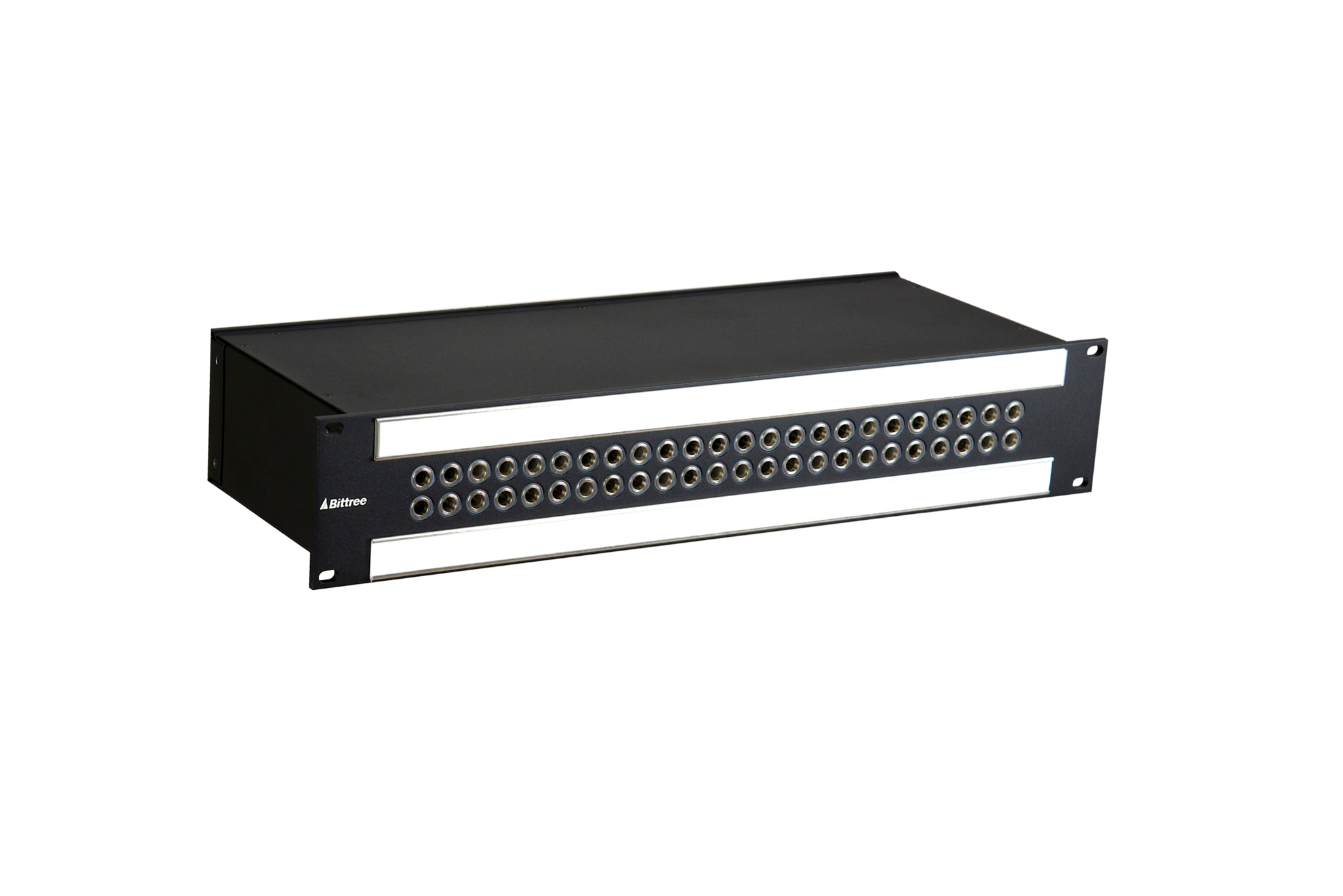

    • 7" (30.48 cm) deep fully enclosed chassis
    • 2 x DS870-10 designation strips (stainless-steel sliders with white styrene and non-glare Lexan inserts)

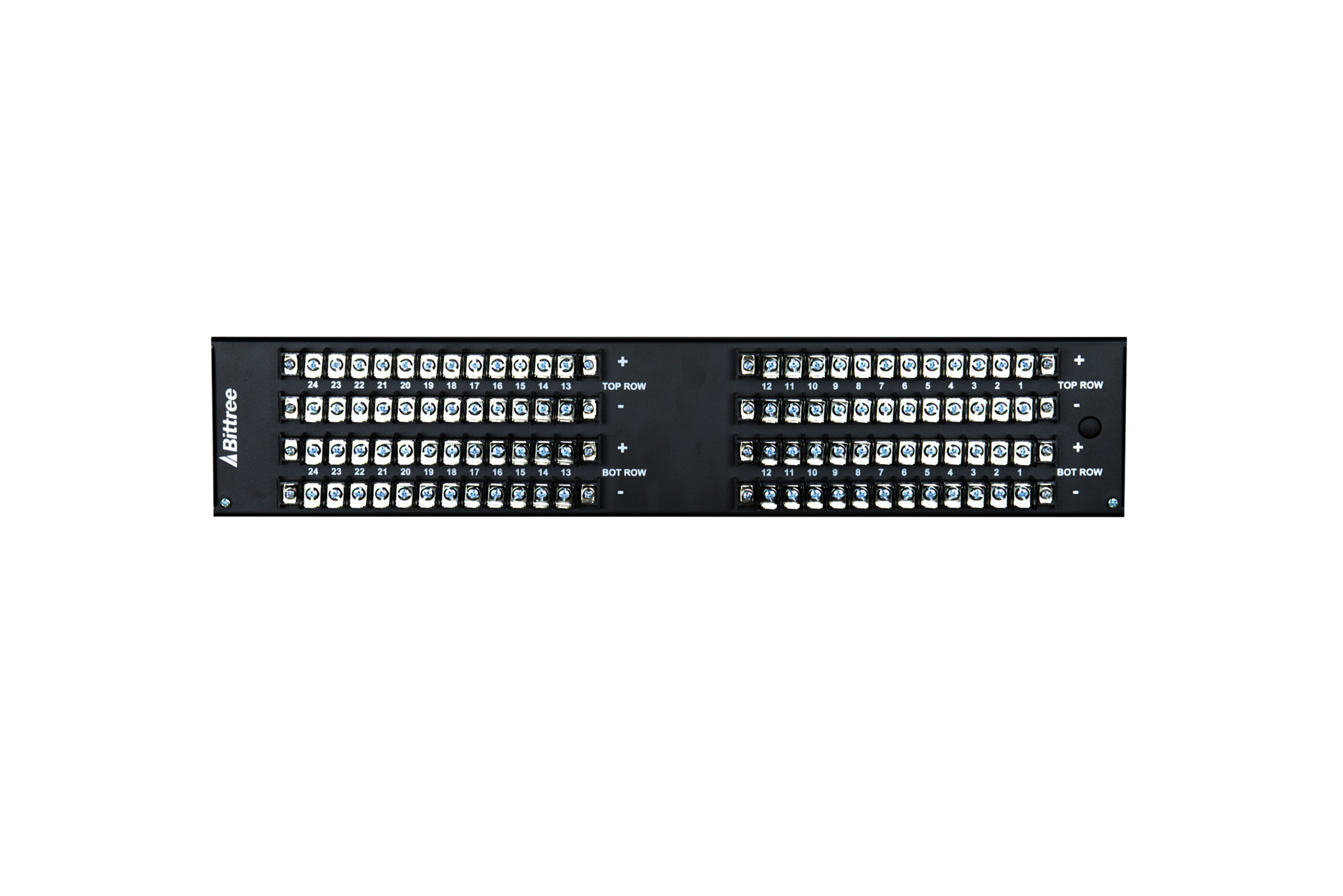

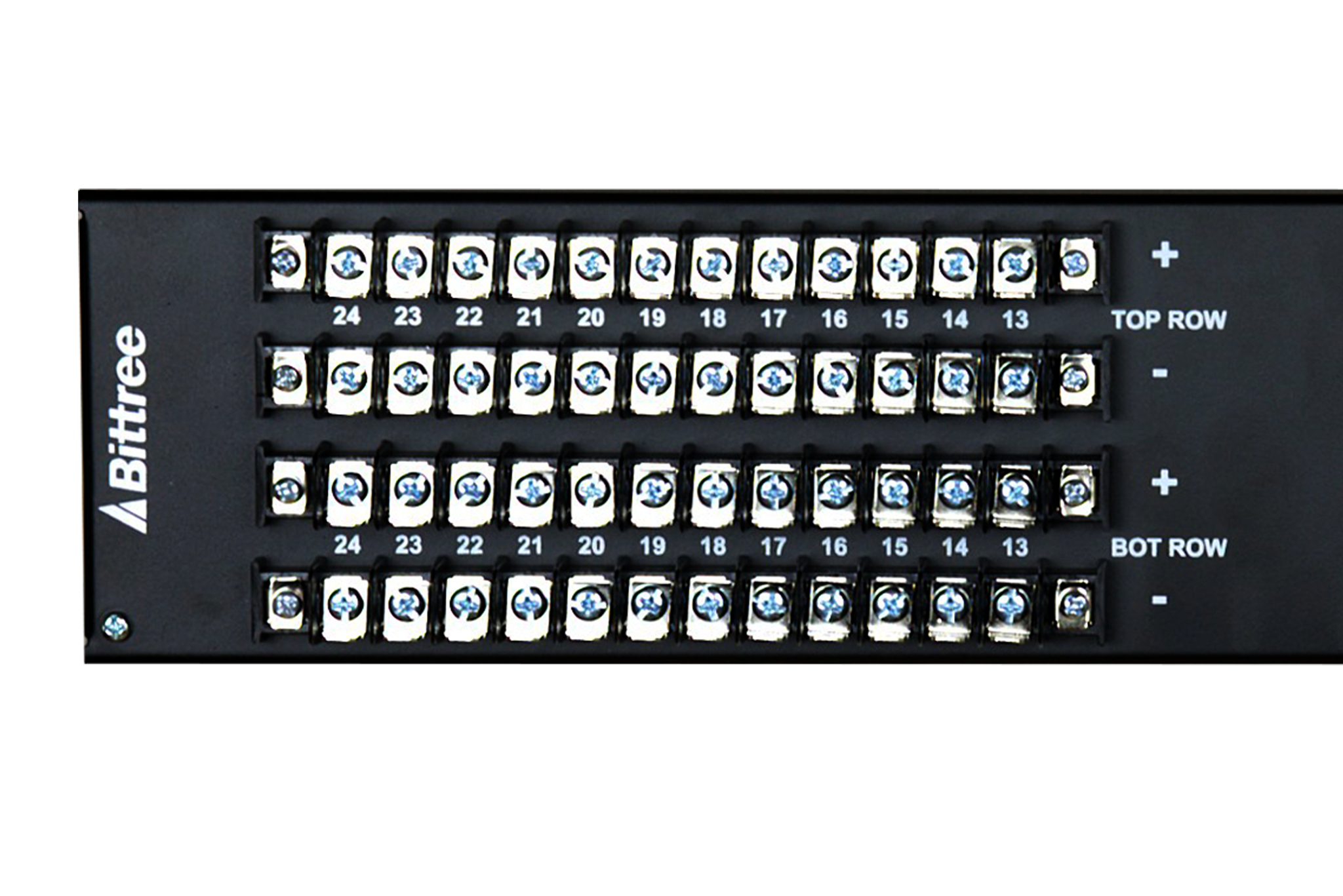

    • Barrier Strip rear interface:

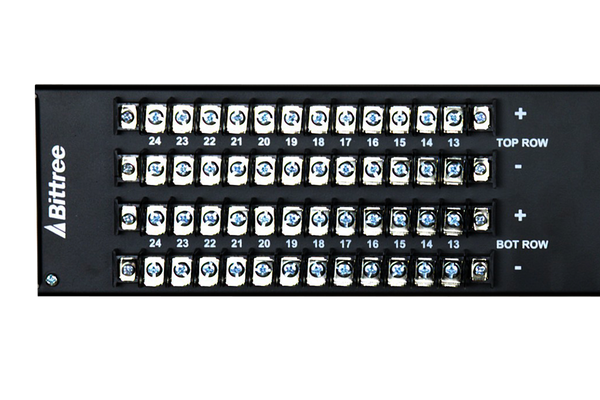

      - 8 x terminal blocks (single-row, 12-position, dual-barrier)
      - Compatible with 1/4" (6.35 mm) faston spade lugs

    • Normalling – circuits can be wired at the factory to full normal or non-normal

    • Patch Cable – 16 gauge two conductor patch cable, item CCA0231

    • RoHS Compliance – See our RoHS compliance statement to learn more
