PS96DB25i - 2x48 TT Audio Patchbay 1RU

  • Bittree® ProStudio PS96DB25i Patchbay

    Internally Selectable TT (Bantam) Audio Patchbay, 1RU Height, DB25 Rear Interface

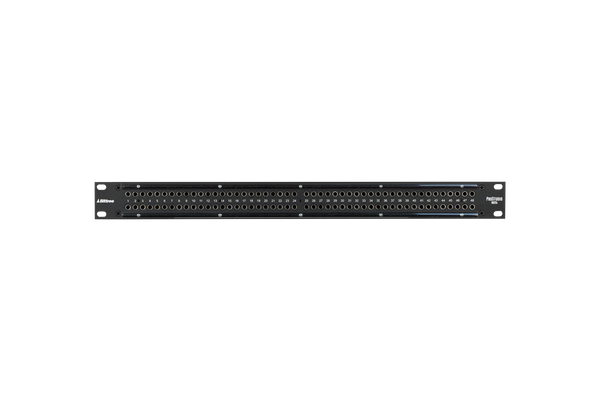

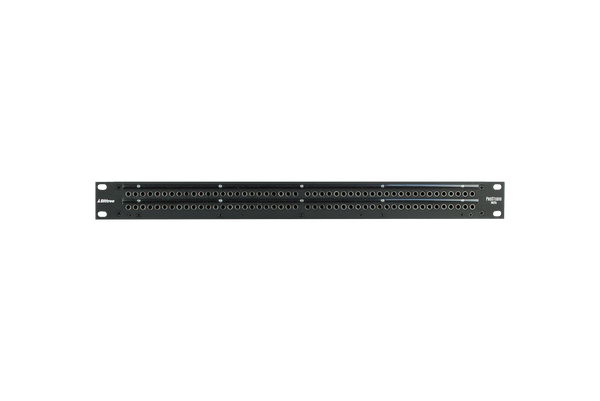

    • High-density 2x48 jack configuration with mono (even) jack spacing

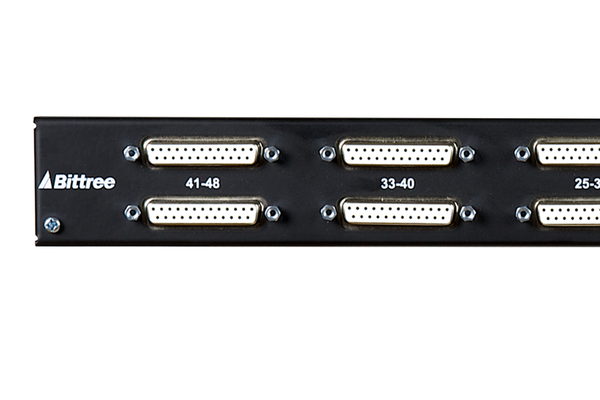

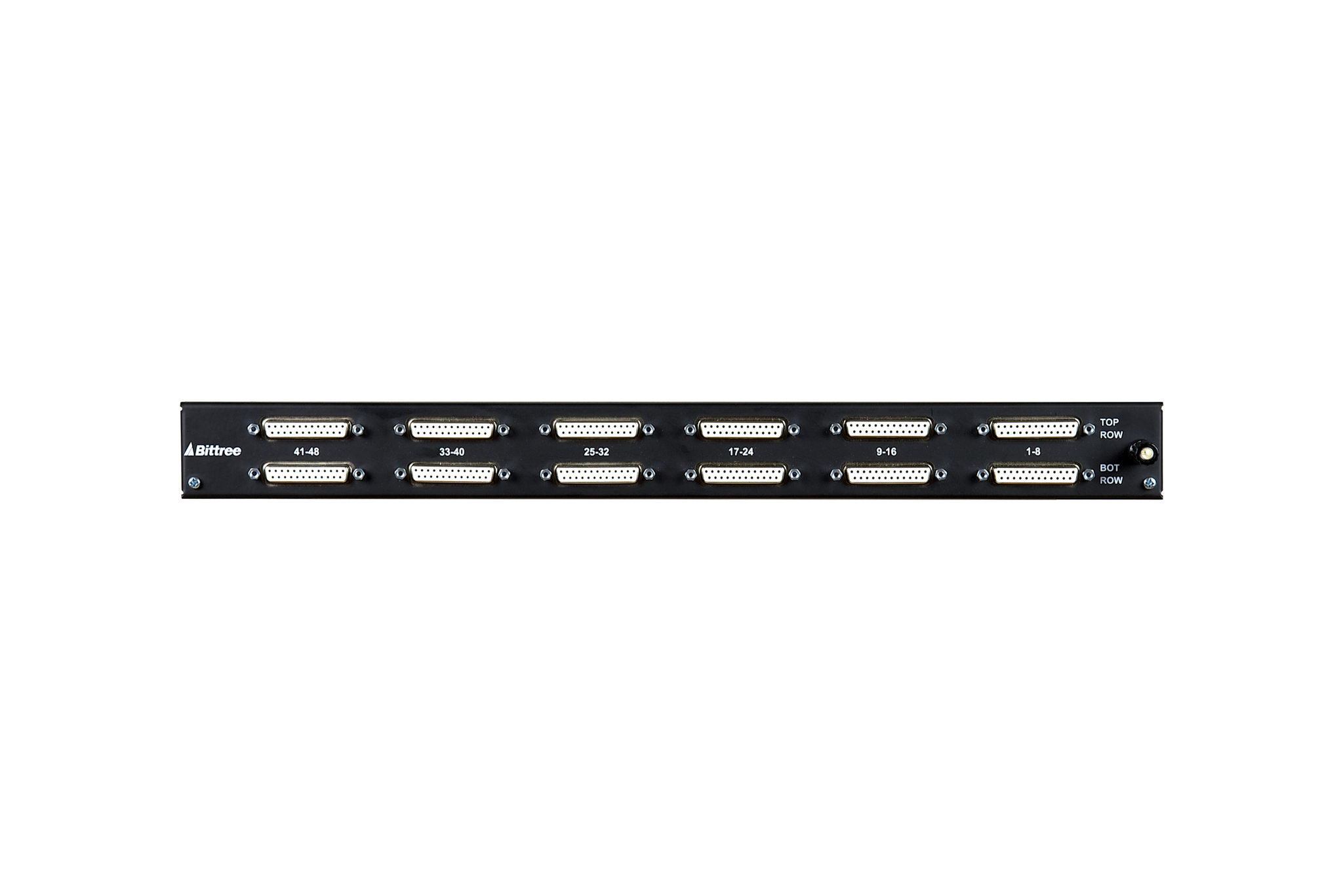

    • DB25 rear interface (12 x 25-pin female DB25 connectors)
      - Protools®, Tascam® DB25 Pinout
    • Selectable normalling and grounding
       - Ships full normal with bussed grounds

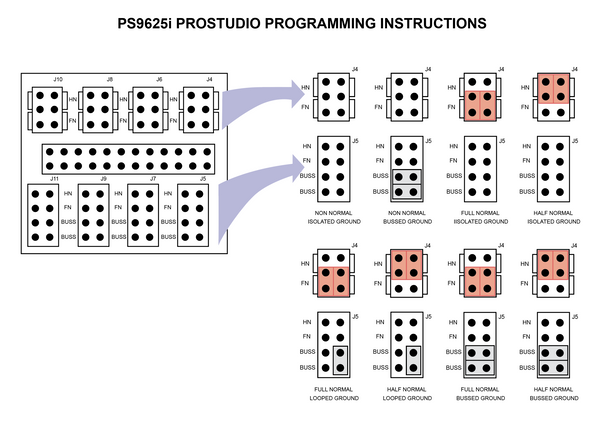

    • Circuits can be easily changed via shunts under both dust covers
       - Normalling – circuits can be set to full normal, half normal or non-normal
       - Grounding – can be set to bussed, isolated, or looped
    • Analog and Digital 110 ohm compatible
    • 2 x DS250-10 designation strips, "Over/Over" orientation
      - Front panel will accommodate an optional third designation strip
    • 7" (17.78 cm) deep fully enclosed chassis

    Optional
    • Third designation strip (DS250-10-ASSY)

    Compliance
    • RoHS Compliance – See our RoHS compliance statement to learn more





  • Product Files:
    Data Sheet PDF
    Circuit Schematics PDF
    Programming Instructions PDF
    Designation Strip Template DOCX
    Pinout PDF
    7 in. Chassis - Technical Drawings:
    PS96DB25i DWG PDF
