PS48DB25F - 2x24 TT Audio Patchbay Desktop

Continue Shopping or Checkout

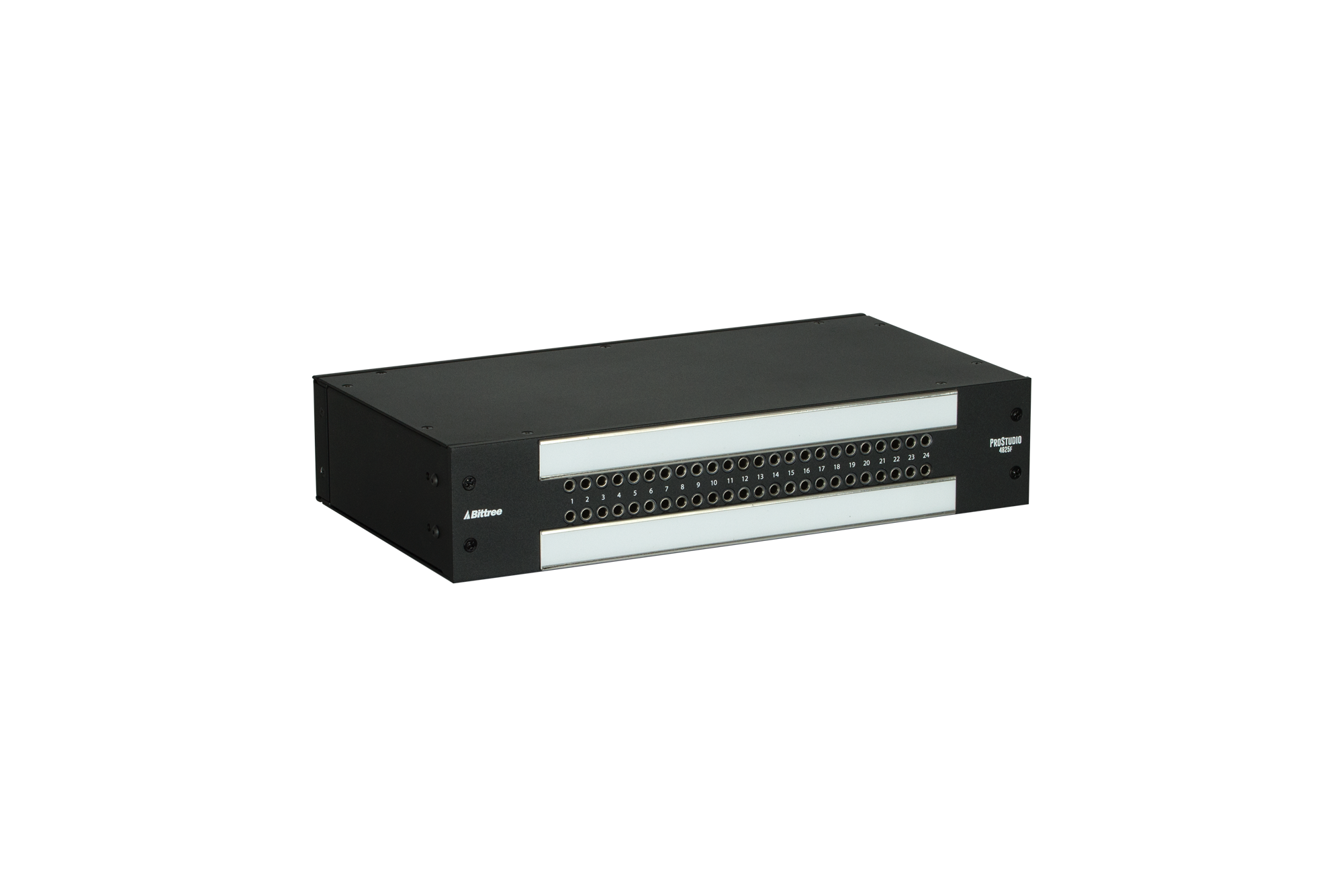

  • Bittree® ProStudio PS48DB25f 500 Series Patchbay

    Front Selectable TT (Bantam) Audio Patchbay,
    1.5RU Height, DB25 Rear Interface

    • Stand alone desktop patchbay with 4 rubber feet
    • Designed to fit perfectly below the API® 500-6B 6-slot Lunchbox Chassis
    • 2x24 jack configuration with mono (even) jack spacing

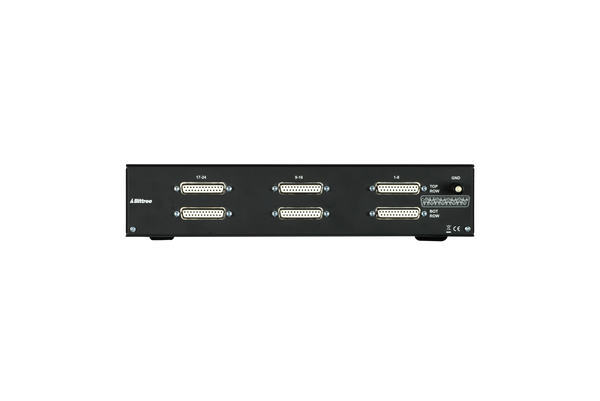

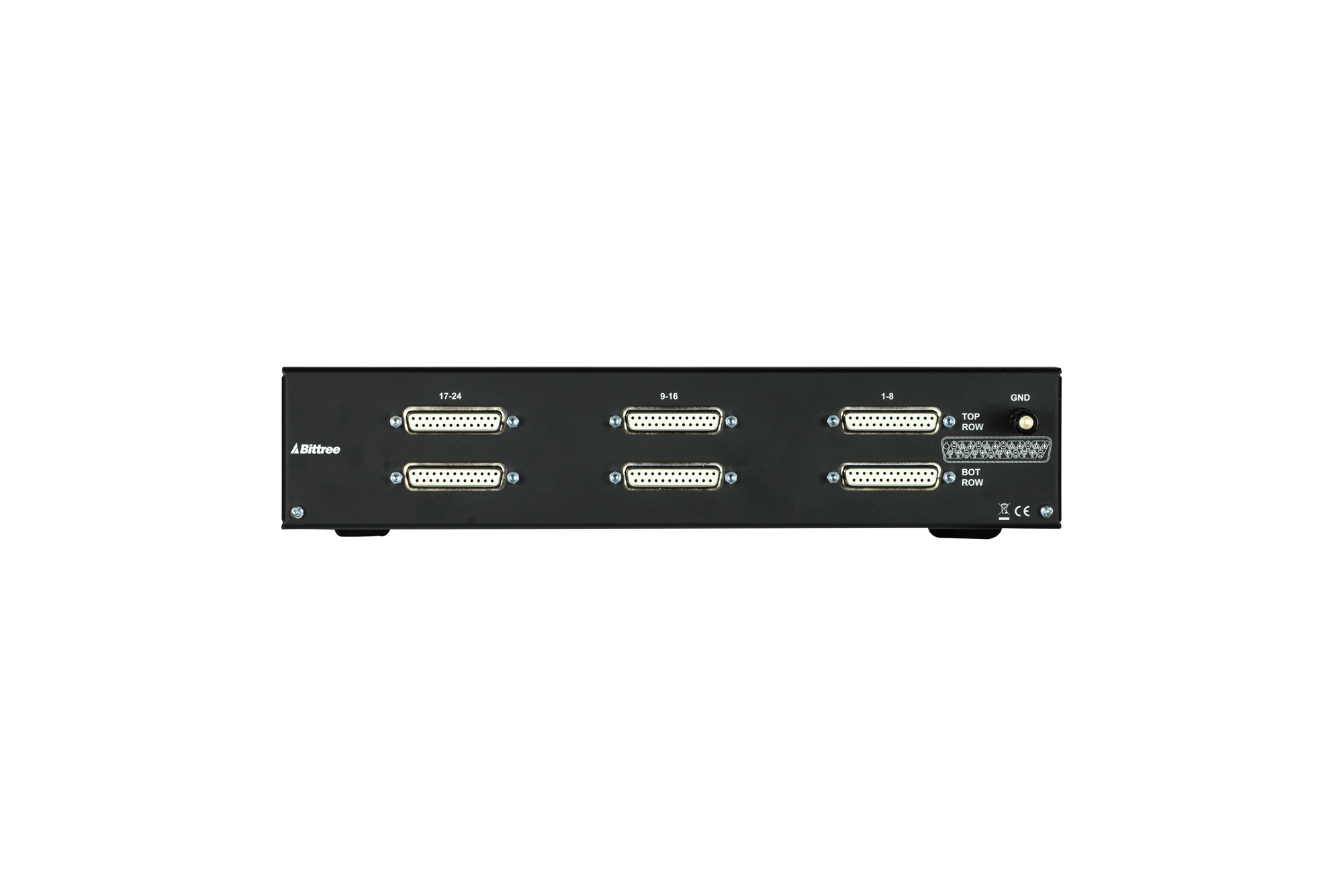

    • DB25 rear interface (6 x 25-pin female DB25 connectors)
      - Protools®, Tascam® DB25 Pinout
    • Selectable normalling and grounding
       - Ships full normal with bussed grounds

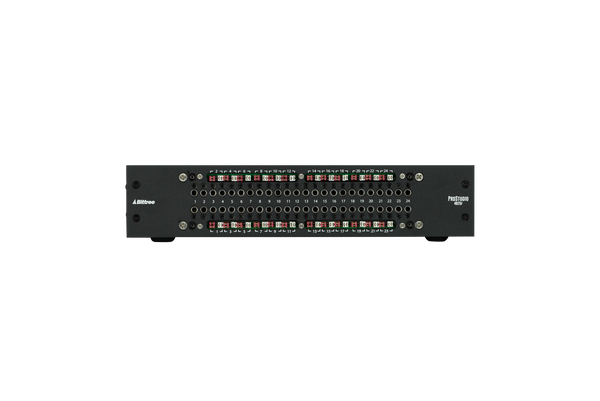

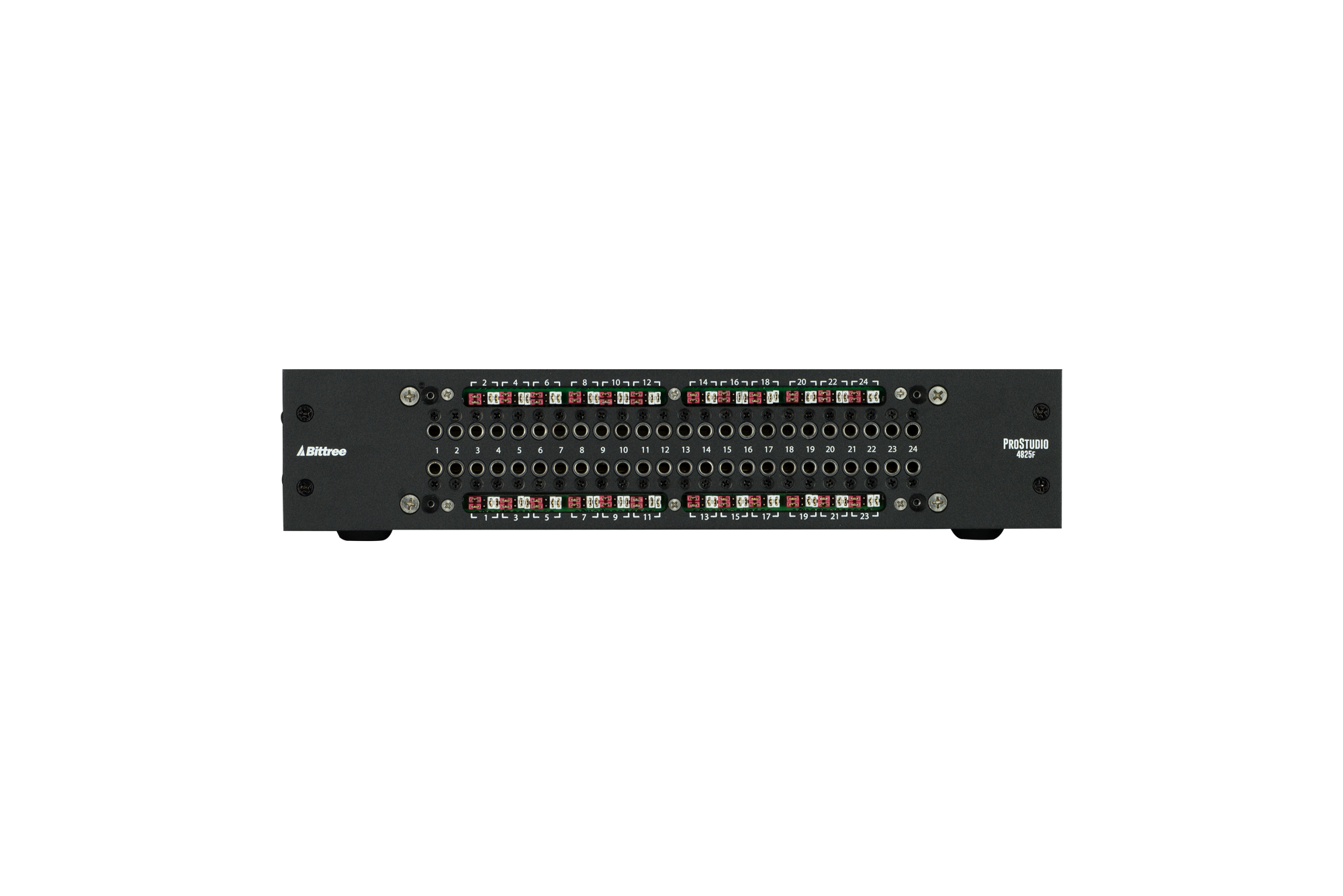

    • Circuits can be easily changed via shunts under both designation strips

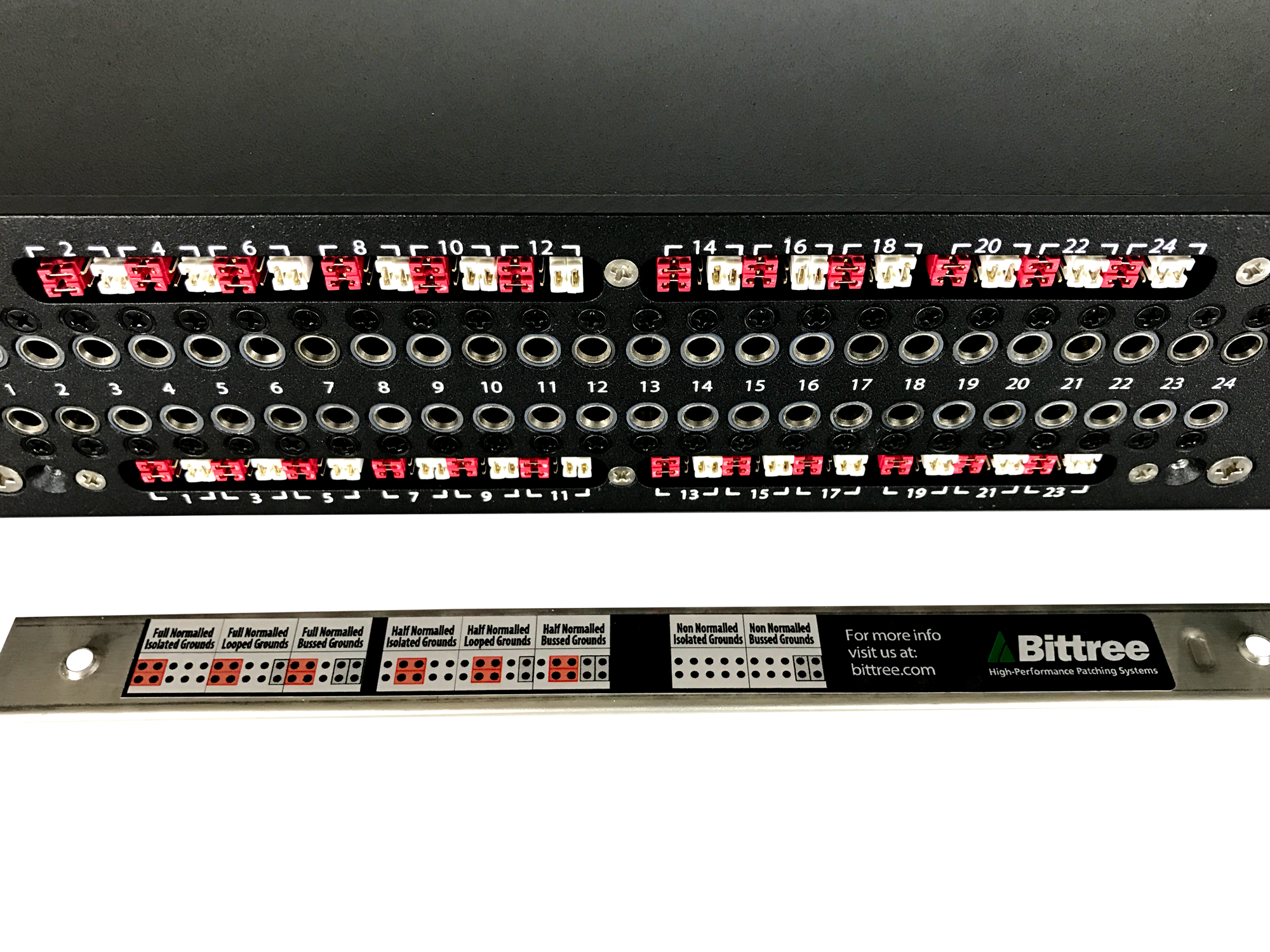

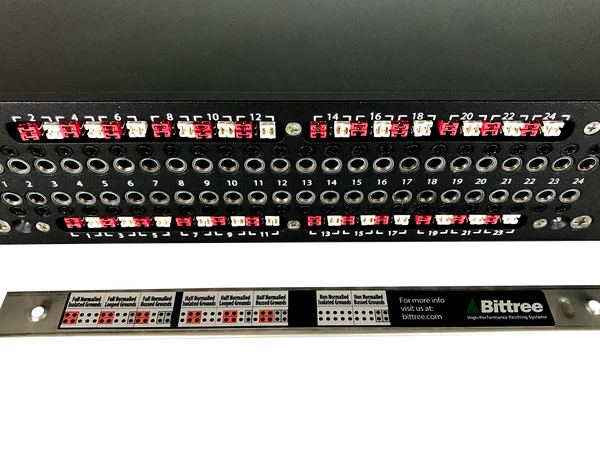

       - Normalling – circuits can be set to full normal, half normal or non-normal
       - Grounding – can be set to bussed, isolated, or looped
    • Analog and Digital 110 ohm compatible

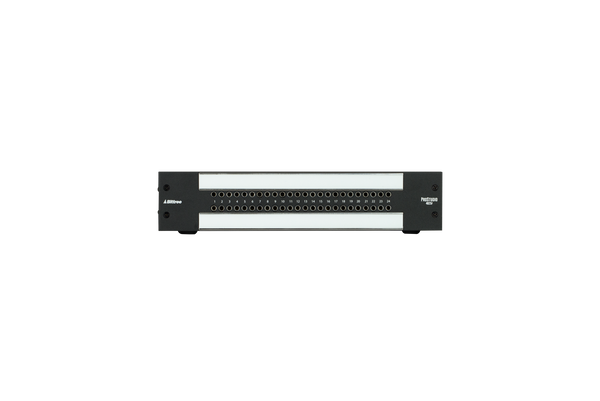

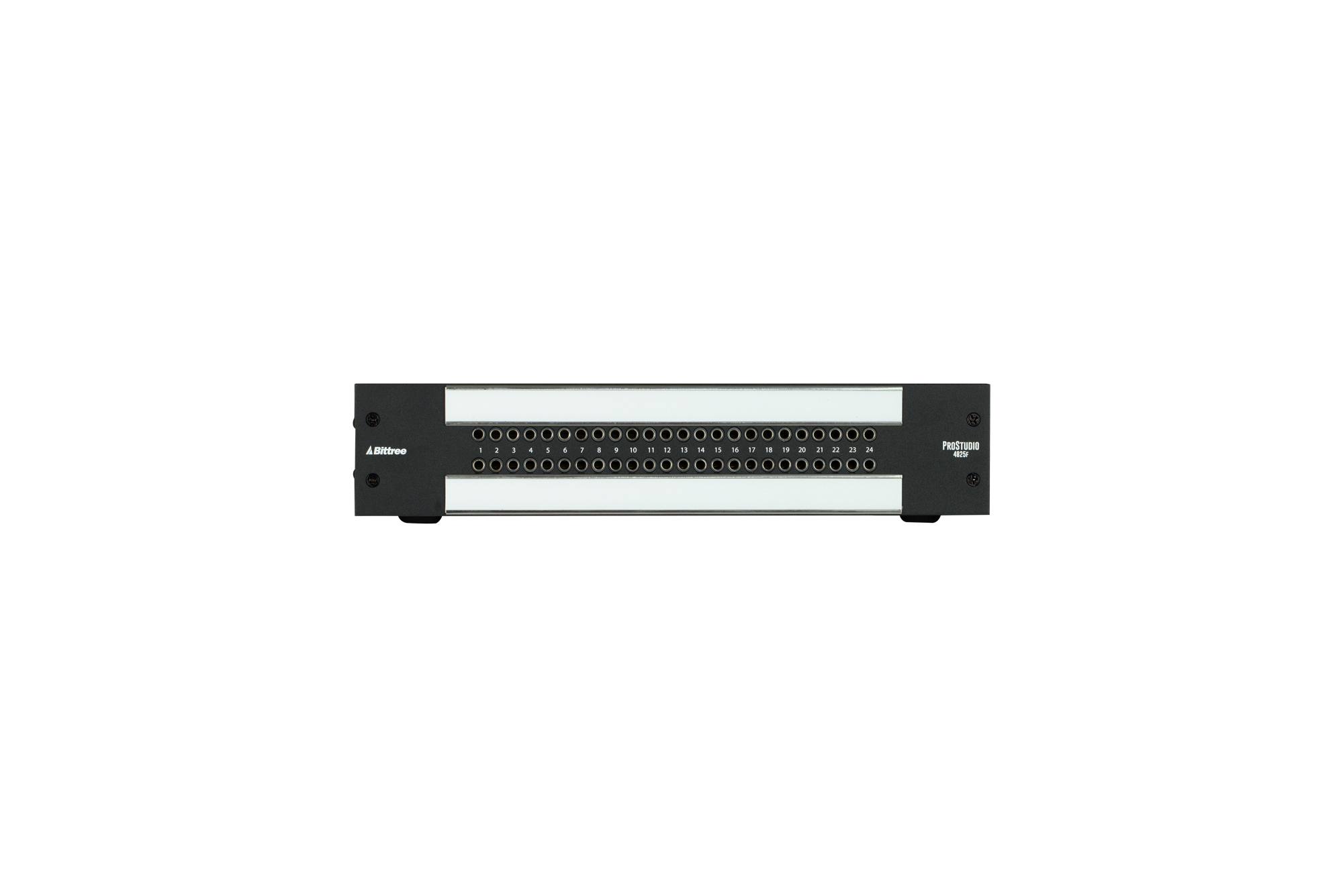

    • 1-24 left-to-right numbering on front panel for easy circuit identification
    • 2 x DS-PS4825/S designation strips, "Over/Under" orientation
    • 7" (17.78 cm) deep fully enclosed chassis

    • Rack mount ear kit (PSRME15D)

    • RoHS Compliance – See our RoHS compliance statement


  • Product Files:
    Data Sheet PDF
    Circuit Schematics PDF
    PSRME15 Mounting Instructions PDF
    Programming Instructions PDF
    Designation Strip Template DOCX
    Pinout PDF
    7 in. Chassis - Technical Drawings:
    PS48DB25f DWG PDF
