Mogami Gold 8-Channel Analog Audio Cable Snake

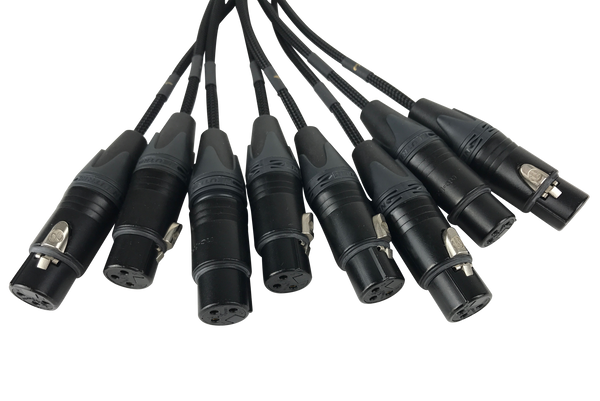

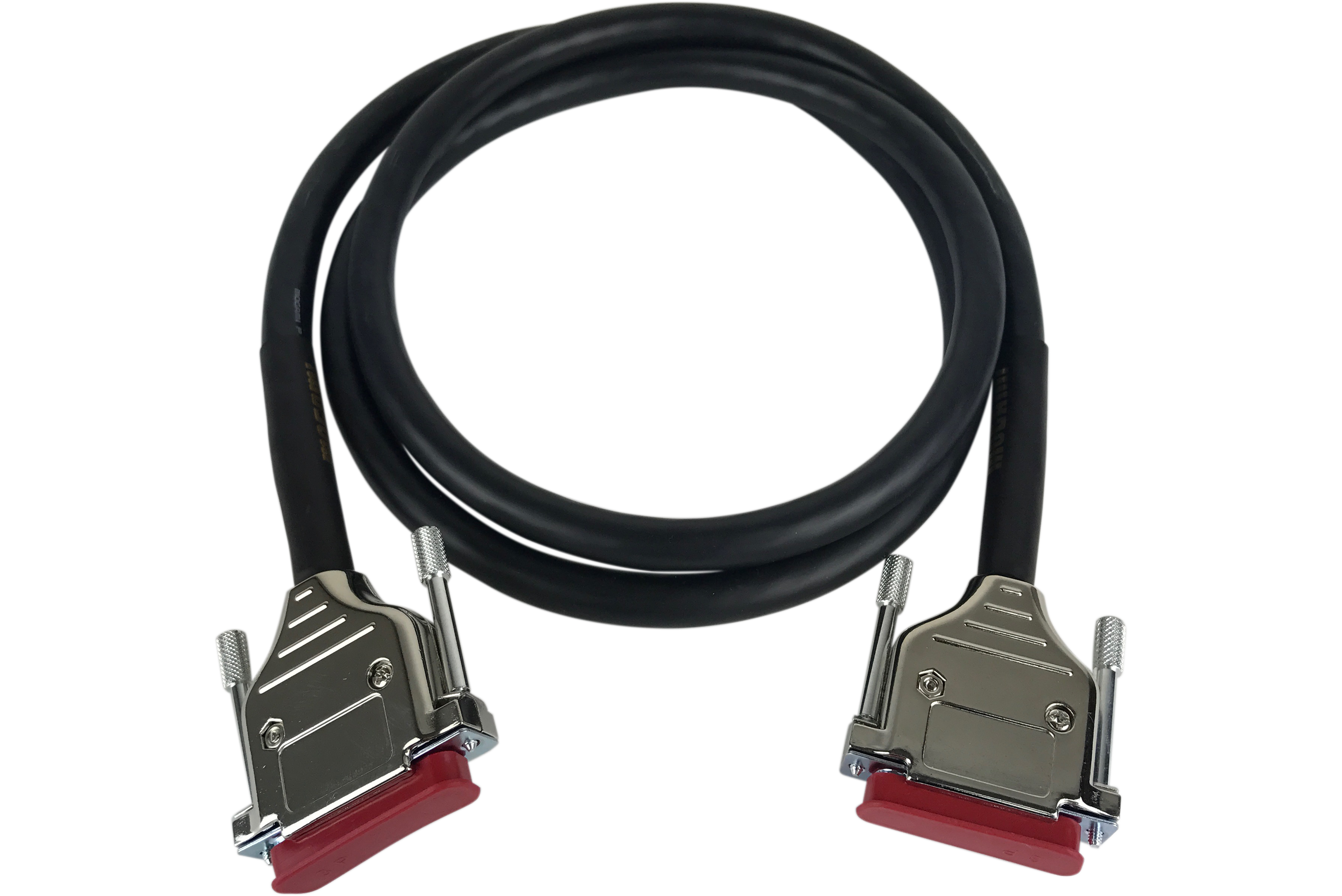

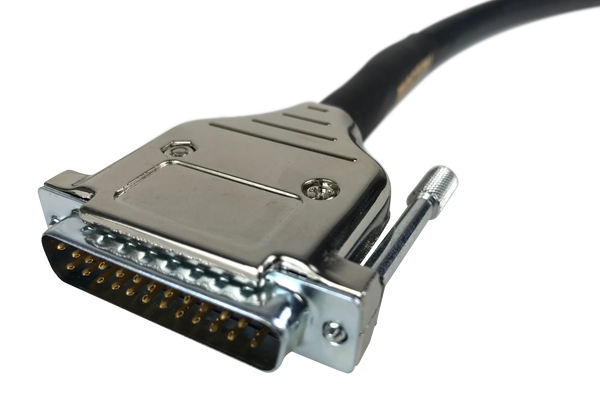

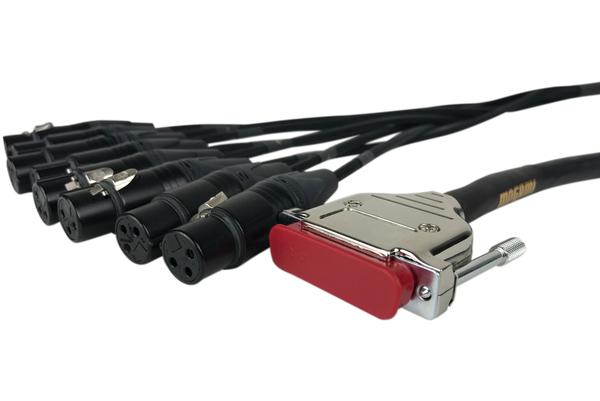

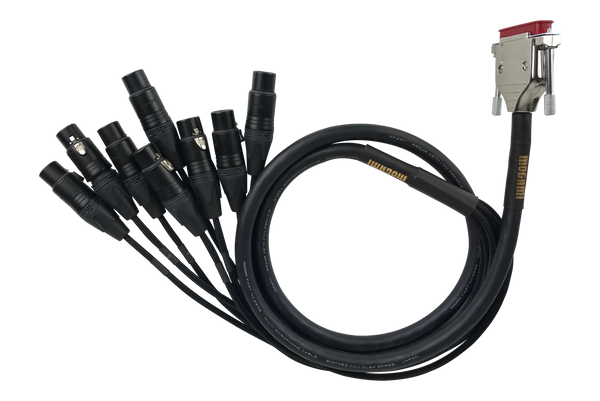

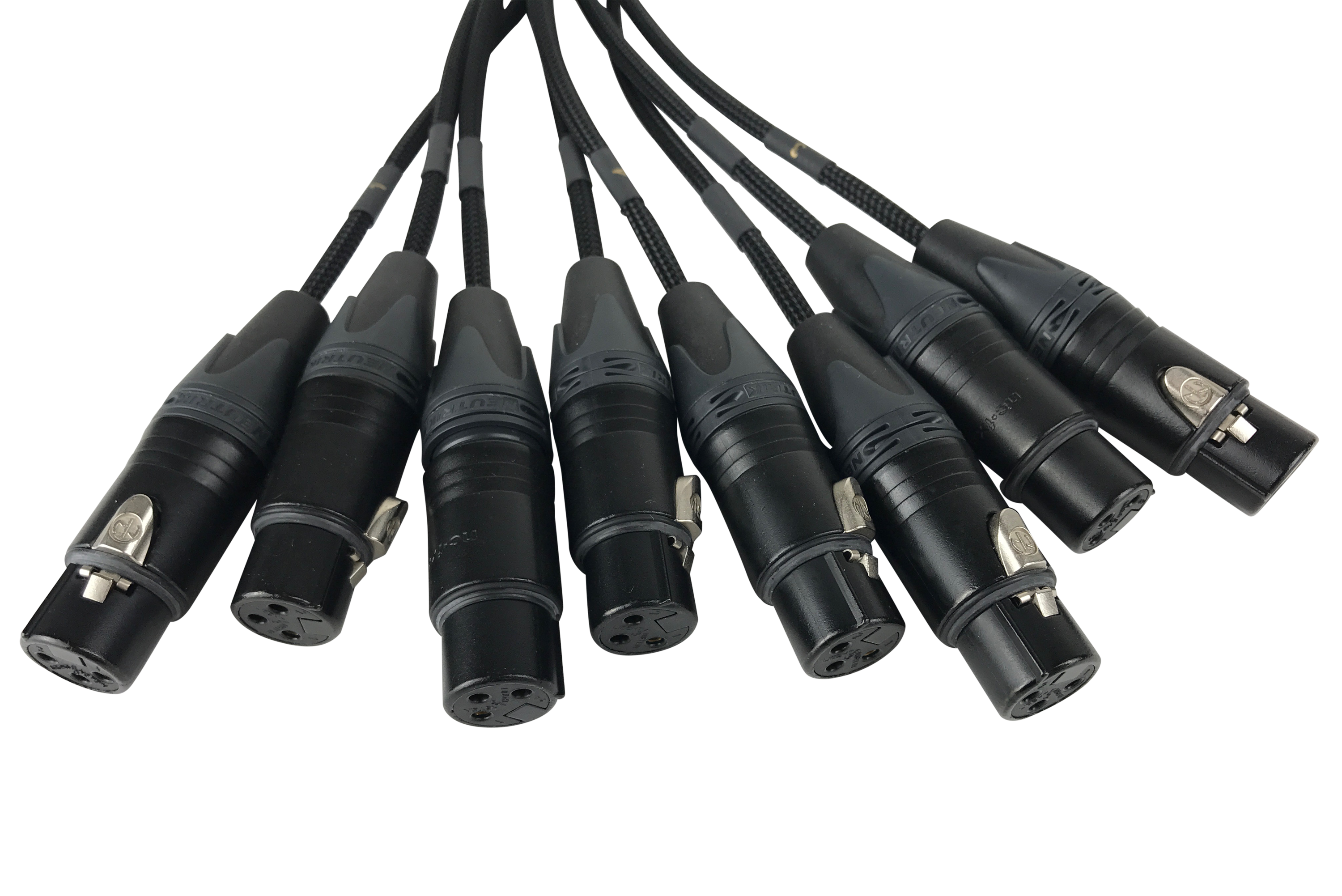

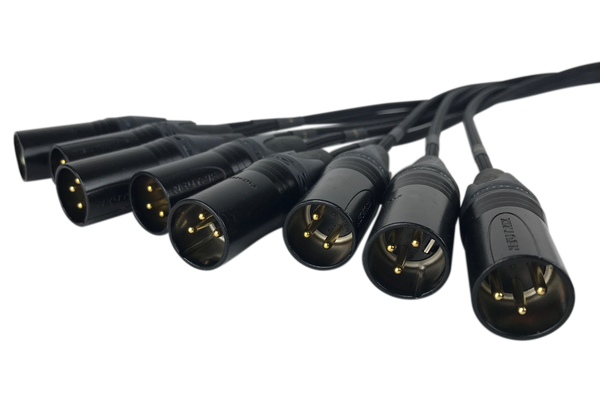

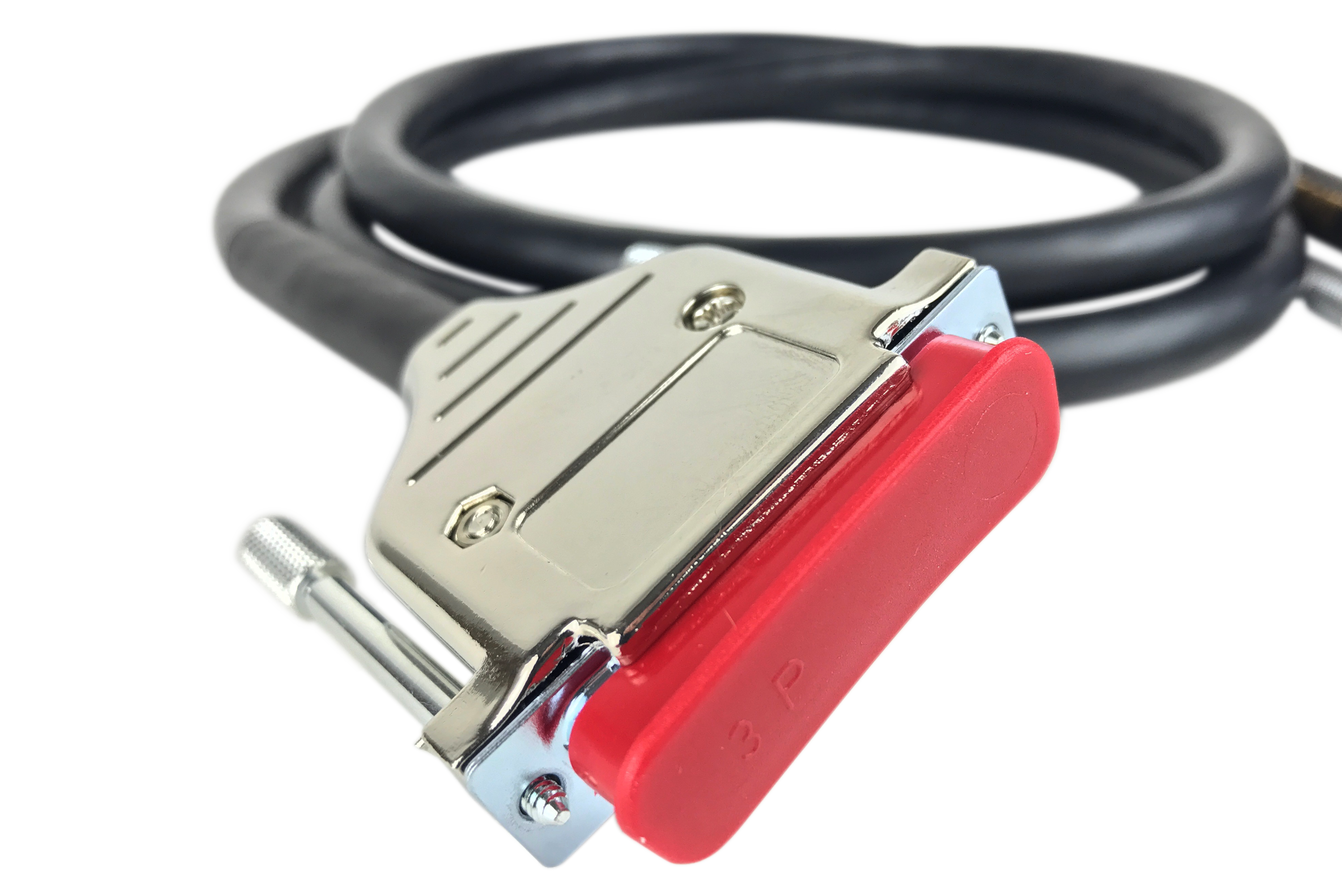

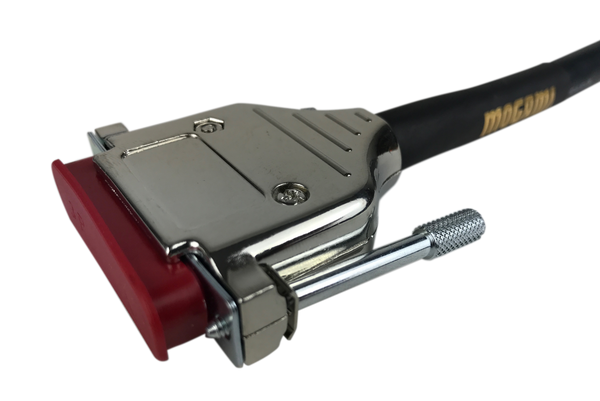

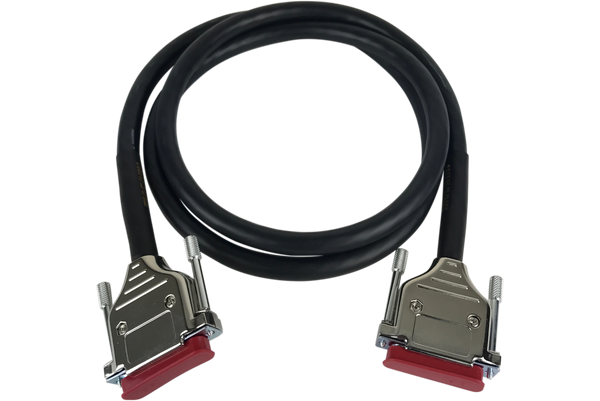

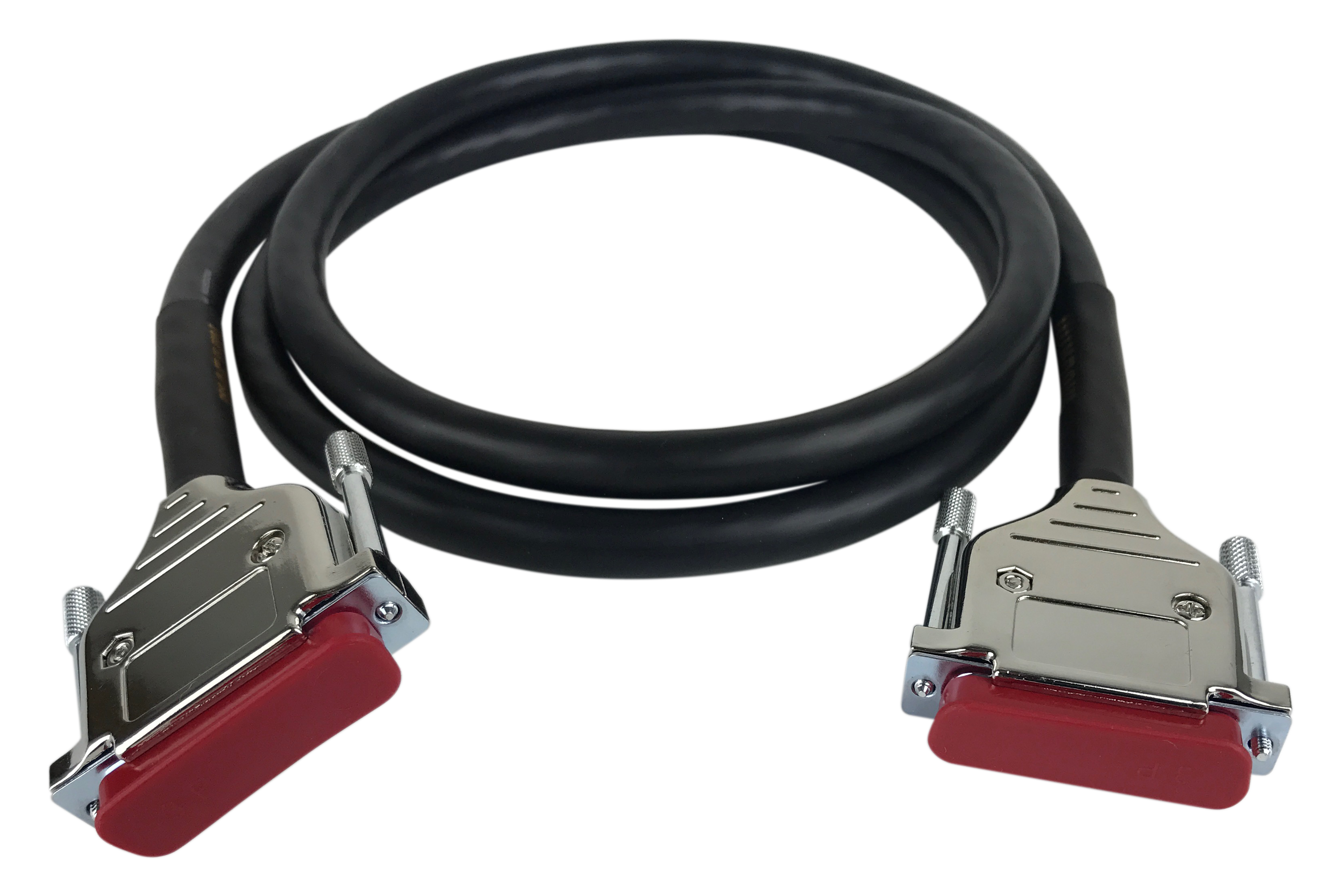

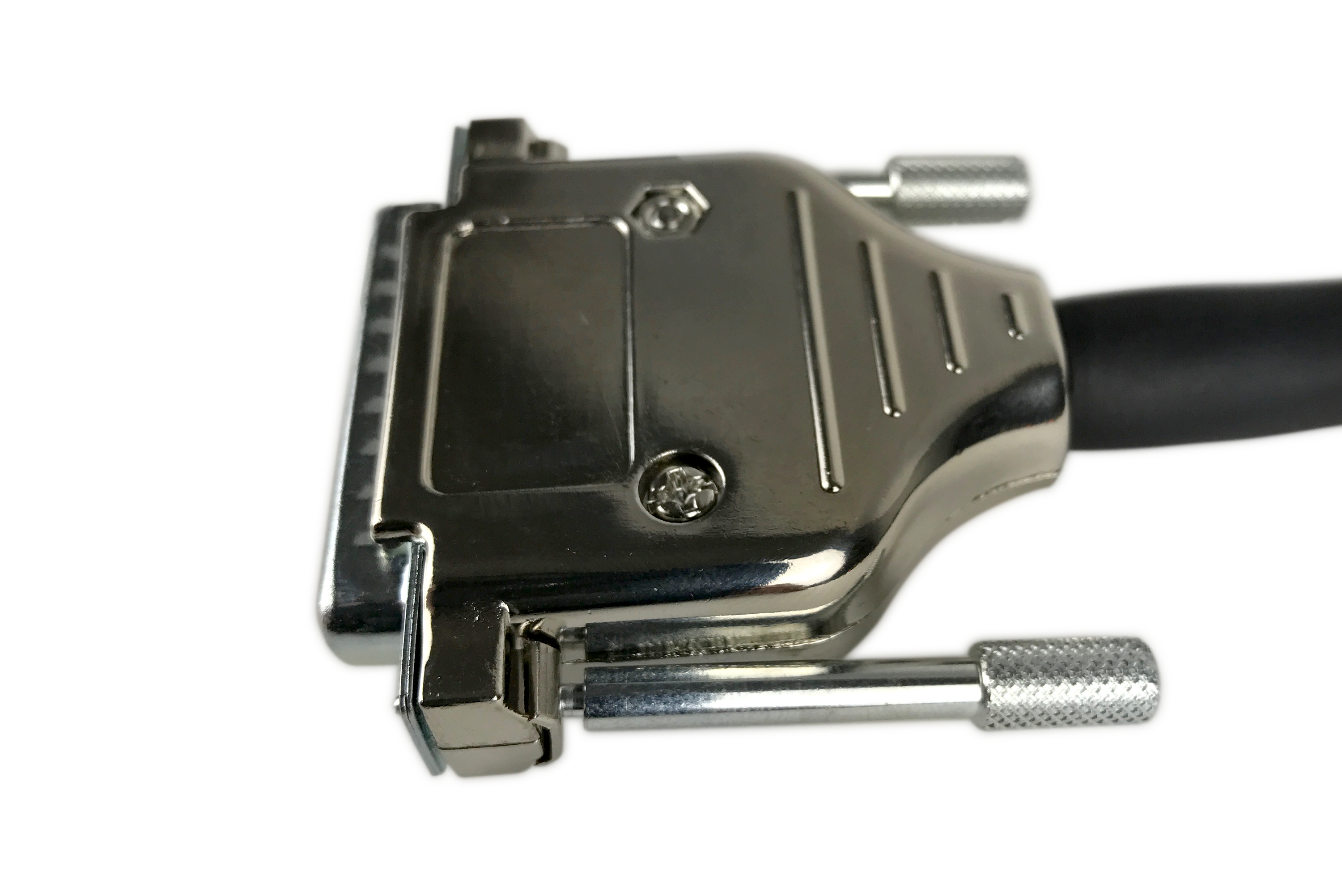

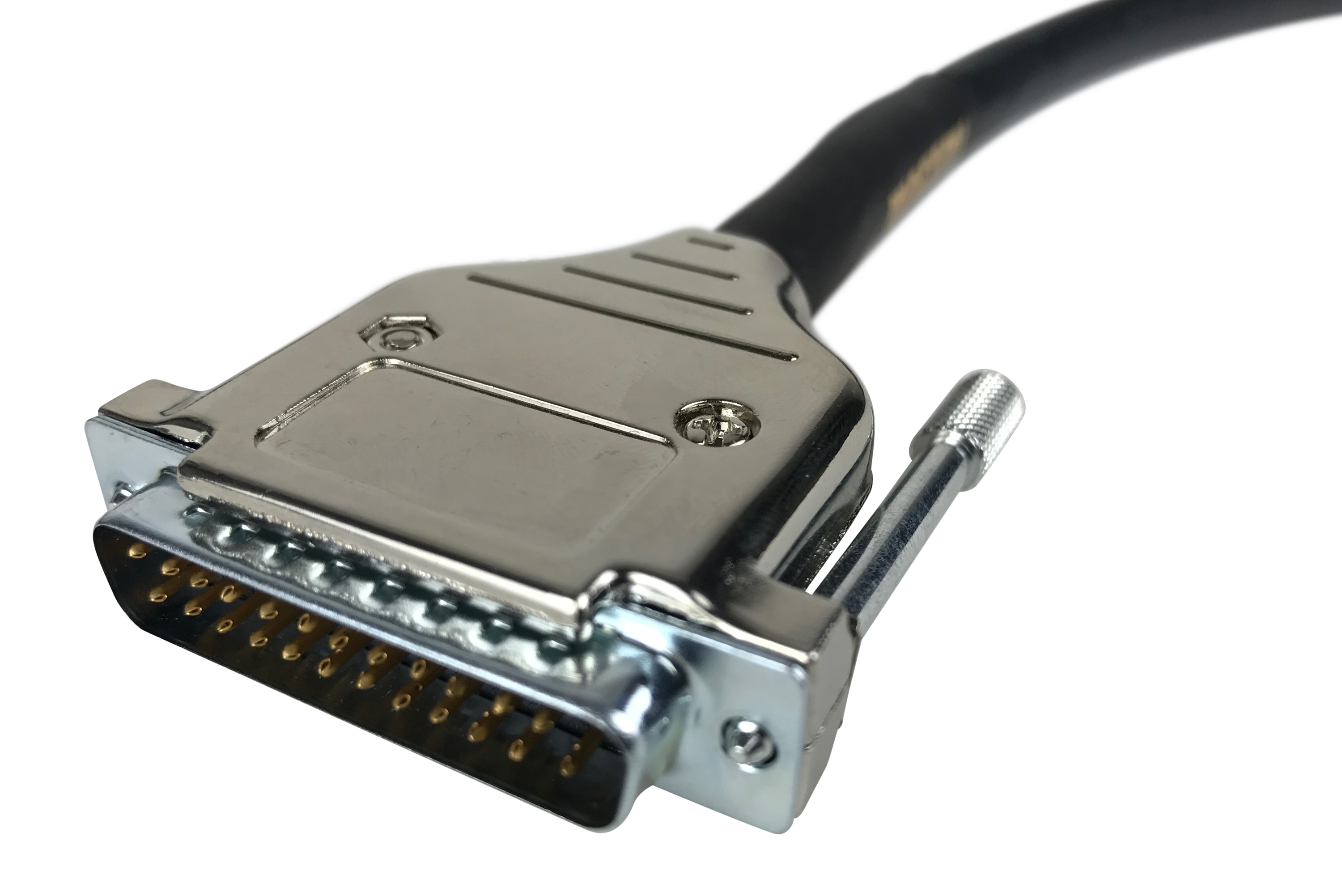

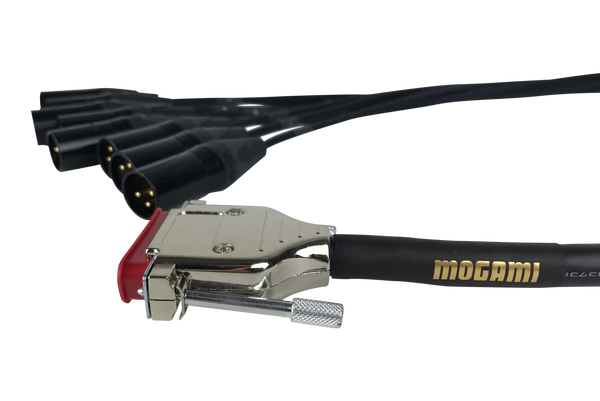

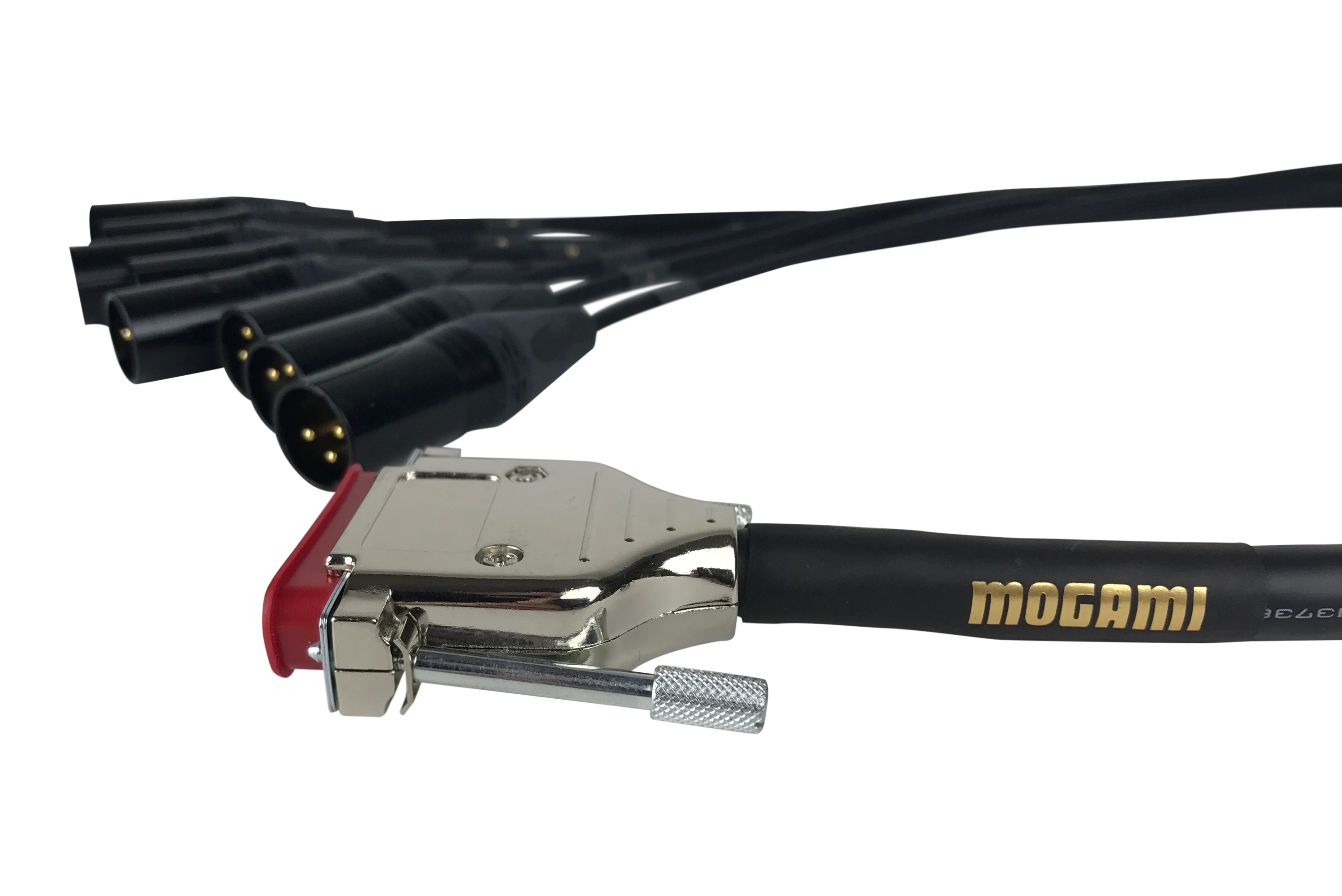

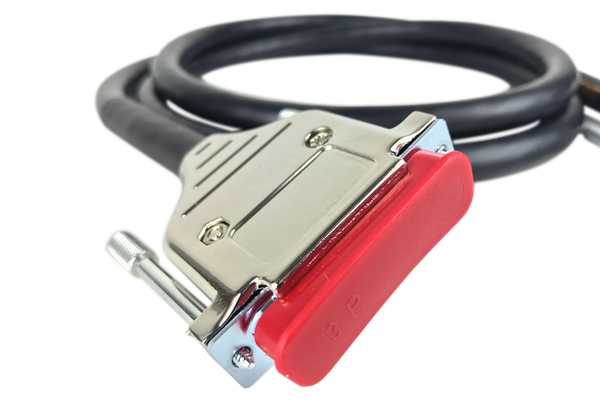

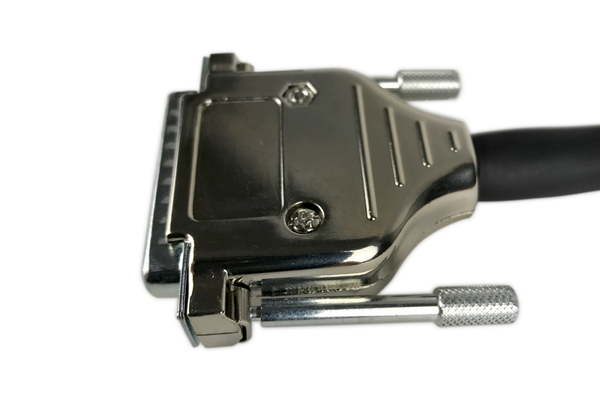

    • Available in DB25 to DB25, DB25 to XLR (male or female), or DB25 to 1/4" configurations.
    • Famous for neutral tone, remarkable detail, and noise-free background

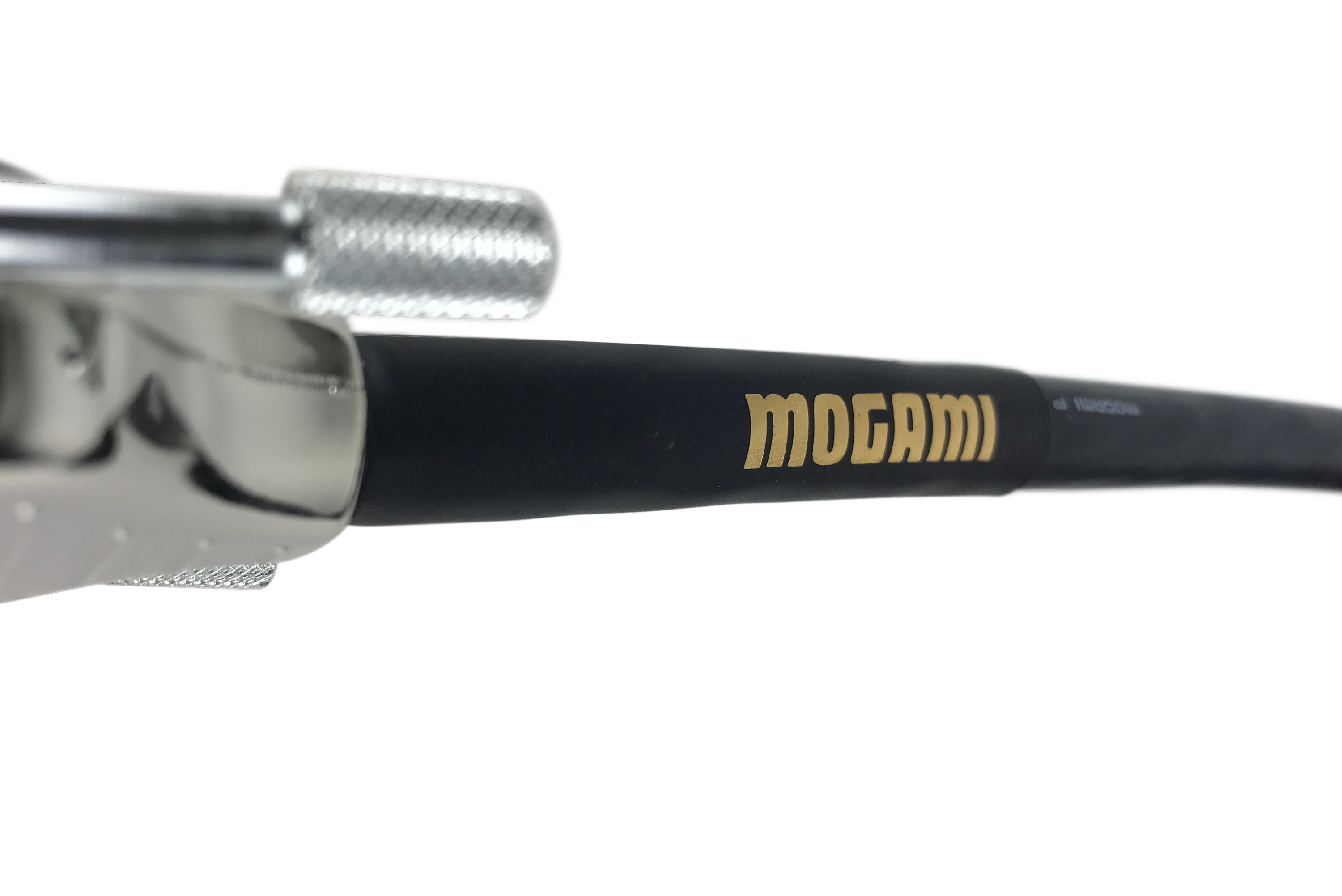

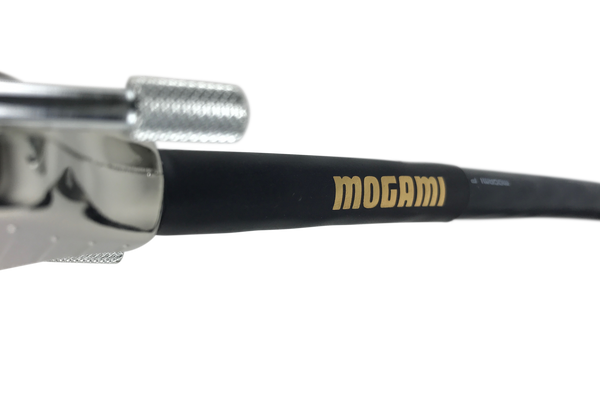

    • Channels are individually shielded with numbered, Techflex™ protected jackets

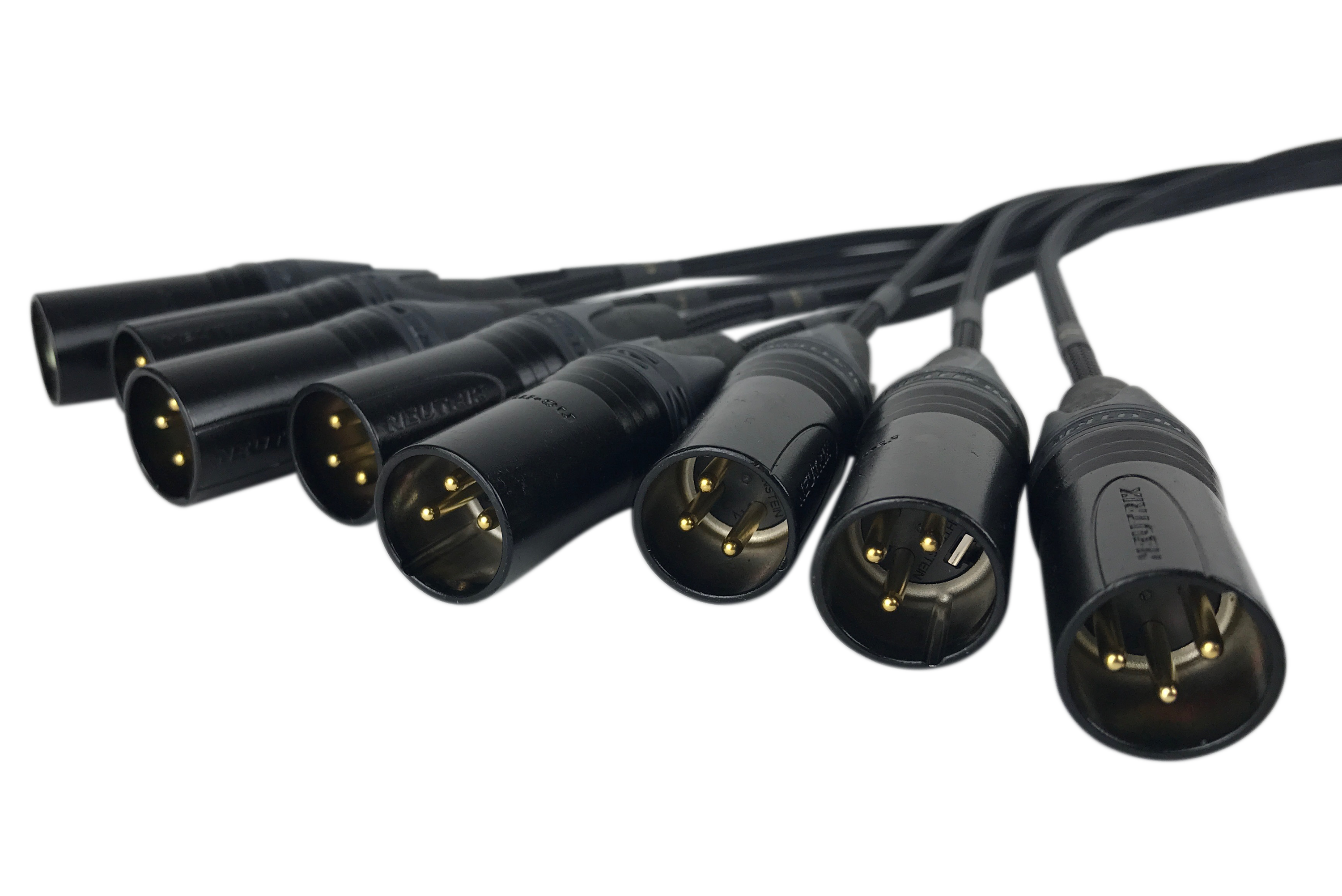

    • Assembled with top quality gold contact TRS and XLR connectors
    • Super-flexible handling ease
    • Lifetime warranty
  • Mogami multicore cables are designed for the highest level of audio performance and feature superb electrical and mechanical characteristics while remaining compact, super flexible and easy to use.

    • Individually twisted shielded pairs, available in 2 to 48 channels.
    • XLPE (Cross Linked Polyethylene) insulation provides superb electrical characteristics and will not melt or shrink back during soldering.
    • Rugged and flexible construction that is easy to handle, even at temperatures down to -20°C (-4°F).
    • Easy cable identification system:
      • Channel numbers are printed and underlined on each core jacket to ensure correct identification, regardless of which end is stripped.
      • Outer jackets of each pair are color coded by standard resistor color code, allowing quick identification of conductor pairs.
      • Inner conductors are also color coded based on the international standard resistor color code. Each pair is color coded by jacket and conductor color combination.
    • Each channel has a drain wire and served (spiral) bare copper shield. The drain wire simplifies termination and can be crimped by the same size contact as the inner conductor pair.
    • CL2 rated version available. Conductor size of CL2 rated version is thicker #25AWG so that it is also recommended for rugged application and firm and easier crimp terminal connector wiring as well as NEC fire regulation requirement.
