Internally Programmable RS-422 Patchbay, 2x24, 2 RU, RJ45 Rear Interface

Continue Shopping or Checkout

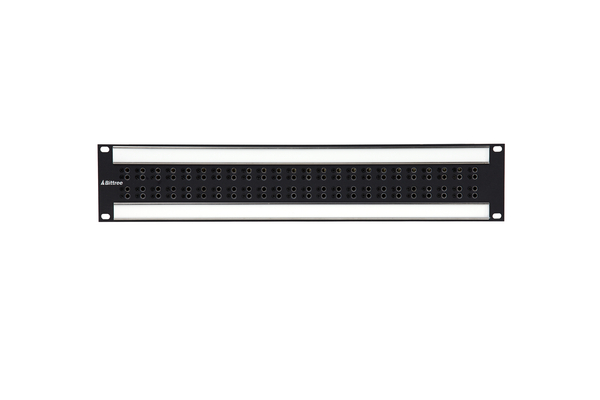

  • Bittree® Programmable RS-422 Patchbay in 2 RU with 2x24 Circuit Configuration
    • Ships preconfigured with your preferred Normalling configuration; can be easily reprogrammed via shunts under the top dust cover
    • Robust six-wire circuits accommodate RS-422 signals and provide two extra circuits for additional applications or protocols
    • Handles bi-directional signals such as SMPTE 207M, RS-422, RS-424, RS-232 and other general purpose interface applications
    • Uses reliable TT (Bantam) audio jacks and patch cables

    TT (Bantam) Jack Properties:
    • Rated to 30,000 minimum insertion cycles
    • Copper-nickel-silver alloy leaf springs with gold-alloy cross bar switching contacts and nickel-plated sleeve bushings
    • Rugged nickel-plated, cold-rolled steel box-frame construction

    Panels Features:
    • 3/16” (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
    • Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
    • 2 x DS800-15 designation strips (extruded aluminum bars with clear plastic snap-over caps)

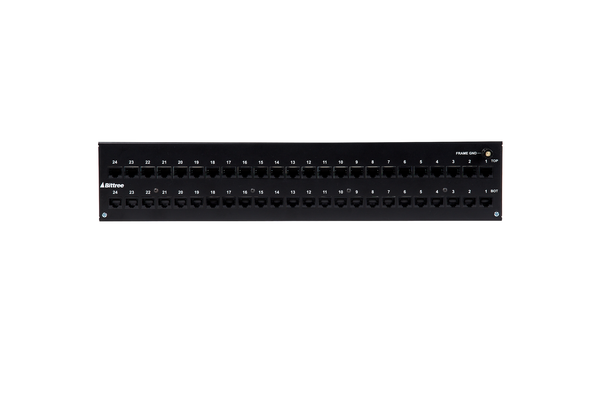

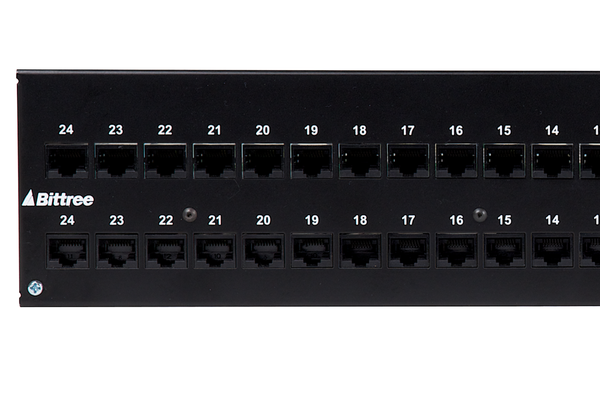

    • RJ45 rear interface

    • Normalling – circuits can be programmed to full normal, half normal or non-normal

    • RoHS Compliance – See our RoHS compliance statement to learn more



  • Product Files:
    Circuit Schematics Coming Soon
    Programming Instructions Coming Soon
    Designation Strip Template Coming Soon
    Pinout Coming Soon
    Technical Drawings:
    B422FI6TRJ4524 Coming Soon Coming Soon
    B422NI6TRJ4524 Coming Soon Coming Soon
