DS870-10-ASSY Patchbay Designation Strip Assembly and Components


Continue Shopping or Checkout

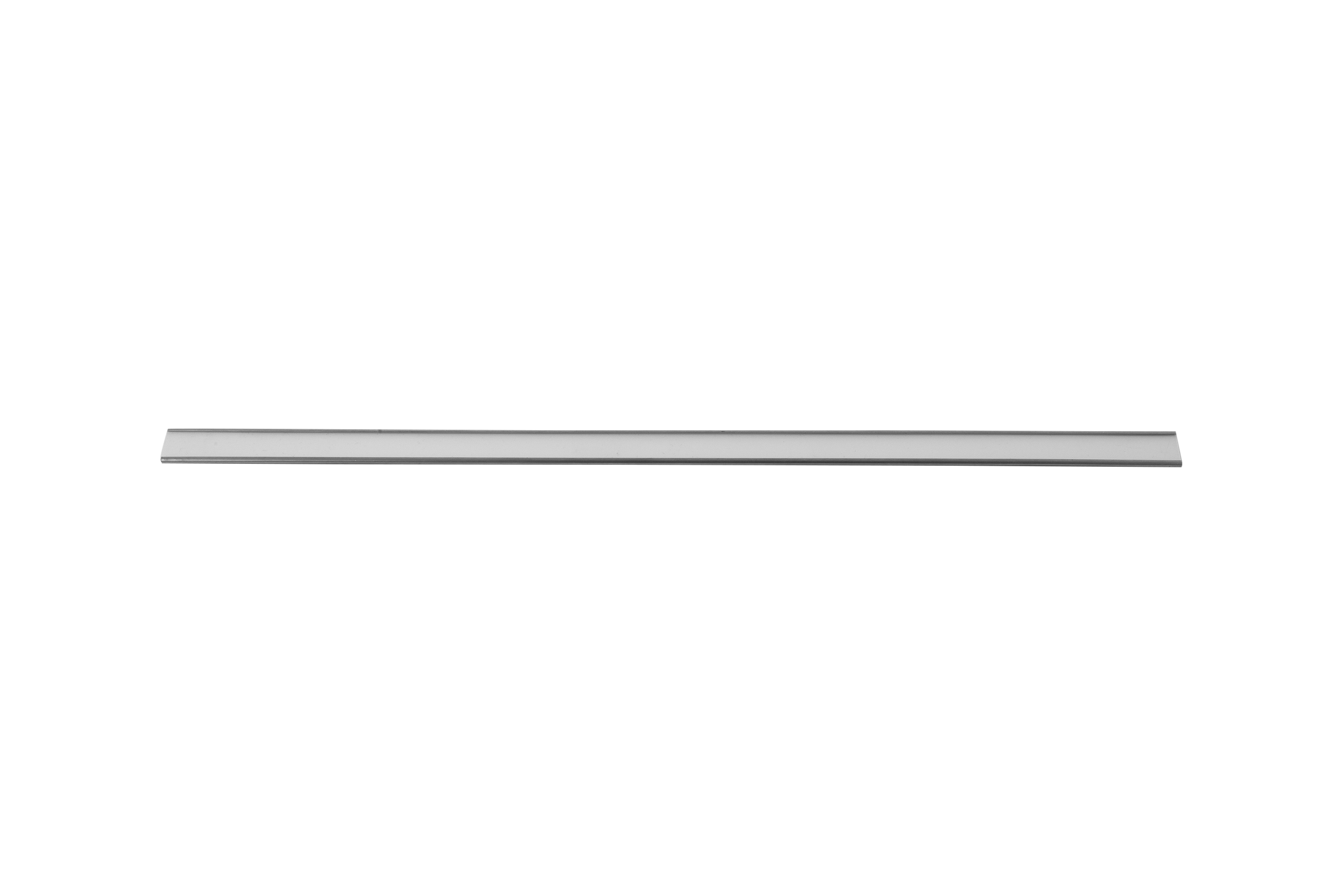

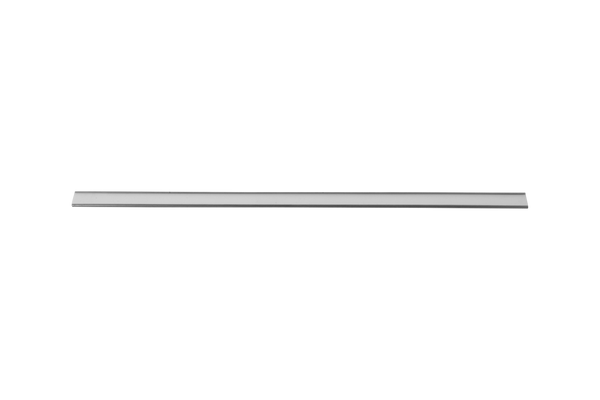

  • Bittree® DS870-10-ASSY Designation Strip Assembly and Components

    Designed for use with:
    • Video Patchbays:
    - Mini-WECo 3G and 12G+:  2x32 2RU
    - Standard WECo:  2x12 2RU, 2x24 2RU, 2x26 2RU
    • Audio Patchbays:
    - 968 and 968S Series: 2x48 2RU
    - 961 Series:  2x48 2RU
    - 481 Series:  2x24 2RU
    - 521 Series:  2x26 2RU

    Product Features:
    • Stainless steel slider with screw mounting holes
    • Non-glare Lexan cover
    • White styrene insert
    • 0.87" (22.09 mm) high, 16.56" (42.06 cm) long
    • Safe view:  0.69" (17.526 mm)

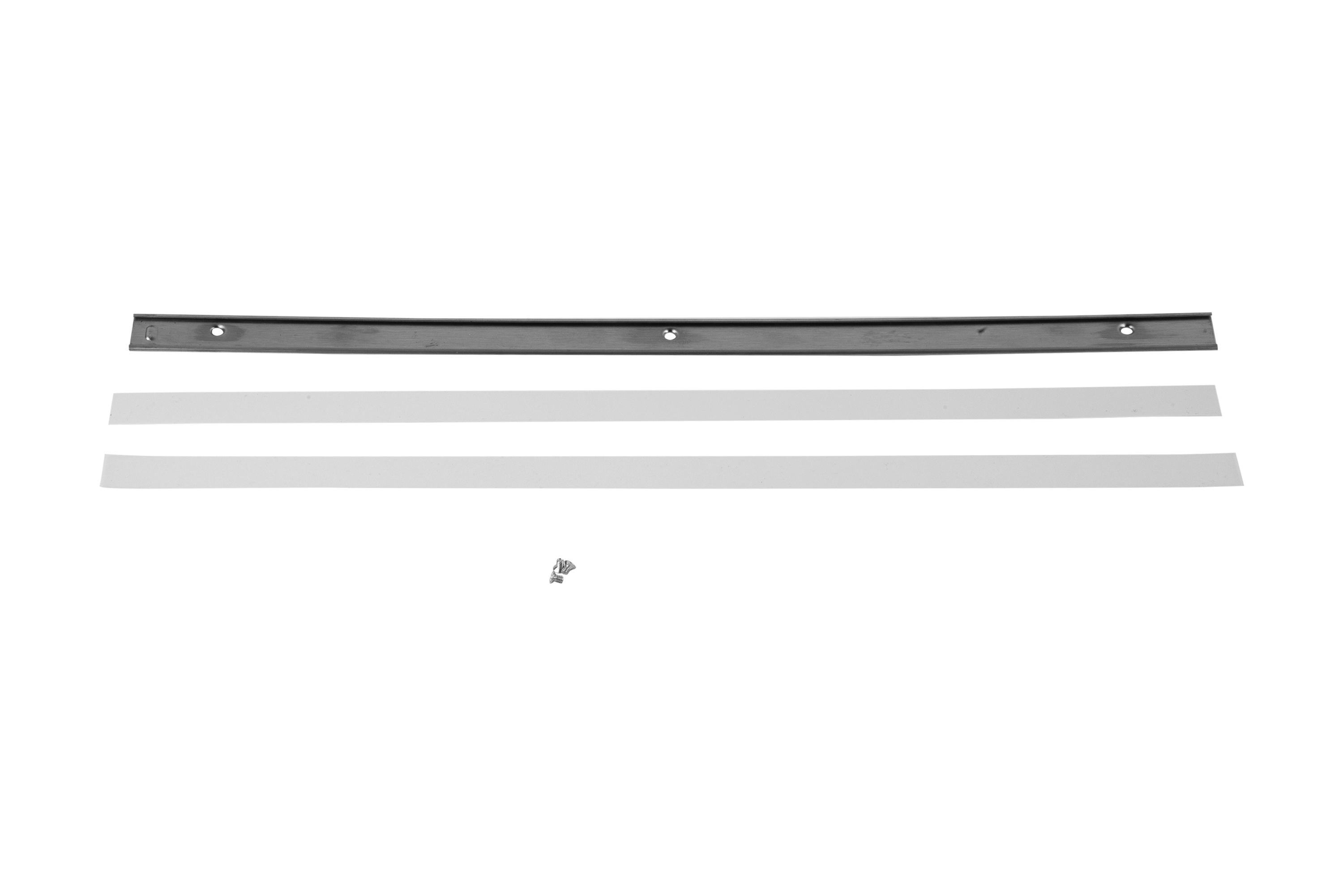

    • Available Components:
    - DS870-10-ASSY:  Complete assembly including stainless steel holder, White styrene insert, clear plastic cover, and mounting screws
    - DS870-10/S:  Stainless steel holder
    - DS870-10/D:  White styrene insert
    - DS870-10/P:  Non-glare Lexan cover

    • RoHS Compliance – See our RoHS compliance statement to learn more
  • Product Files:
    Designation Strip Template DOCX
    Technical Drawings:
    DS870-10-ASSY DWG PDF
    DS870-10/S DWG PDF
    DS870-10/D DWG PDF
    DS870-10/P DWG PDF
