DS430-10-ASSY Patchbay Designation Strip Assembly and Components


Continue Shopping or Checkout

  • Bittree® DS430-10-ASSY Designation Strip Assembly and Components

    Designed for use with:
    • Video Patchbays:
    - Micro-Video:  2x48 1RU
    - Mini-WECo 3G and 12G+:  3x32 2RU
    - Standard WECo:  3x24 2RU
    • Audio Patchbays:
    - 961 Series:  2x48 1RU Over/Over
    • Data Patch Panels:
    - Keystone Panels:  1x24 1RU

    Product Features:

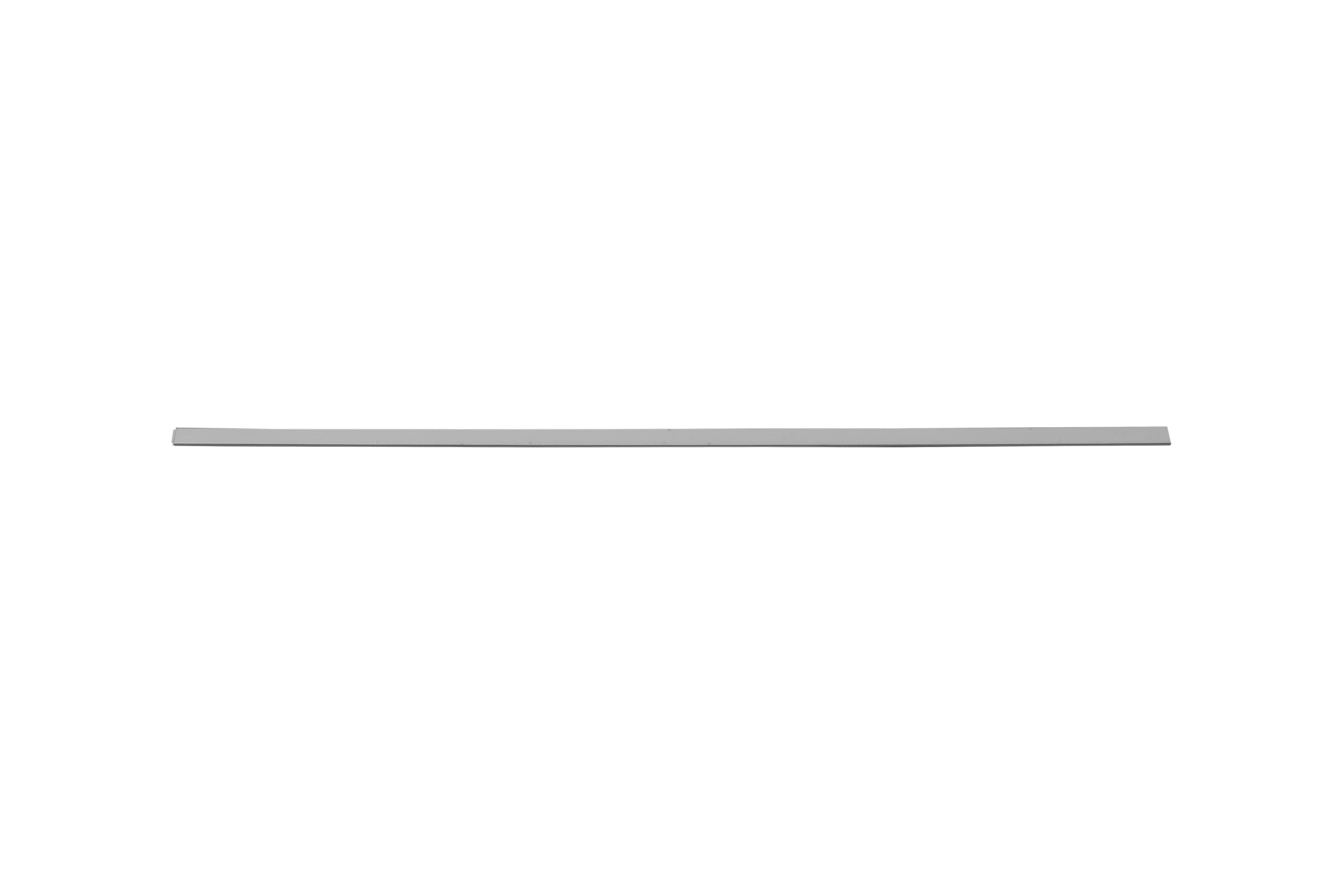

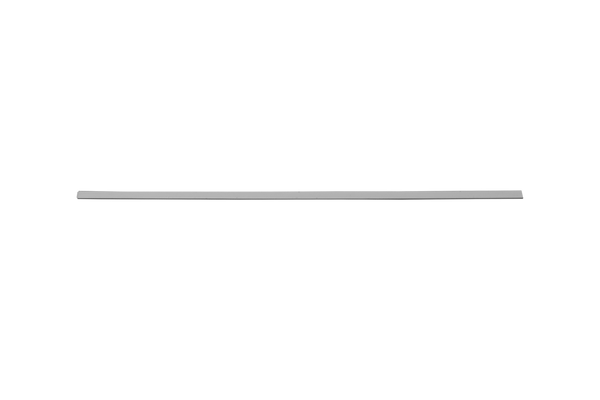

    • Extruded aluminum bar with black anodization
    • Clear plastic snap over cap
    • 0.43" (10.92 mm) high, 16.9" (42.92 cm) long
    • Safe view:  0.375" (9.525 mm)


    • Available Components:

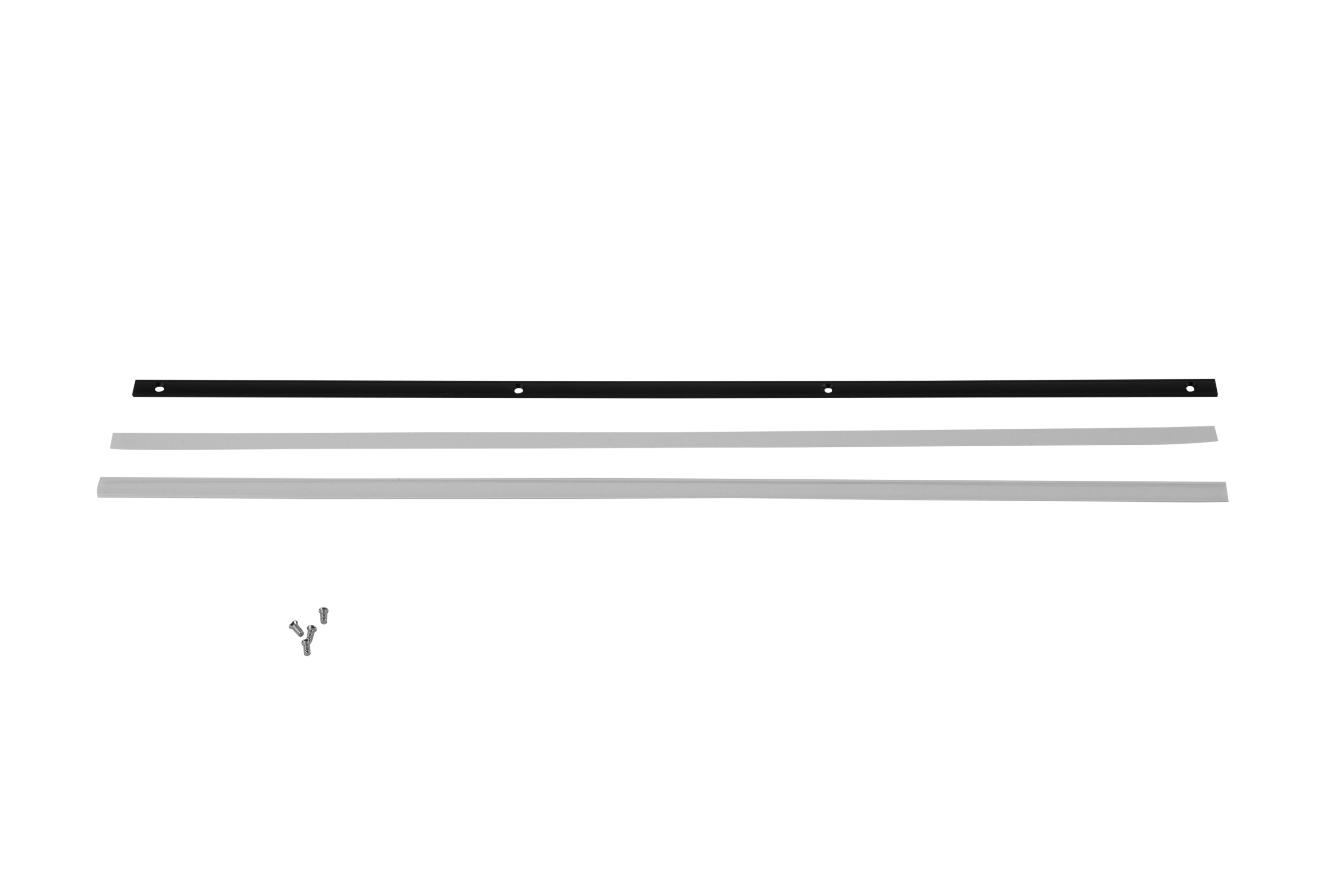

    - DS430-10-ASSY:  Complete assembly including extruded aluminum bar, clear plastic snap over cap, and mounting screws
    - DS430-10/B:  Extruded aluminum bar only
    - DS430-10/D:  White styrene insert only
    - DS430-10/C:  Clear plastic snap over cap only

    • RoHS Compliance – See our RoHS compliance statement to learn more
  • Product Files:
    Designation Strip Template DOCX
    Technical Drawings:
    DS430-10-ASSY DWG PDF
    DS430-10/B DWG PDF
    DS430-10/D DWG PDF
    DS430-10/C DWG PDF
