DAF32X Video Distribution Amplifier Frame

Continue Shopping or Checkout

  • Bittree® DAF32X Video Distribution Amplifier Frame
    For use with DABX Video Distribution Cards
    (sold separately)
    For use with DAFAN (sold separately)
    Remote IP confidence status monitoring available with external remote interface box (sold separately)

    DAF32X Video Distribution Amplifier Frame:

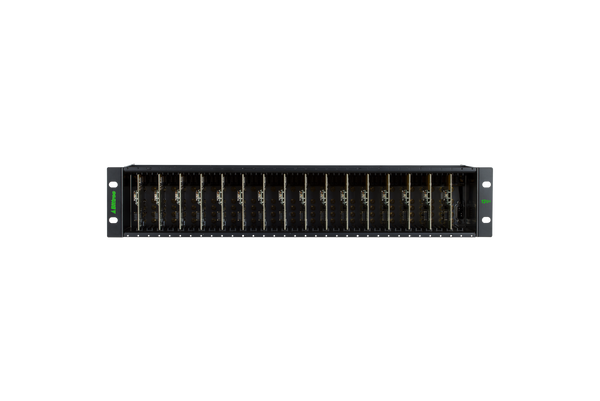

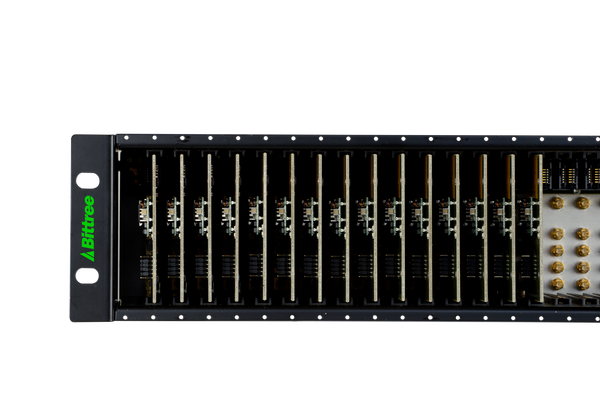

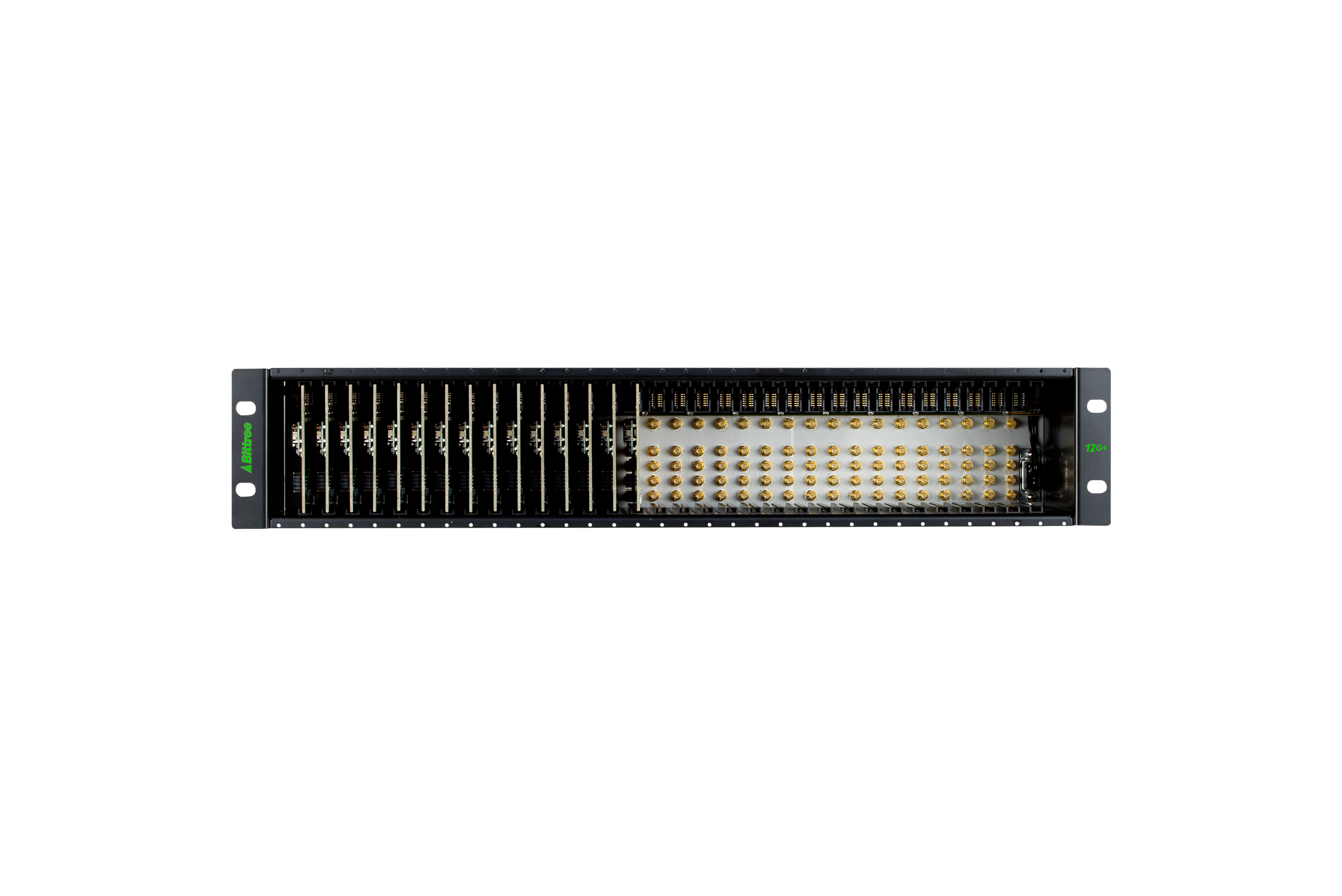

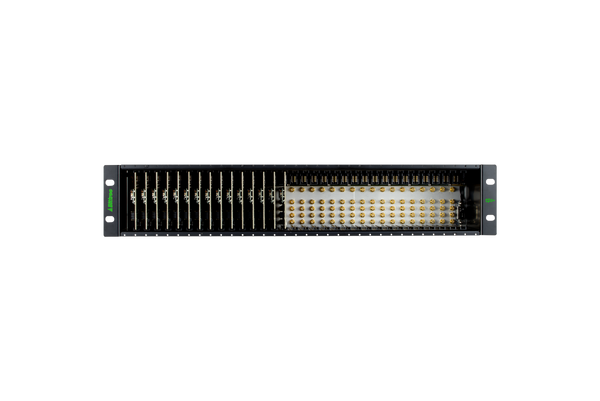

    • The DAF32X is a 2RU frame which houses the DABX video distribution amplifiers
    • Up to 32 1-in by 4-out distribution amps per frame
    • Compact design offers high module density
    • Accepts all Bittree X modules
    • Wideband frame for sd-sdi, and hd-sdi & 4K UHD 12G SDI

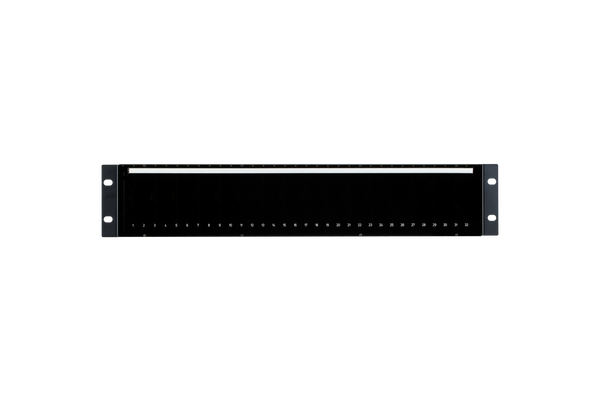

    • See thru front cover allows quick status indication

    • Height 3.5 inches (2RU)
    • Width 19 inches
    • Depth 7 inches
    • Nominal Weight 12 lbs. FULLY LOADED

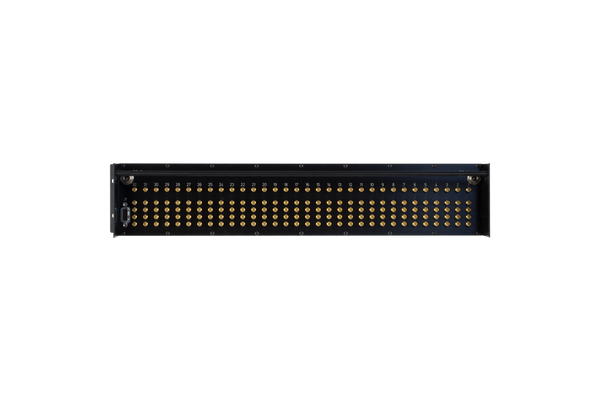

    • Input Coax
    • Connectors DIN 1.0/2.3, 75 ohm
    • Number of inputs up to 32
    • Number of outputs up to 128

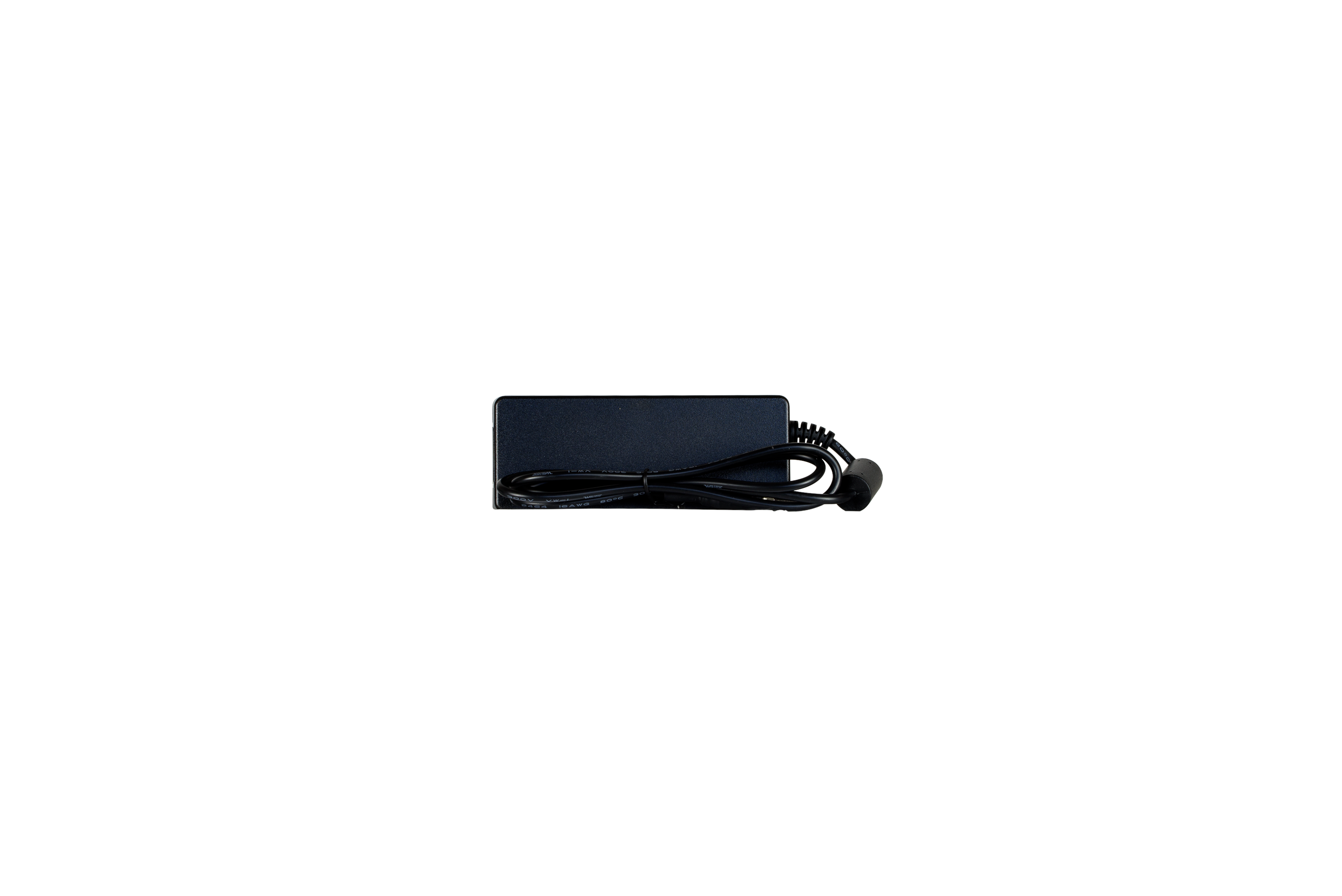

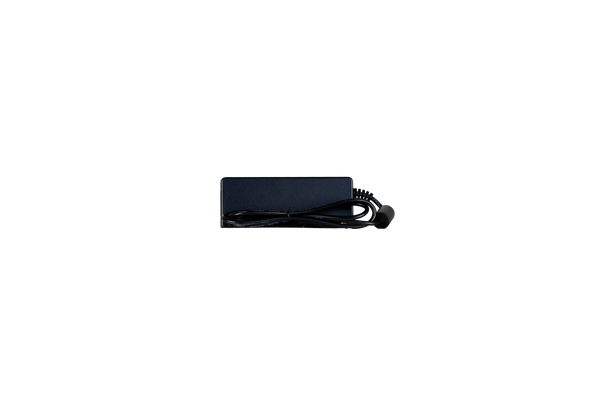

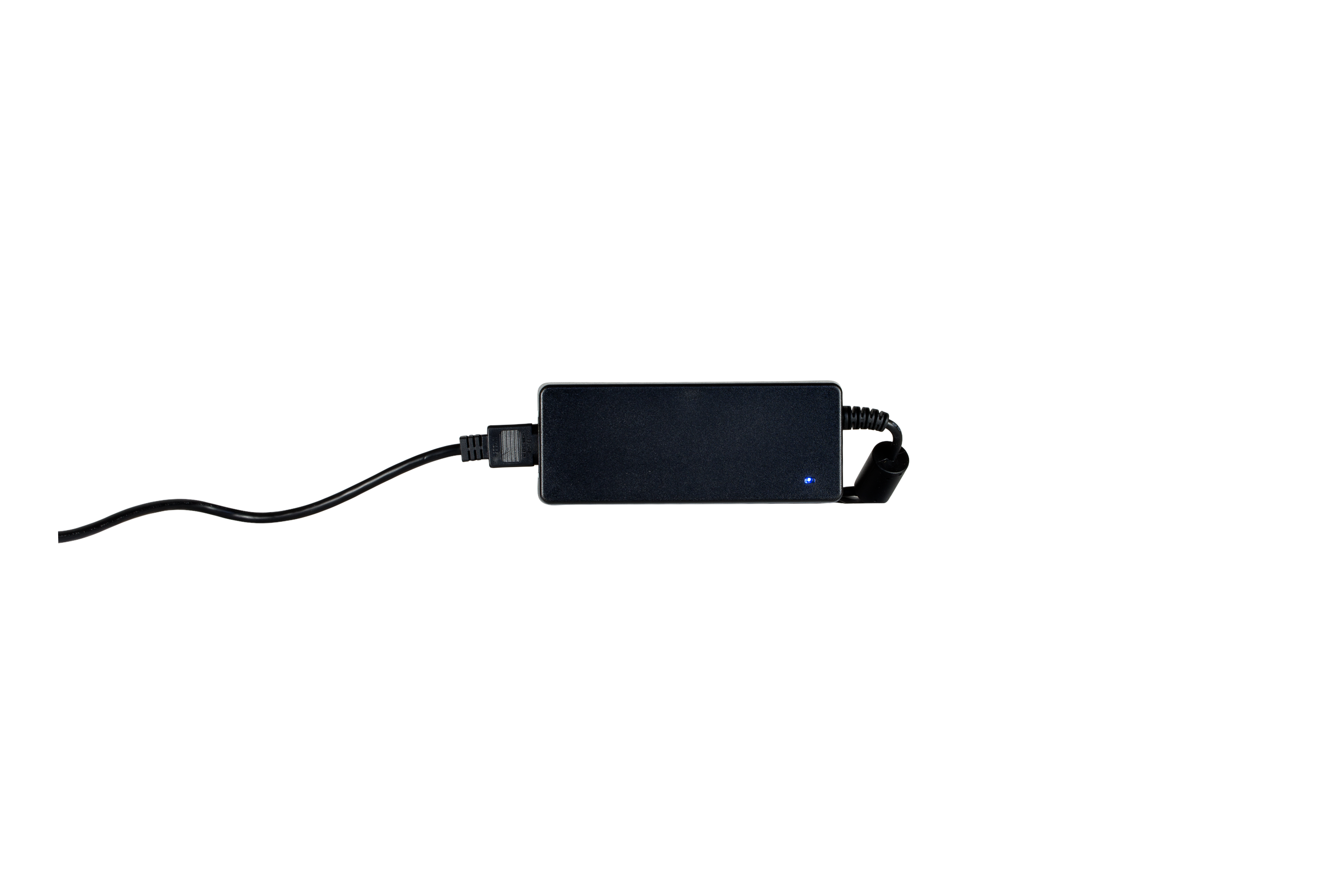

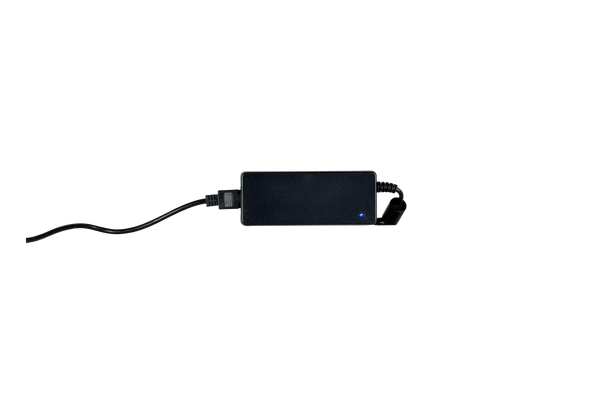

    • Type External, 48Vdc
    • Input Voltage 90-264 Vac, 47-63 Hz, Single Phase
    • Redundancy N+1, hot swappable modules
    • Power Factor >.99
    • EMI complies with EN55022 & FCC Class A

  • Compliance:
    • RoHS Compliance – See our RoHS compliance statement to learn more



  • Product Files:
    Data Sheet PDF
    Designation Strip Template

Category: Distribution Amps (DA)

Type: Video
