Bittree® DAF32FX Video Distribution Amplifier Frame
For use with DABFX Video Distribution Cards (sold separately)
For use with DAFAN (sold separately)
Remote IP confidence status monitoring available with external remote interface box (sold separately)

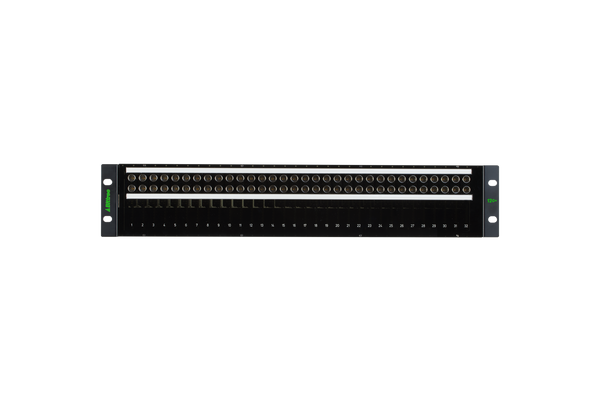

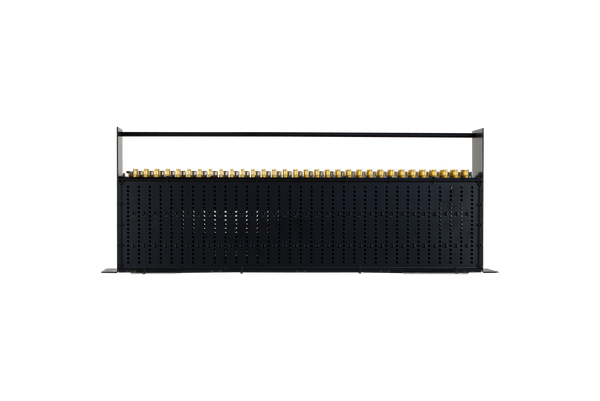

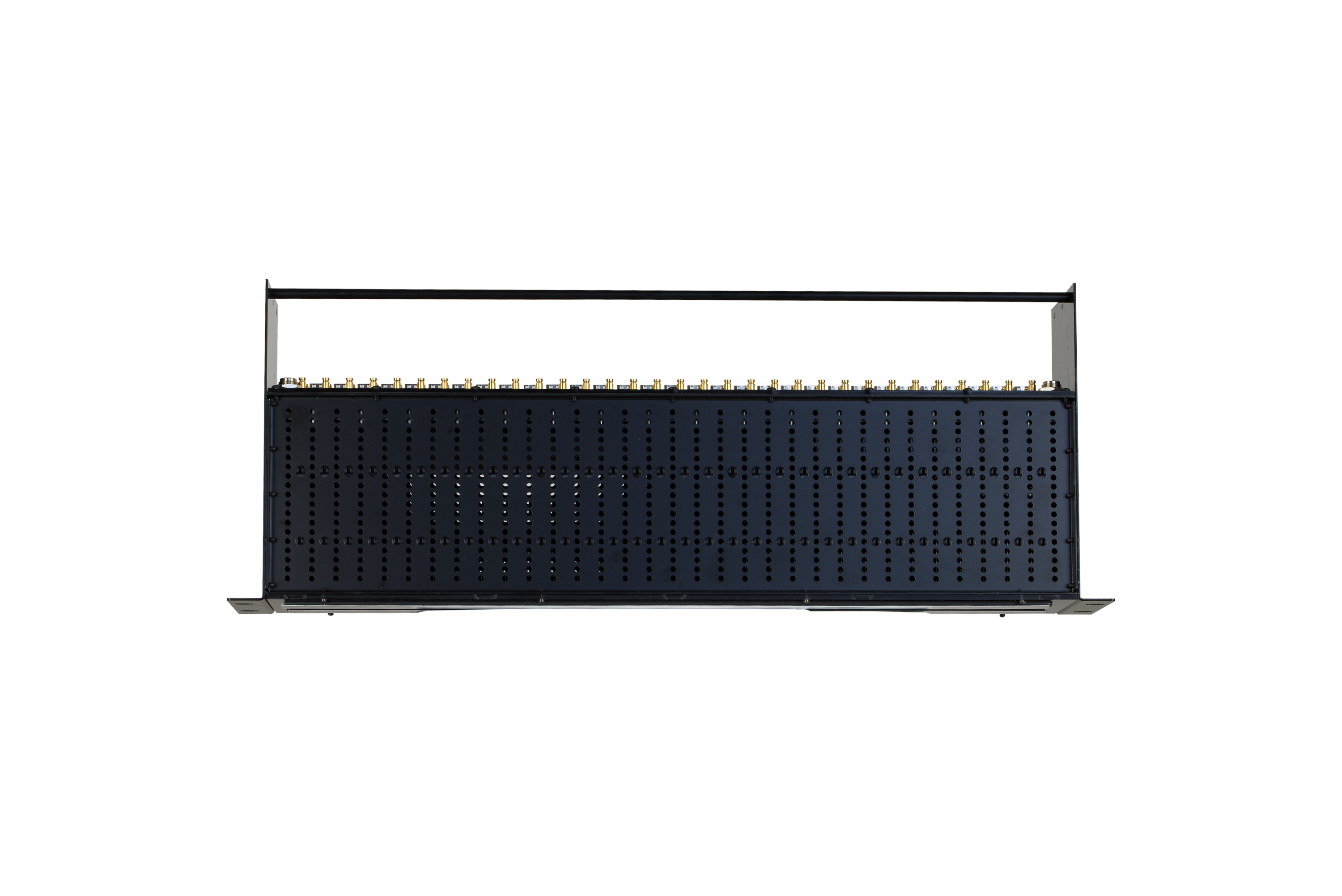

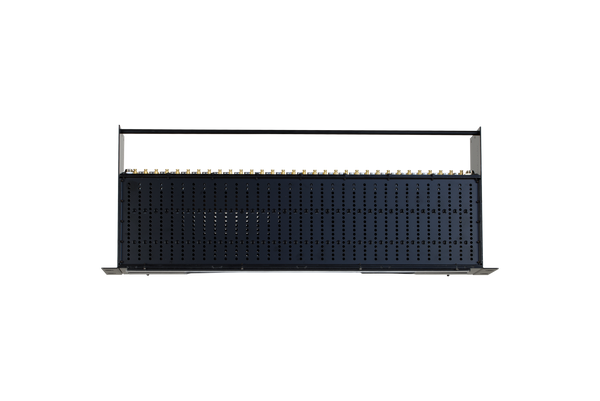

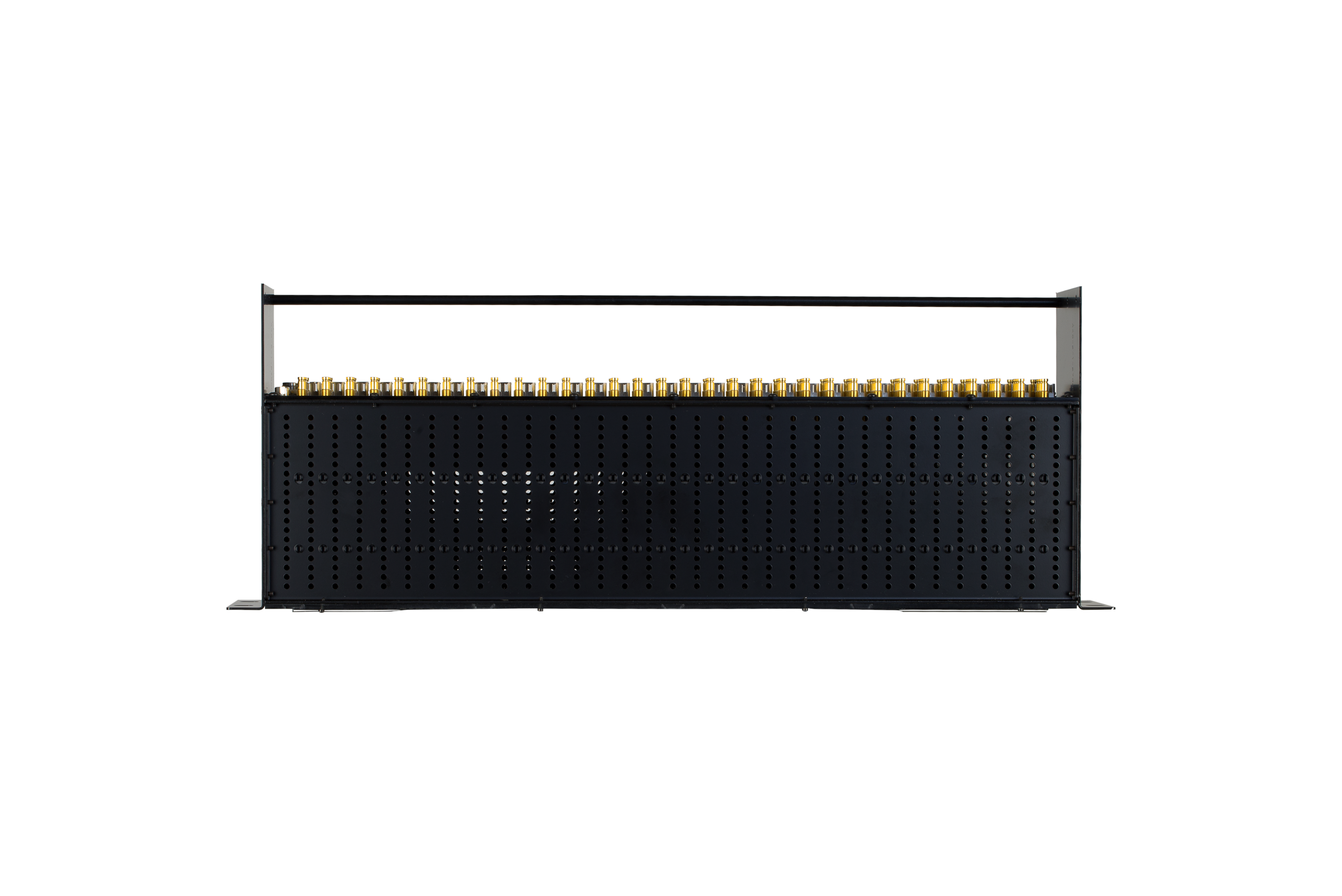

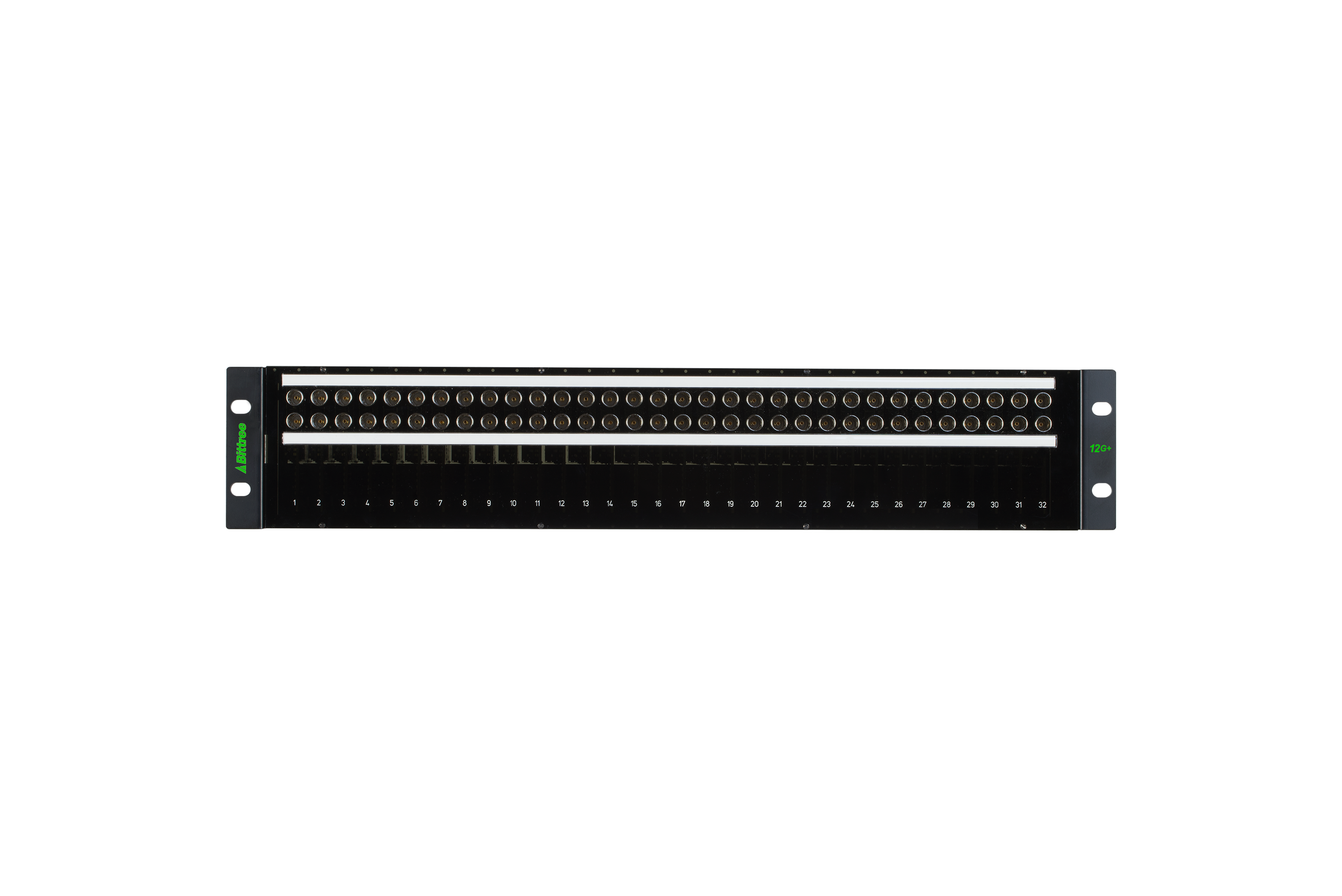

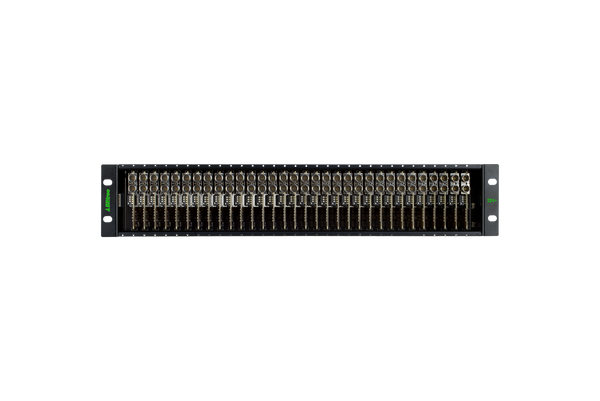

DAF32FX Video Distribution Amplifier Frame:
• The DAF32FX is a 2RU frame which houses the DABFX video distribution amplifiers
• Up to 32 1-in by 4-out distribution amps per frame
• Compact design offers high module density
• Accepts all Bittree FX modules
• Wideband frame for in/out SFP sd-sdi, and hd-sdi & 4K UHD 12G SDI IP
• See thru front cover allows quick status indication
Mechanical
• Height 3.5 inches (2RU)
• Width 19 inches
• Depth 7 inches
• Nominal Weight 18 lbs. FULLY LOADED
Electrical

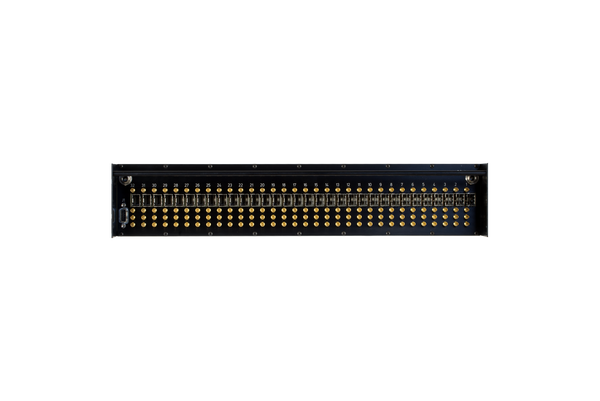

• Input Coax and SFP
• Connectors DIN 1.0/2.3, 75 ohm, and SFP
• Number of inputs up to 32
• Number of outputs up to 128
Power

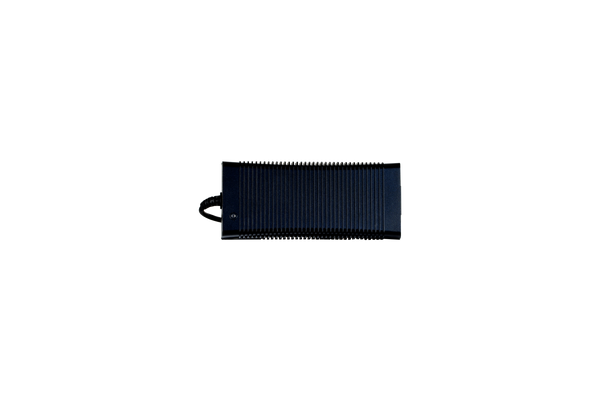

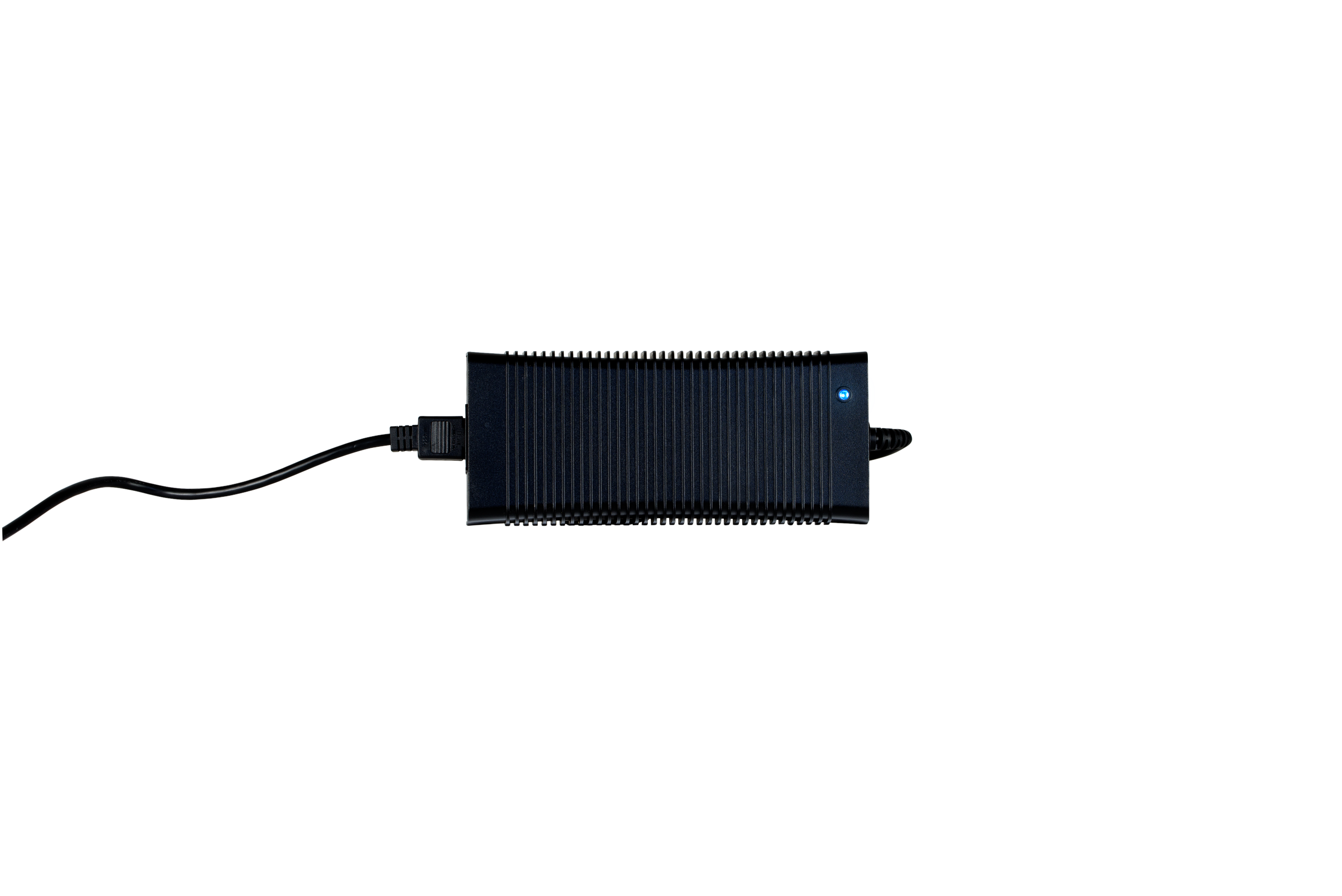

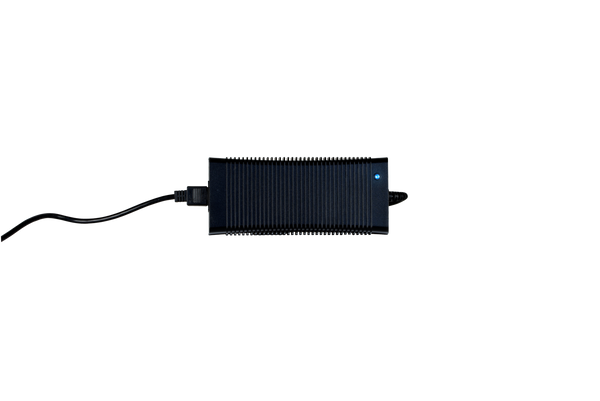

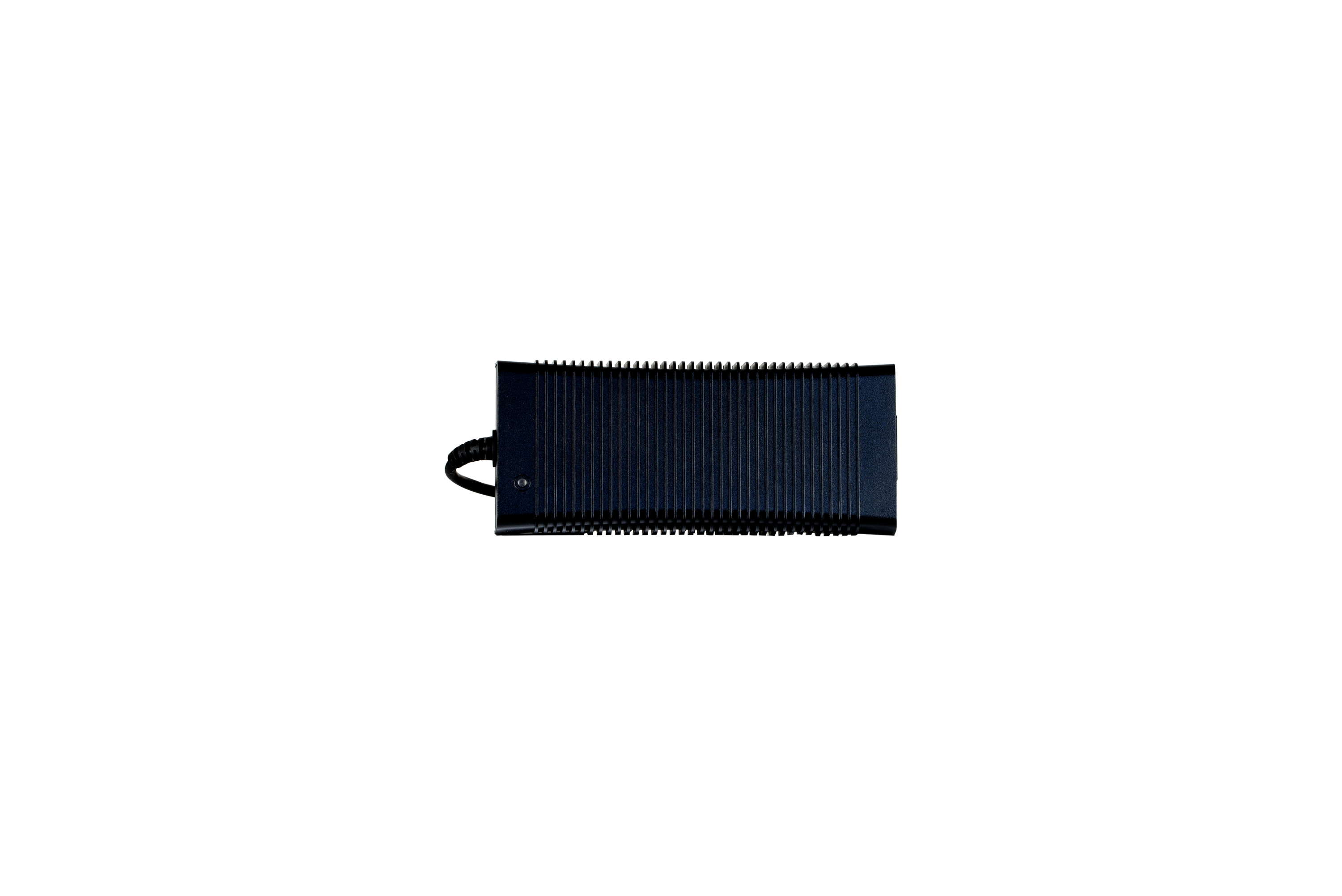

• Type External, 48Vdc Input Voltage 90-264 Vac, 47-63 Hz, Single Phase
• Card slot power independently isolated from each other
• Redundancy N+1, hot swappable modules
• Power Factor >.99
• EMI complies with EN55022 & FCC Class A
Compliance:
-
