Active RS-422 Patchbay, 2x32, 2 RU, DE-9 Rear Interface

Continue Shopping or Checkout

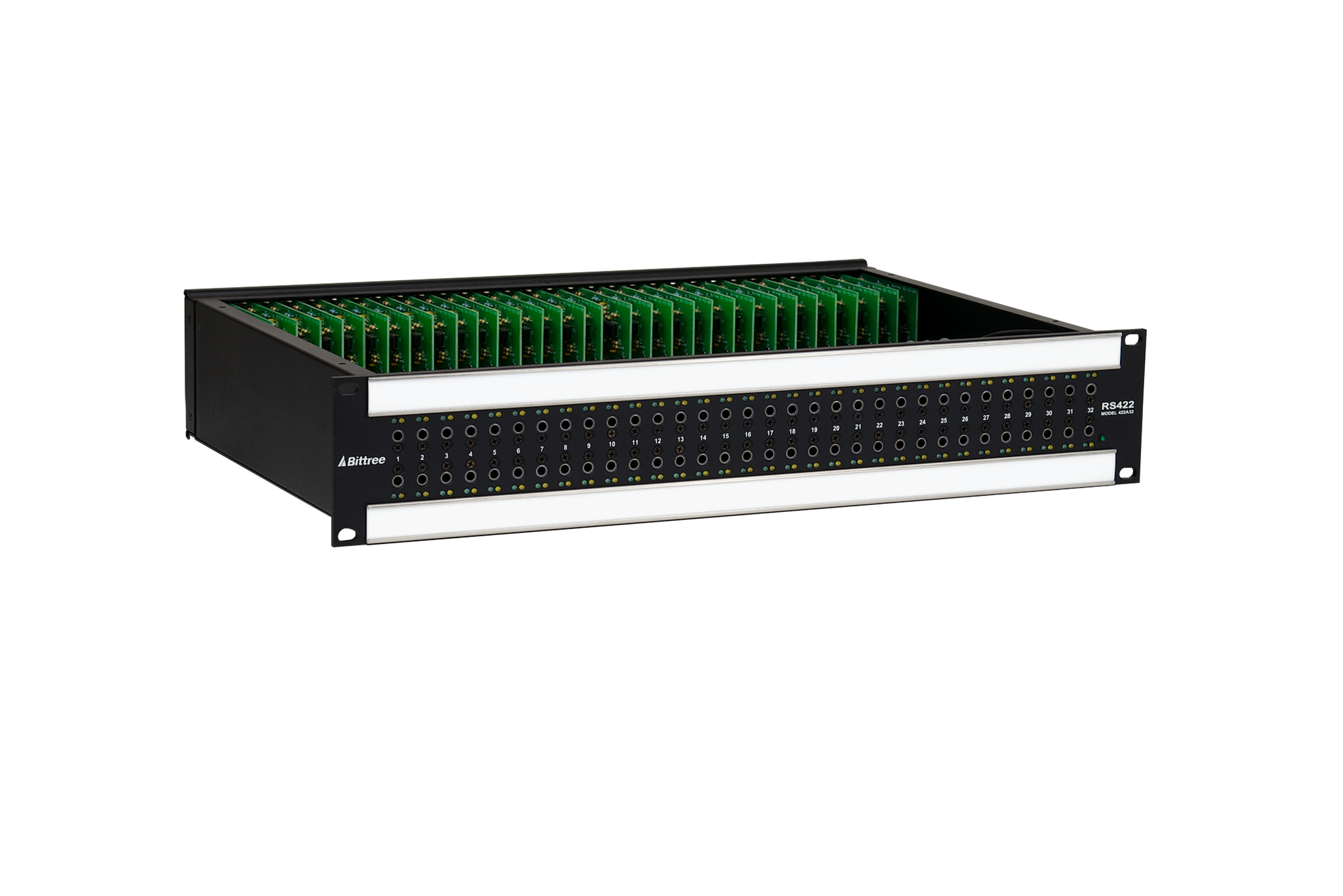

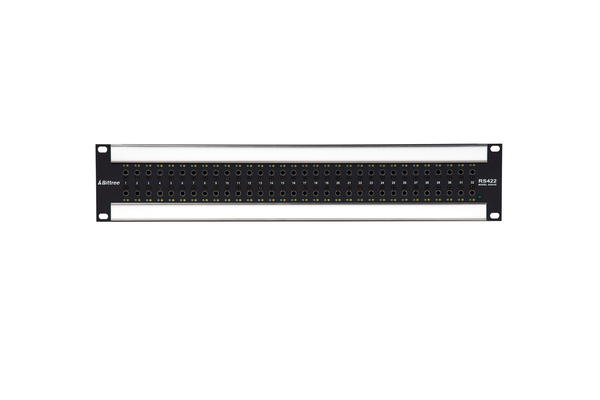

  • Bittree® Active RS-422 Patchbay in 2 RU with 2x32 Circuit Configuration
    • Efficient 2x32 circuit configuration perfectly matches standard routers
    • SMPTE 207M compliant; accommodates remote delegation protocols such as Sony and Lynx

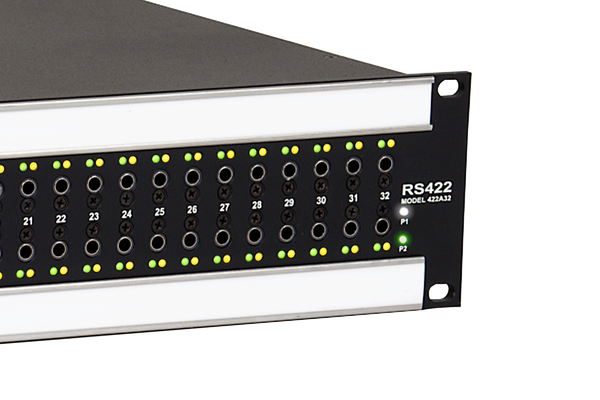

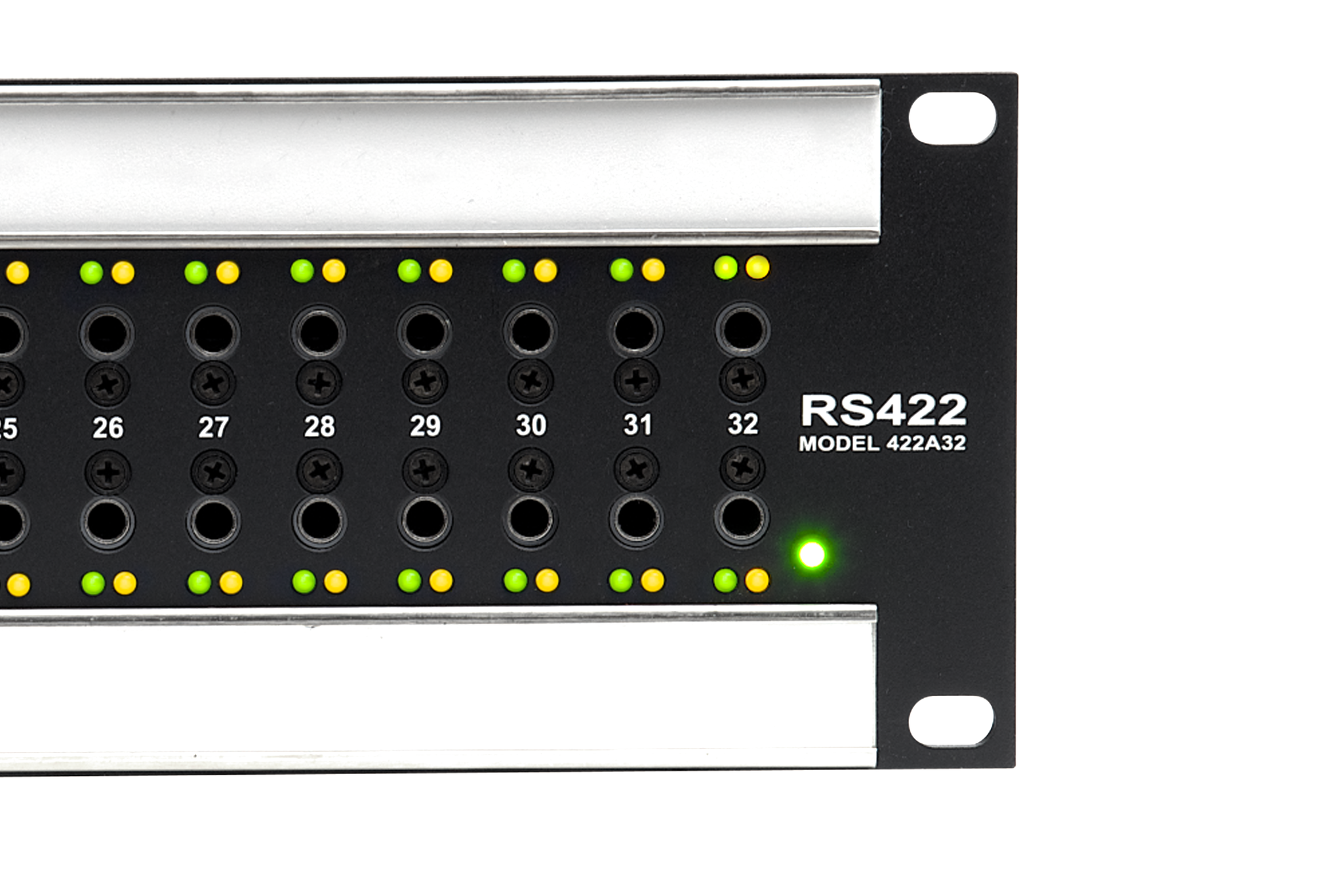

    • Color-coded LEDs make it easier to route, verify and diagnose RS-422 signals
    • Auto-sensing transceivers transmit perfectly regenerated RS-422 signals for longer cable runs
    • Rear port auto-senses/auto-configures for master or remote operation
    • Uses reliable TT (Bantam) audio jacks and patch cables

    TT (Bantam) Jack Properties:
    • Rated to 30,000 minimum insertion cycles
    • Copper-nickel-silver alloy leaf springs with gold-alloy cross bar switching contacts and nickel-plated sleeve bushings
    • Rugged nickel-plated, cold-rolled steel box-frame construction

    Panels Features:
    • 3/16” (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
    • Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
    • 2 x DS800-15 designation strips (extruded aluminum bars with clear plastic snap-over caps)

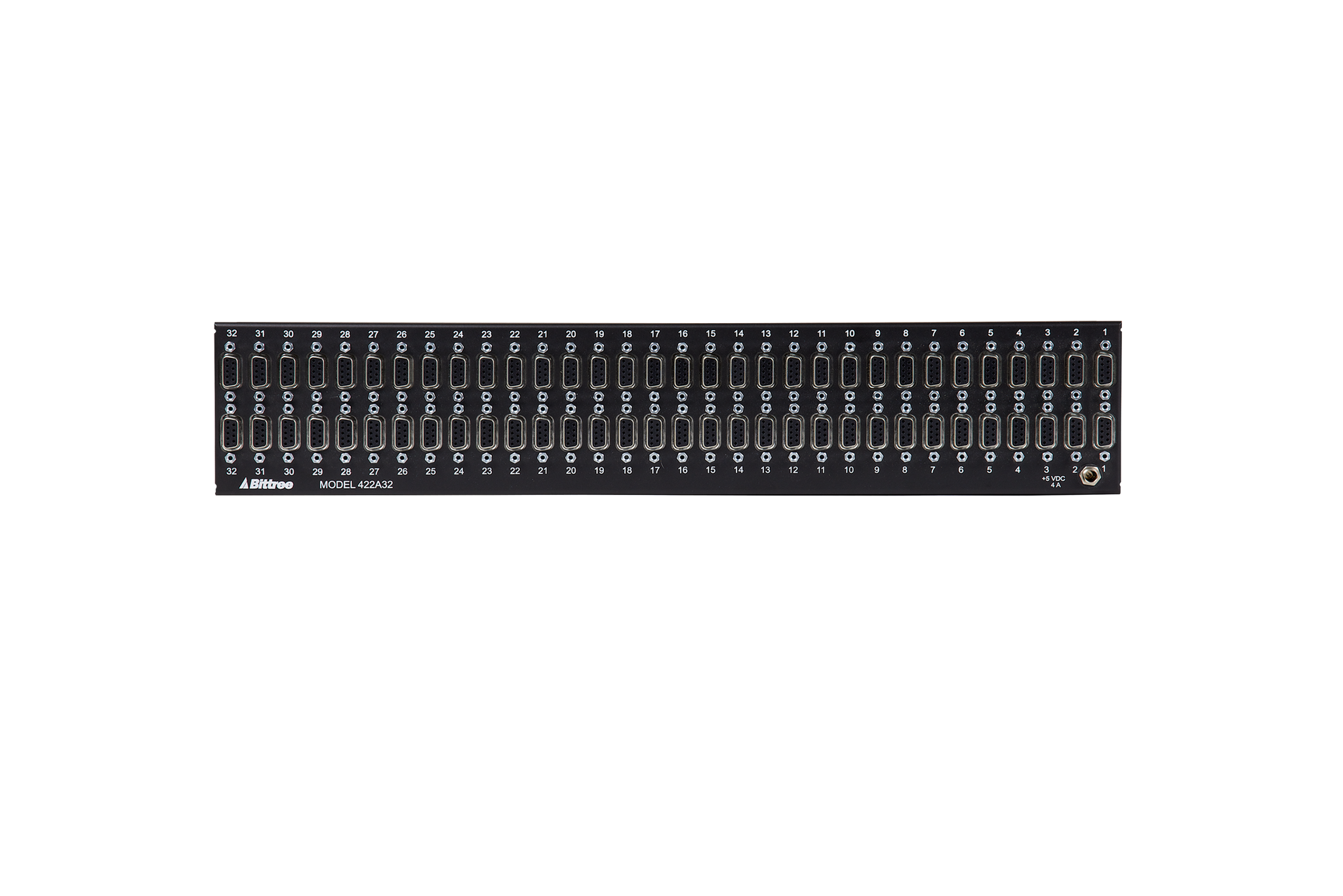

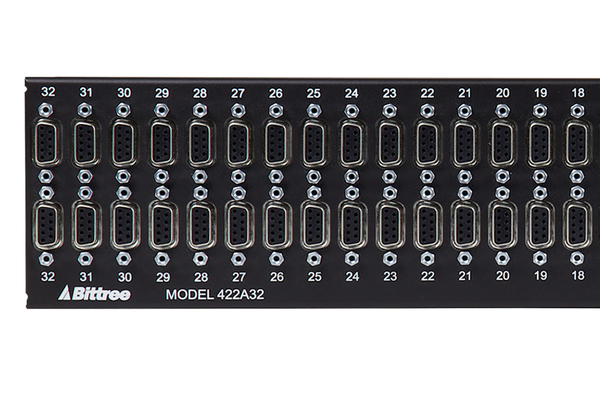

    • DE-9 rear interface

    • Power Supply – Single power supply standard; optional secondary redundant power supply available for on-air applications

    • RoHS Compliance – See our RoHS compliance statement to learn more



  • Product Files:
    User Guide Coming Soon
    Circuit Schematics Coming Soon
    Designation Strip Template Coming Soon
    Technical Drawings:
    422A32 DWG PDF
    422A32-D DWG PDF
