B48DC-FNOST/E3 M2OU12B

481 Normals Out - 2x24 2RU 1/4 inch Long-Frame Patchbay

Continue Shopping or Checkout

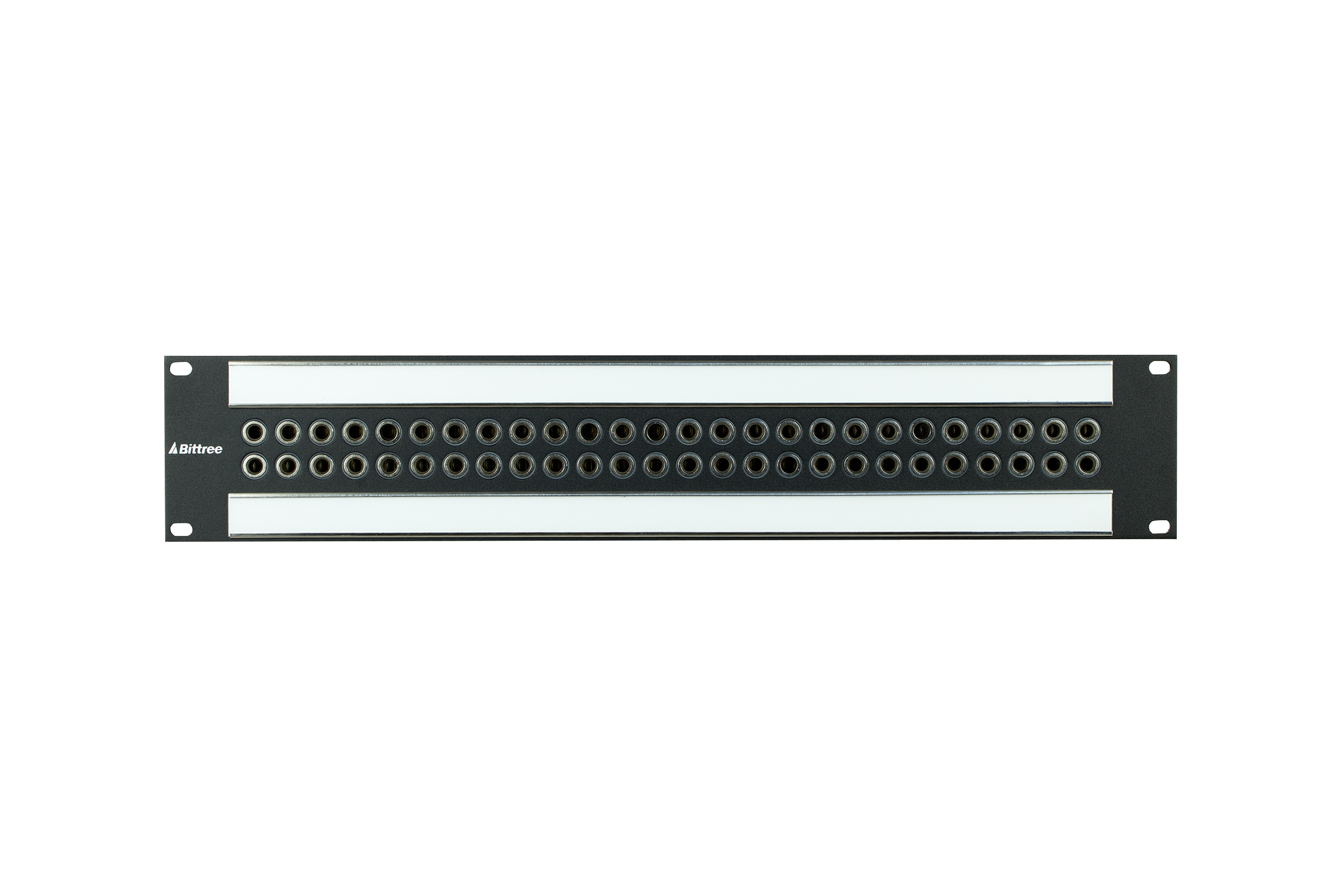

  • Bittree® TT (Bantam) 481 Normals Out Patchbay in 2RU
    • High-density 2x24 jack configuration with mono (even) jack spacing
    • Digital AES wire used for internal wiring
    • 2 x DS870-10-ASSY designation strip assemblies, "Over/Under" orientation

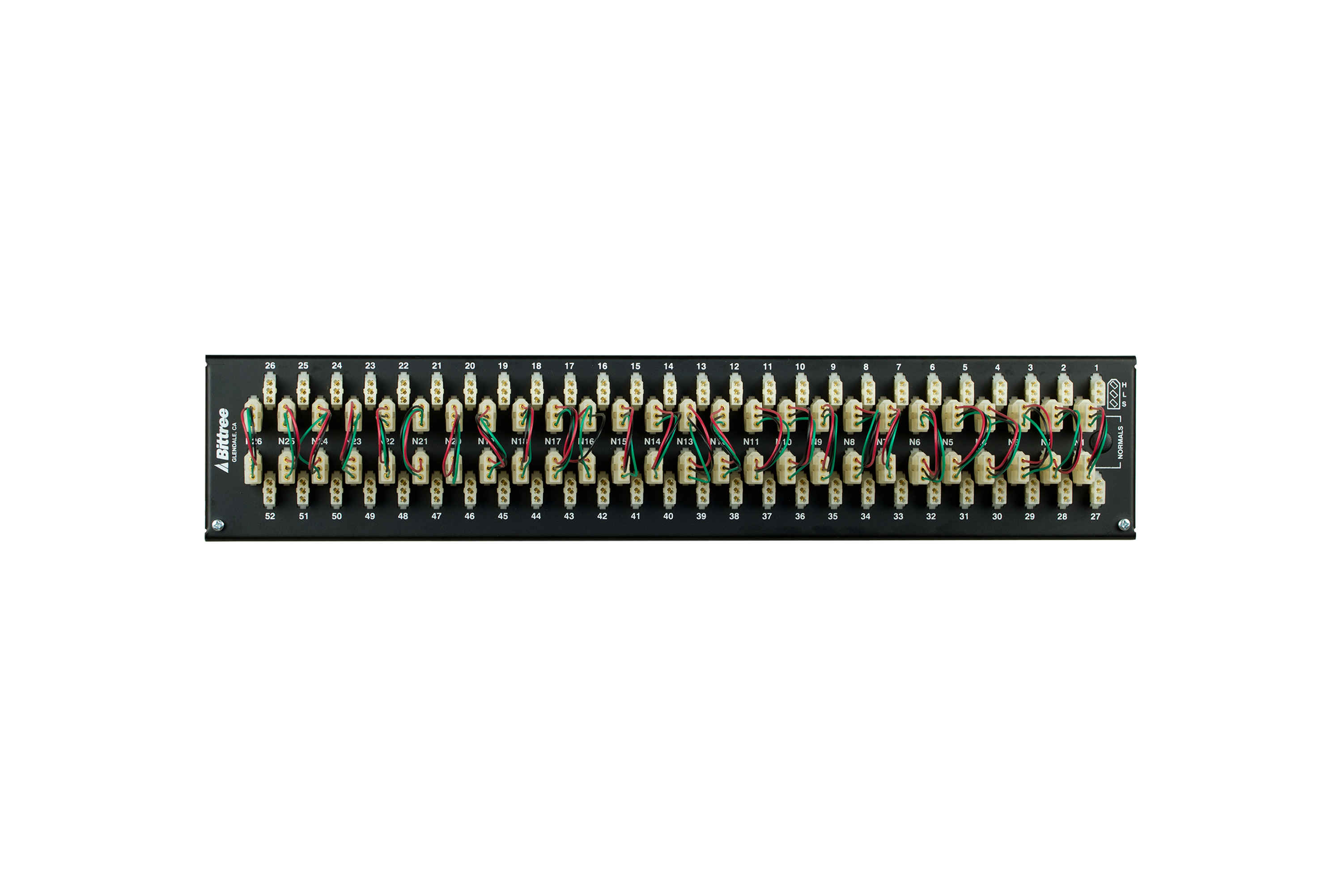

    • Mating hardware included with E3 rear interfaces

    Options
    • Rear Interface – choose from four standard rear interfaces:
    • Chassis Depth:
    - 12" (30.48 cm) deep, fully enclosed

    Compliance
    • RoHS Compliance – See our RoHS compliance statement to learn more



  • Product Files:
    Circuit Schematics PDF
    Designation Strip Template DOCX
    E3 Rear Interface - Technical Drawings:
    B96DC-FNOST/E3 M2OU12B DWG PDF
    B96DC-HNOST/E3 M2OU12B DWG PDF
    B96DC-FNOIT/E3 M2OU12B DWG PDF
    B96DC-HNOIT/E3 M2OU12B DWG PDF
    B96DC-FNOLT/E3 M2OU12B DWG PDF
    B96DC-HNOLT/E3 M2OU12B DWG PDF
    B96DC-FNOBT/E3 M2OU12B DWG PDF
    B96DC-HNOBT/E3 M2OU12B DWG PDF
