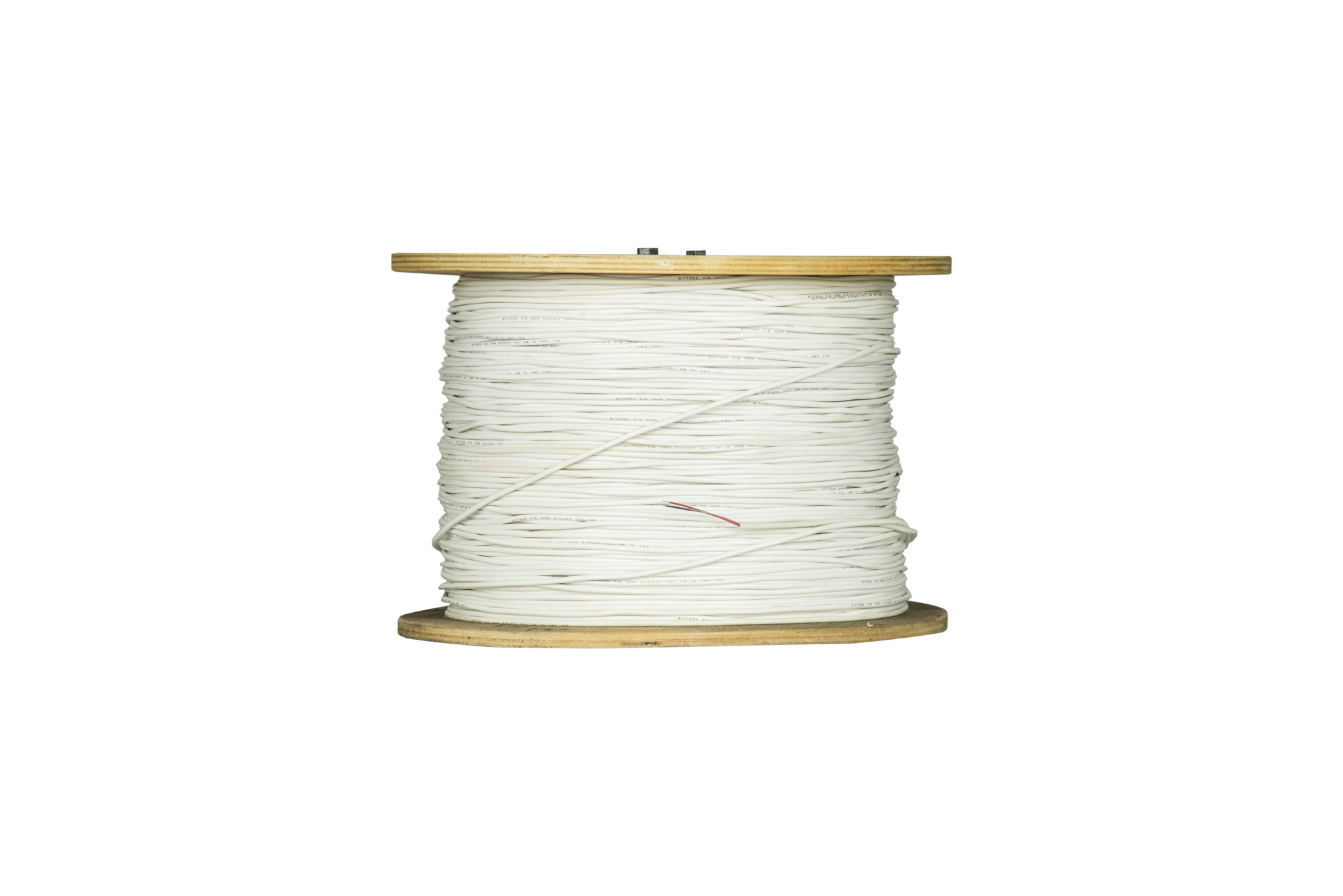

Raw Cable: 1 pair, 26 AWG, analog, 0.100 in. OD, White

2609

Continue Shopping or Checkout

Raw Analog Cable

Product Features:

  • Conductor:  Stranded, 26 AWG (7x34 AWG)
    • Nom. DCR:  37.8 ohms/Mft (124 ohms/km)
  • O.D. 0.100 Inch (2.54 mm)
  • Insulation:  0.008 Inch (0.203 mm PE)
  • Pair Shield:  100% Alum/Polyester tape
  • Pair Drain Wire:  Stranded, 26 AWG (7x34 AWG)
    • Nom. DCR:  37.8 ohms/Mft (124 ohms/km)
  • Jacket:  White PVC
  • Nom. Capacitance:  28 pF/Ft (92 pF/m) between conductors, 52 pF/Ft (172 pF/m) between one conductor and other conductor connected to shield
  • Sold by the foot
