12G+ 4K and 8K Mini-WECo Video Patchbay Jack Modules

1MWNBK/S-L

$ 43.00

Continue Shopping or Checkout
  • Bittree® 12G+ 4K and 8K Mini-WECo Video Patchbay Jack Modules
    • 24GHz high-bandwidth performance for SD/SDI, HD/SDI, UHD/SDI, 4K, 8K, and HDR applications
    • SMPTE 292M, 424M, 2081-1, and 2082-1 compliant

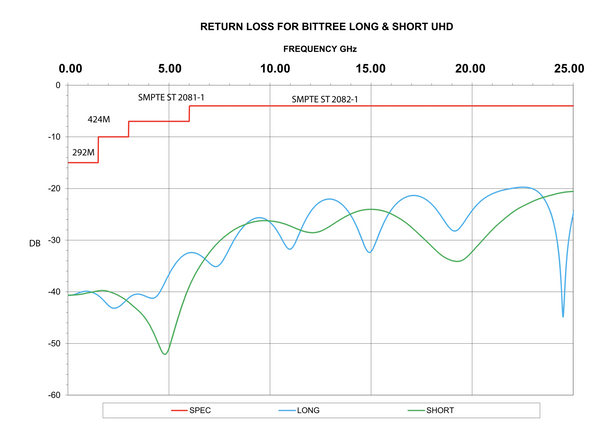

    • True 75 ohm impedance with low return loss
    • Staggered BNC Rear Interface
    • Jack module mounting screw stabilizes jack in all operating environments
    • Life cycle: 30,000 insertion/removal cycles minimum

    Options
    • Available Modules:
    - 1MWNBK/S-L:  single body, long jack, non-normal, non-terminating
    - 1MWNBK/S-S:  single body, short jack, non-normal, non-terminating

    Compliance
    • RoHS Compliance – See our RoHS compliance statement to learn more

  • Product Files:
    Circuit Schematics PDF
    Technical Drawings:
    1MWNBK/S-L DWG PDF
    1MWNBK/S-S DWG PDF

Category: 12 GHz, 12G SDI, 12G+, 12GHz, Accessories, jacks, Mid-size, Mini-WECO, Mini-WECO (midsize), single-body, single-link, straight-through, Video

Type: Accessories
