12G+ Mini-WECO (Midsize) Video Patchbay, 1x32, 1 RU

Continue Shopping or Checkout

  • Bittree® 12G+ Mini-WECO (Midsize) Video Patchbay in 1.5 RU with 2x32 Jack Configuration

    12G+ Mini-WECO Video Jack Properties:
    • 24 GHz high-bandwidth performance for SD/SDI, HD/SDI, UHD/SDI, 4K, 8K, and HDR applications
    • Single link compatible
    • SMPTE 292M, 424M, 2081-1, and 2082-1 compliant

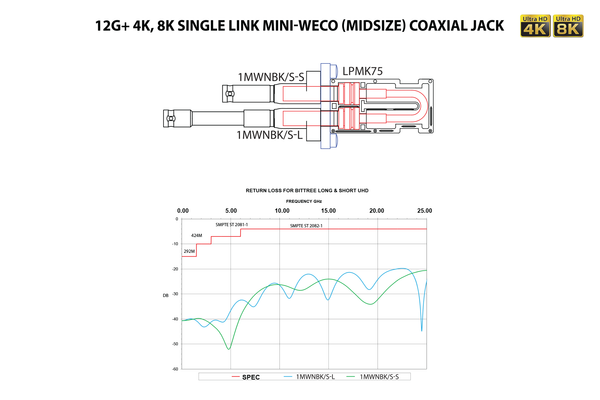

    • True 75 ohm impedance with low return loss
    • Life Cycle Rating:  30,000 cycles

    Panel Features:
    • 3/16" (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
    • Rear-mounted jack modules
    • Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
    • 1 x DS800-10 Designation Strip:
    - Stainless-steel slider with white styrene and non-glare Lexan inserts
    • Staggered BNC Rear Interface

     • Termination can be achieved through the use of termination plugs

    • RoHS Compliance – See our RoHS compliance statement to learn more



  • Product Files:
    Data Sheet Coming Soon
    Circuit Schematics Coming Soon
    Designation Strip Template DOCX
    Technical Drawings:
