BH-B124A1B12

12G+ BNC Coaxial Bulkhead Patch Panel, 1x24, 1 RU

Continue Shopping or Checkout

  • Bittree® 12G+ BNC Coaxial Bulkhead Panel in 1 RU Height with 1x24 Jack Configuration

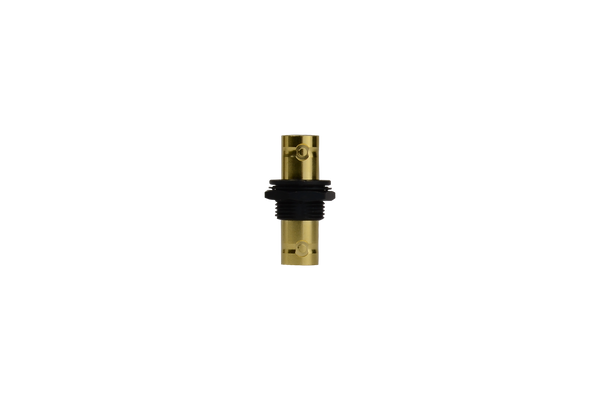

    BNC Jack Properties:
    • 20 GHz high-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s, 3D, UHD, 4k, and 8K applications
    • SMPTE 292M, 424M, 2081-1, and 2082-1 compliant
    • 75 ohm impedance with low return loss
    • 500 Mating cycles
    • Operating temperature: -35 to +165°C
    • IP64 (mated)

    Panel Features:
    • 1/16” (0.062 in. / 1.57 mm) folded aluminum with a durable black powder-coat finish
    • BNC connectors on both the front and back of the panel
    • Silk screened circuit numbering on the front with optional designation strip available

    Options:
    • Front Panel Circuit Identification:
    - Silk screened numbering only, or
    - 1 x DS580-20 Designation Strip (stainless-steel slider with white styrene and non-glare Lexan inserts)

    Compliance:
    • RoHS Compliance – See our RoHS compliance statement to learn more

  • Product Files:
    Circuit Schematics Coming Soon
    Designation Strip Template Coming Soon
    Technical Drawings:
    BH-B124A1B12 DWG PDF
    BH-B124A0B12 DWG PDF
