CVP3508

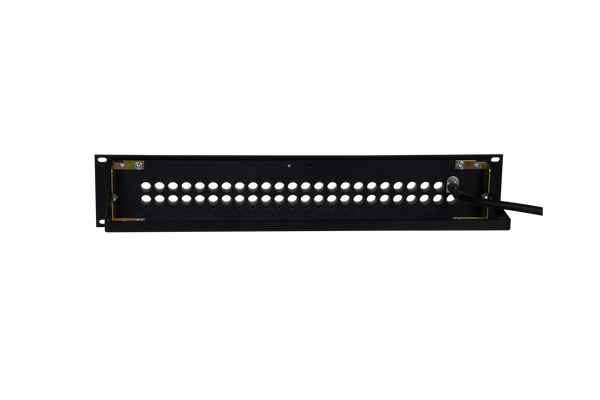

Mini-Triax Bulkhead Patchbay Kit, 2x24, 2RU, 35 I/O

Continue Shopping or Checkout

  • Mini-Triax Bulkhead Patchbay Kit, 2x24, 2 RU, 35 I/O

    Mini-Triax Video Jack Properties:
    • High velocity of propagation with a 3 GHz bandwidth for SD/SDI, HD/SDI, 3 Gb/s and 3D applications
    • SMPTE 259M, 292M and 424M compliant
    • Gold-plated center pin and inner shield contact
    • True 75 ohm impedance with low return loss
    • Straight-through non-normalling, non-terminating

    Panel Features:
    • 3/16"" (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish

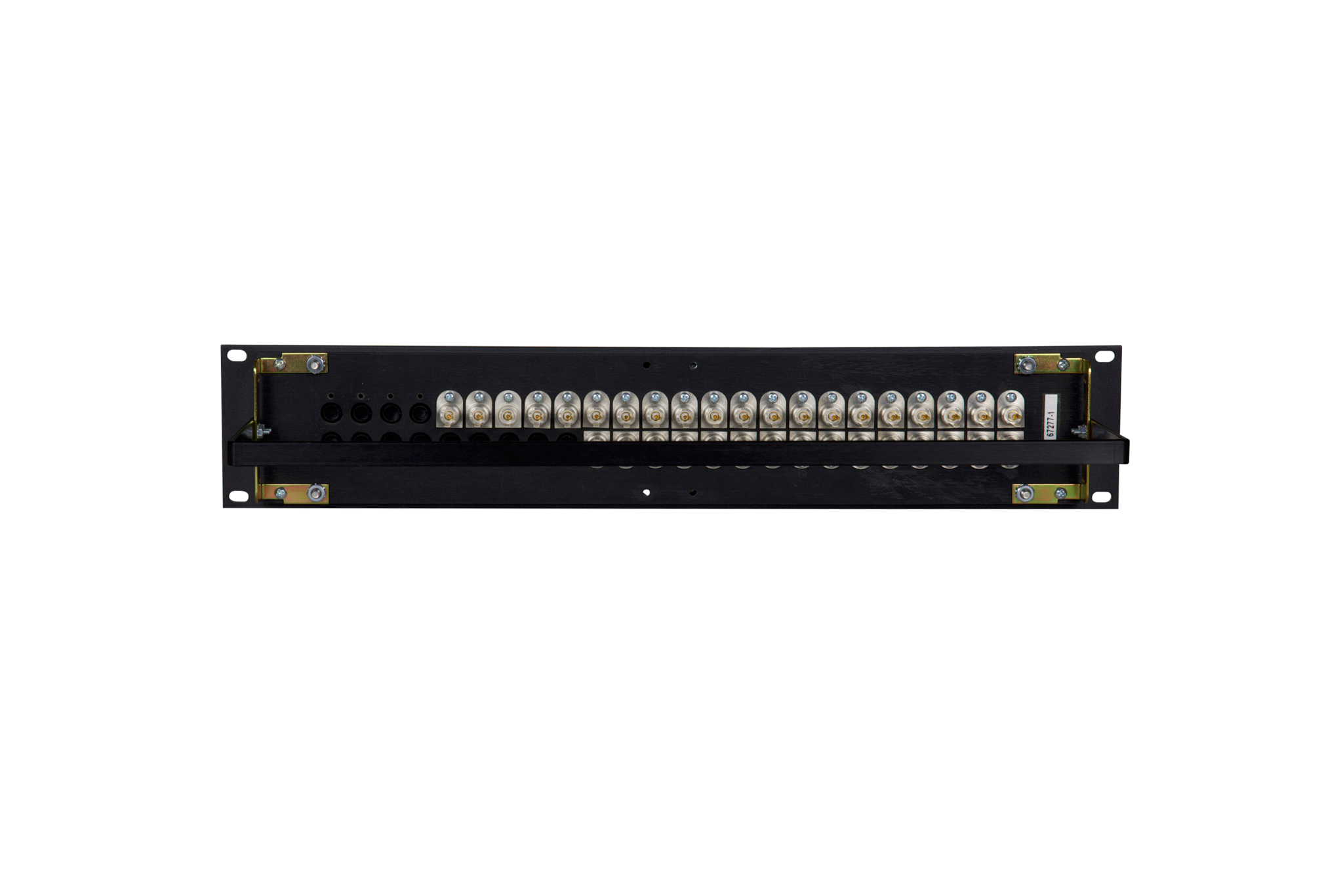

    • Rear-mounted jack modules
    • Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
    • 2 x DS870-10 Designation Strips:
      - Stainless-steel sliders with white styrene and non-glare Lexan inserts
    • 6" (15.24 cm) deep rear lacing bar included

    Cable Features:
    • Durable gas-injected foam polyethylene dielectric resists damage due to crushing
    • Two isolated copper braids (shields) provide outstanding RF/EMI shielding Kit components include:
    • 35 x CCAJ7230 - Mini triax jack soldered to blunt cut cable; 0.360"" (9.14 mm) OD, 30 ft. (9.144 m) length
    • 13 x BITWPLUG - Hole plugs for remaining unpopulated positions
    • 35 x Jack mounting screws
    • Components packaged separately for easy integration

    Options:
    • Front Panel Color – Black or Gray scratch resistant powder-coat finish
    • Cable Length – Custom lengths available
    • Cable Diameter – Other cable diameters available

    Compliance:
    • RoHS Compliance – See our RoHS compliance statement to learn more





  • Product Files:
    Circuit Schematics Coming Soon
    Designation Strip Template XLSX
    Technical Drawings:
    CVP3508 DWG PDF
