DABFX Video Distribution Amplifier Card
$ 981.00
-

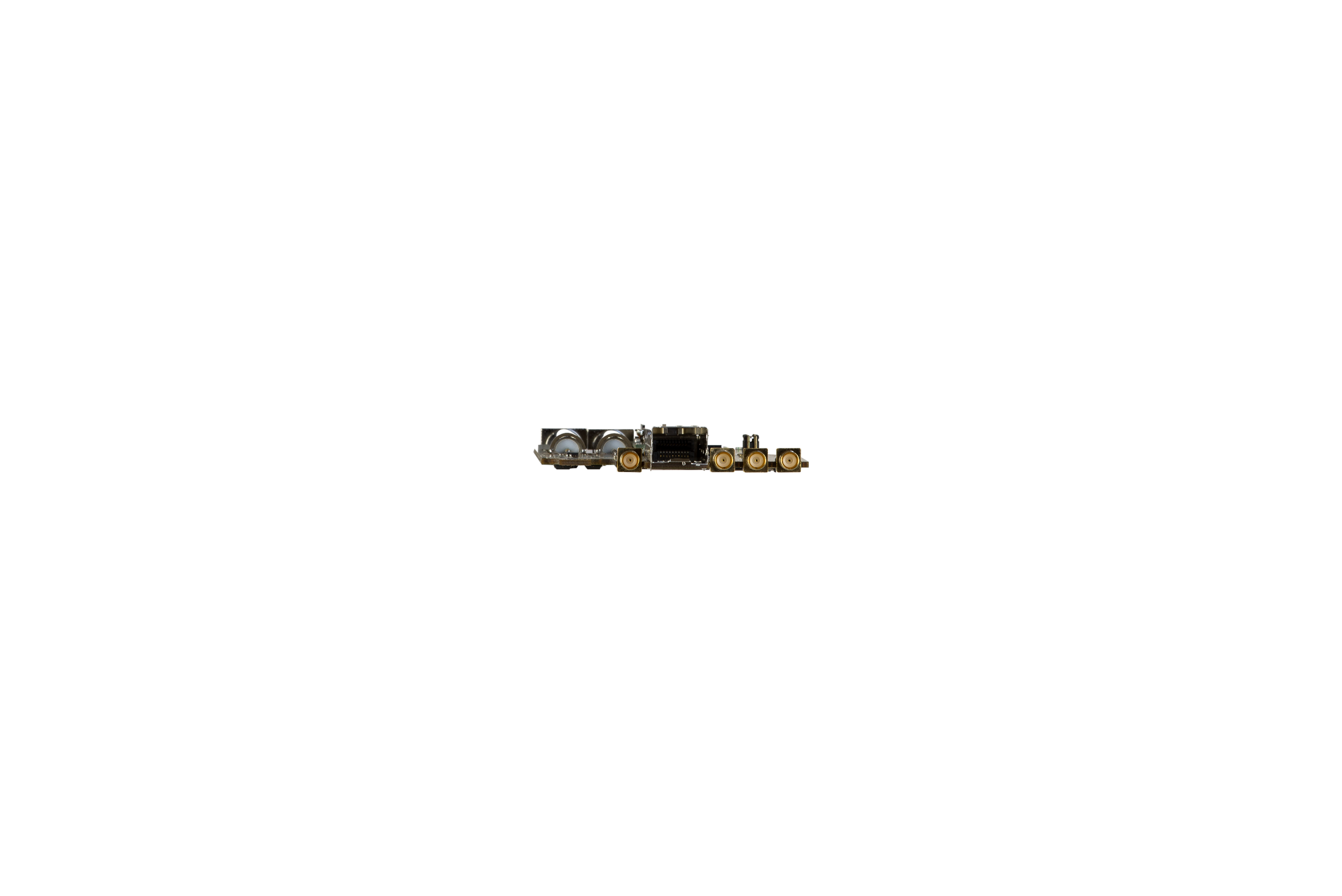

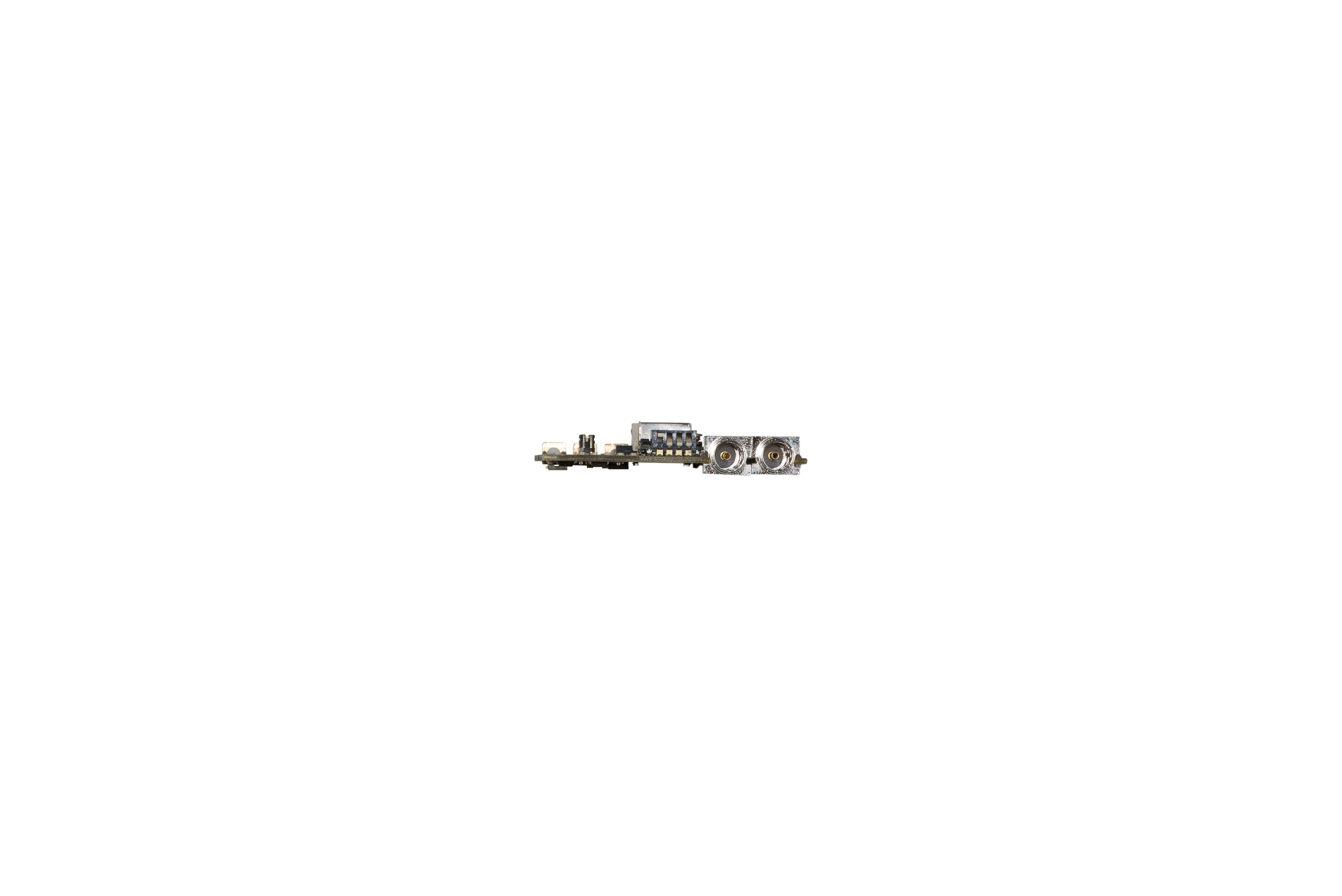

Bittree® DABFX Video Distribution Amplifier Card (DA)
For use with DAF32FX Video Distribution Frame (sold separately)
DABFX Video Distribution Amplifier Card (DA)
Technical Specifications:
• 1 in x 4 out
• Half normaling source jack
• DA input jack
• Copper or Fiber in (w/optional SFP)
• Copper and Fiber out (w/optional SFP)
• Hybrid Capable of being IP Host to Digital Video (w/optional SFP)
• Auto equalizing
• Multi-rate reclocking up to 12Gb/s
• Supports all HD/SD formats
• Supports AES & Madi
Input
• Number of Inputs 1
• Input Connection DIN 1.0/2.3 or Fiber/Copper (w/optional SFP)
• Input Impedance 75 Ohm
• Input Return Loss > 15dB to 1.5GHz
> 10dB to 3GHz
> 5dB to 12GHz
• Signal Level 800mV +/-10%
Output
• Outputs 3 Coax, 1 Fiber
• Output Connection Din or Fiber/Copper (w/optional SFP)
• Output Impedance 75 Ohm
• Output Return Loss > 15dB to 1.5GHz
> 10dB up to 3GHz
> 5dB to 12GHz
Performance
• Standards SMPTE 424M, 292M, 259M, 344M, ST2081, ST2082, ST2110
• MSA standard SFP pinout
- Non MSA standard SFP pinout available upon request
- Note: All dual input or output SFP's are non MSA standard
- Recommend medium haul 10KM fiber SFP non reclocking type
• Data Rates 143, 177, 270, 360, 540,1485, 2970, 5940, 11880 Mb/s
• Max Cable Length @ 11.88 GHz
- Belden 4855R 149FT / 45M
- Belden 4505R 208FT / 63M
- Fiber cable length dependant on SFP and fiber type utilized
• Equalization Mode Automatic Multi-Rate Reclocking
• Signal Level 800mV Nominal
• DC Offset 0V +/-0.5V
• Rise & Fall Time 200ps nominal
• Overshoot < 10% of amplitude
• Wideband Jitter < 0.1 UI @ 3G
