B96S-2MVTHD

High-Density Micro-Video, 2x48, 1 RU

Continue Shopping or Checkout

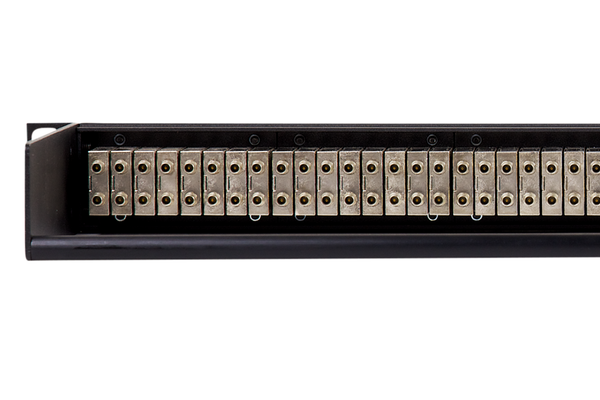

  • Bittree® Micro-Video Patchbay in 1 RU Height with 2x48 Jack Configuration

    Micro-Video Video Jack Properties:
    • High-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s and 3D applications
    • SMPTE 259M, 292M and 424M compliant
    • True 75 ohm impedance with low return loss

    Panel Features:
    • 1/16" (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
    • Front panel can be recessed 1” into the rack to reduce patch cable protrusion
    • Jack module mounting screws captive to the front panel
    • Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
    • 2 x DS430-10 Designation Strips:
    - Extruded aluminum bars with clear plastic snap-over caps
    • Lacing/Tie Bar: Integrated 7” (177.8 mm) removable lacing bar for cable dressing
    • DIN 1.0/2.3 Rear Interface

    Options:

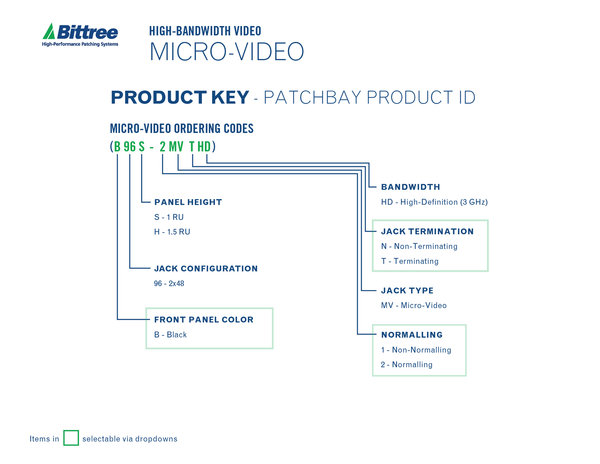

    • Micro-Video jacks may be ordered as:
    - Dual body, self-normalling with 75 ohm termination (2MVTHD/S)
       - Dual body, self-normalling, non-terminating (2MVNHD/S)
    - Dual body, non-normalling (straight-through) with 75 ohm termination (1MVTHD/S)
    - Dual body, non-normalling (straight-through), non-terminating (1MVNHD/S)

    Compliance:
    • RoHS Compliance – See our RoHS compliance statement to learn more





  • Product Files:
    Circuit Schematics Coming Soon
    Designation Strip Template XLSX
    Technical Drawings:
    B96S-2MVTHD DWG PDF
    B96S-2MVNHD DWG PDF
    B96S-1MVTHD DWG PDF
    B96S-1MVNHD DWG PDF
