Bittree® Mini-WECo 3GHz Video Patchbay Jack Modules
• 3GHz high-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s and 3D applications
• SMPTE 259M, 292M, and 424M compliant
• True 75 ohm impedance with low return loss
• Staggered BNC Rear Interface
• Jack module mounting screws stabilize jack in all operating environments
• Robust nickel-plated zinc alloy housing
• Life cycle: 30,000 insertion/removal cycles minimum
Options
• Available Modules:

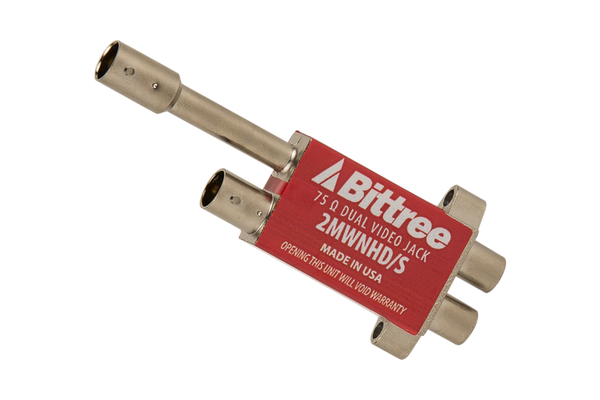

- 2MWTHD/S: dual body, normalled, with 75 ohm termination
- 2MWNHD/S: dual body, normalled, non-terminating
- 1MWTHD/S: dual body, non-normal, with 75 ohm termination
- 1MWNHD/S: dual body, non-normal, non-terminating
-
| Product Files: |
| Circuit Schematics |
PDF |
| Technical Drawings: |
| 2MWTHD/S |
DWG |
PDF |
| 2MWNHD/S |
DWG |
PDF |
| 1MWTHD/S |
DWG |
PDF |
| 1MWNHD/S |
DWG |
PDF |
